TARPA LWT Portable High Frequency Welder for Large Structures
A compact, portable HF welder you move to the work, for reinforcement welds on large tarpaulins, tents, tensile structures, pool liners and oil booms. Built in Poland and supplied, installed and supported across India by Magnum Resources.
Portable
Move to the Work
10-inch HMI
Touch Control
Up to 1000
Weld Recipes
Poland
Country of Origin
16-20 weeks
Typical Lead Time
CE / ISO 17025
EMC Build Standard
Factory-Backed
Install & Training
Overview
About this machine
What the TARPA LWT makes

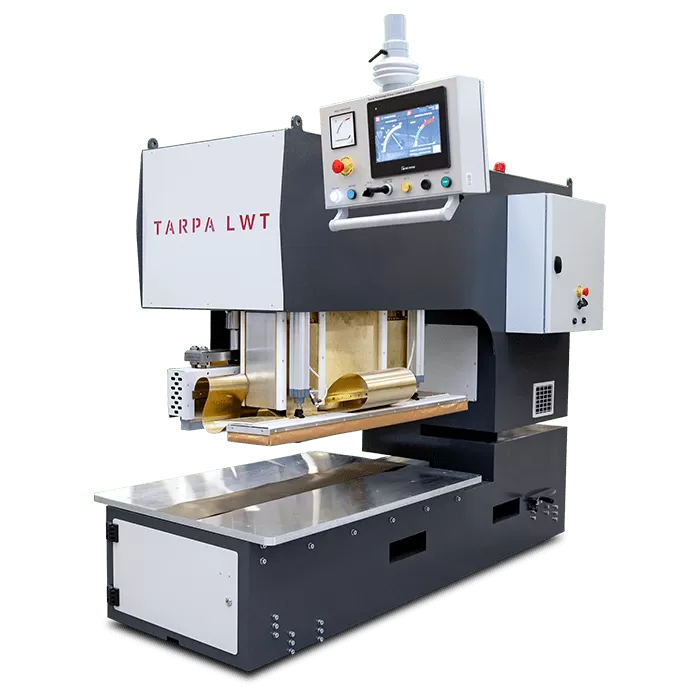

The Zemat TARPA LWT is a portable HF welder for large-format technical textiles. Rather than feeding a huge sheet through a fixed machine, you bring the TARPA LWT to the part and weld reinforcement seams and special joins in place. It is used on tarpaulins, tents, tensile structures, shade systems, truck covers and side curtains, swimming pool liners and covers, oil booms, flood dams, water tanks, airport hangars, portable storage structures, containment pools and ground liners.
Buyers call it a portable HF welder, a mobile high frequency welder, or a tarpaulin welding machine. It complements a larger welder by handling the welds that are awkward to reach on big structures.
Built to move to the work
The machine is deliberately compact and light, with optional wheels and remote control so an operator can position it wherever a weld is needed. A magnetic stainless steel table holds the fabric, the QuickGrip tooling mount changes electrodes quickly, and the welding electrode can run along or across the machine depending on the model. A 10-inch colour HMI with PLC, WCS weld control and ATS autotuning runs the cycles.
What high frequency welding can and cannot join
HF welding works on polar thermoplastics: PVC and PU coated technical textiles, the materials tarpaulins, tents, liners and booms are made from. It does not weld non-polar plastics such as polypropylene (PP) or polyethylene (PE).
Who the TARPA LWT is built for in India
- Large tarpaulin and cover makers: reinforcement welds on big tarpaulins and truck covers.
- Tent and tensile structure fabricators: on-the-spot welds on large membranes and structures.
- Pool liner, oil boom and water tank makers: special joins on large containment products.
Why source the TARPA LWT through Magnum Resources
Magnum Resources is the authorised India partner for Zemat Technology Group. We size the tooling with the factory for your fabrics and welds, manage import and customs, and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Manufacturer reference: Zemat TARPA LWT portable high frequency welder, official specification.
Built For
Who the TARPA LWT is built for in India
A portable HF welder you move to the work, for reinforcement welds on large tarpaulins, tents, tensile structures and pool liners. Find your fit below.

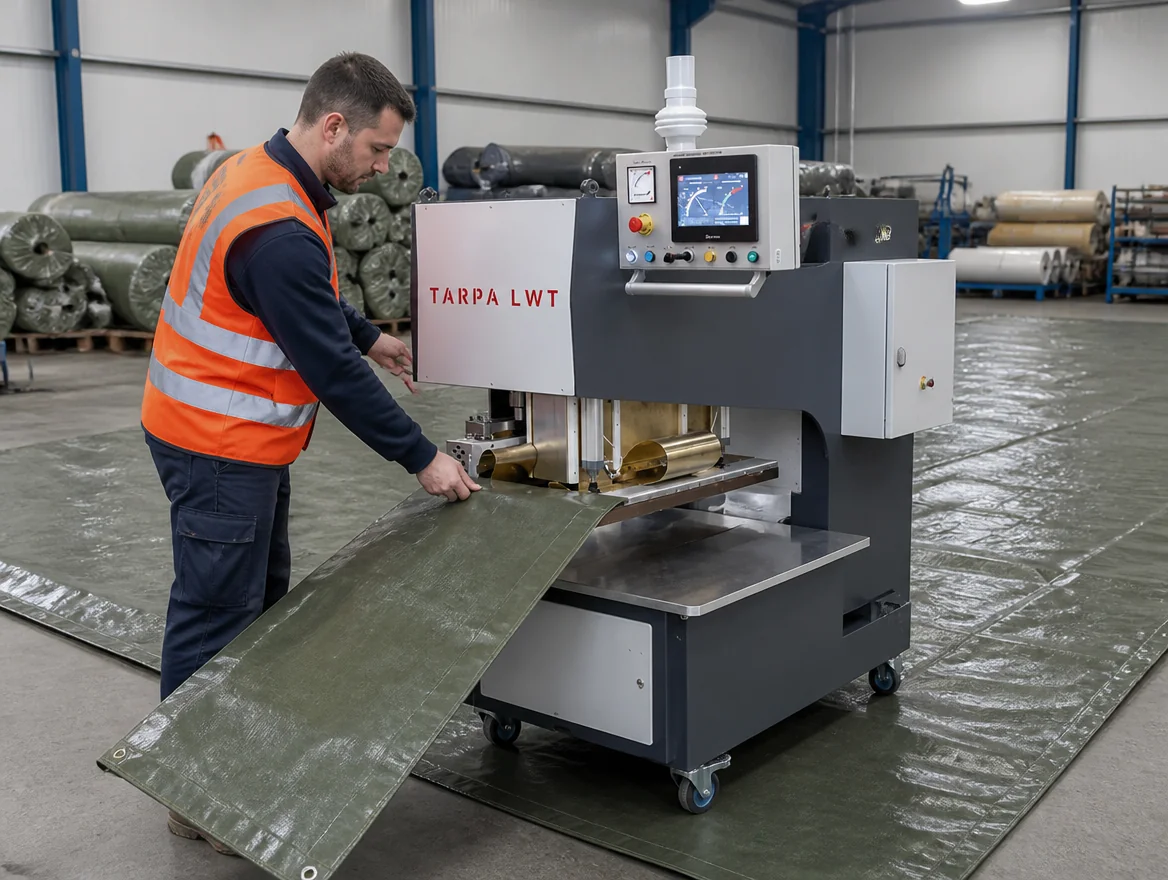

Large Tarpaulin & Cover Makers
Take the welder to the work for reinforcement welds on big tarpaulins, truck covers and side curtains.
Pool Liner, Oil Boom & Water Tank Makers
Weld special joins and reinforcements on large pool liners, oil booms, flood dams and water tanks.
Tent & Tensile Structure Fabricators
Make on-the-spot welds on large tents, membranes and tensile structures without moving the whole sheet.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.
Request Full DatasheetMachine
Type
Portable / movable HF welder
Work Table
Magnetic stainless steel
Tooling
QuickGrip tooling mount
Electrode Direction
Along or across the machine (model dependent)
Mobility
Optional wheels and remote control
Control
Interface
10-inch colour touch screen HMI with PLC
Recipes
Up to 1000 weld recipes
Systems
WCS Weld Check, ATS autotuning, AntiFlash, FREEWeld
Remote
ZTG iCOM VPN client and VNC server
Capability & Materials
Output
Reinforcement welds on tarpaulins, tents, tensile structures, pool liners, oil booms, hangars, ground liners
Materials
PVC and PU coated technical textiles
Safety & Compliance
Safety
ZTG SafeDown, ZTG AntiFlash, grid filter, safety guards
Compliance
CE, EMI, OSHA, FCC rated; ISO 17025 EMC testing available
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
Portable
Take It to the Work
Instead of feeding a huge sheet through a fixed machine, one operator moves the welder to the weld, which is faster for big structures.
Large-Structure
Reach
It reaches reinforcement seams on tarpaulins, tents, liners and booms that are awkward to weld on a fixed table.
One Operator
Quick Setup
A magnetic table, QuickGrip tooling and optional wheels let a single operator set up and weld wherever needed.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Machine
Factory-tested and EMC-checked at the Zemat plant before dispatch
Import & Customs
Sea freight and customs clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with factory-backed engineers
Operator Training
On-site run-in and operator training at start-up
Factory-Supplied Spares
Electrodes and wear parts sourced to order from Zemat
Technical Support
Remote VPN diagnostics and factory-backed support after start-up
Buying Through Magnum
One accountable partner, end to end
Magnum Resources is the authorised India partner for Zemat Technology Group. We size the tooling with the factory for your fabrics and welds, manage import and customs, install it on your floor and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Authorised India Partner
A direct link to the Zemat factory for specification, tooling and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
Factory-backed engineers install the machine and train your operators in person.
Factory-Supplied Spares
Genuine electrodes and wear parts sourced directly from Zemat.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
Magnetic stainless steel work table to hold large fabric in place
QuickGrip tooling mount for fast electrode changes
Welding electrode runs along or across the machine depending on model
10-inch colour touch screen HMI and PLC with up to 1000 recipes
WCS Weld Check System and ATS autotuning with AntiFlash protection
Optional wheels and remote control for easy positioning
ZTG iCOM VPN remote control; fully CE compliant and EMI, OSHA and FCC rated

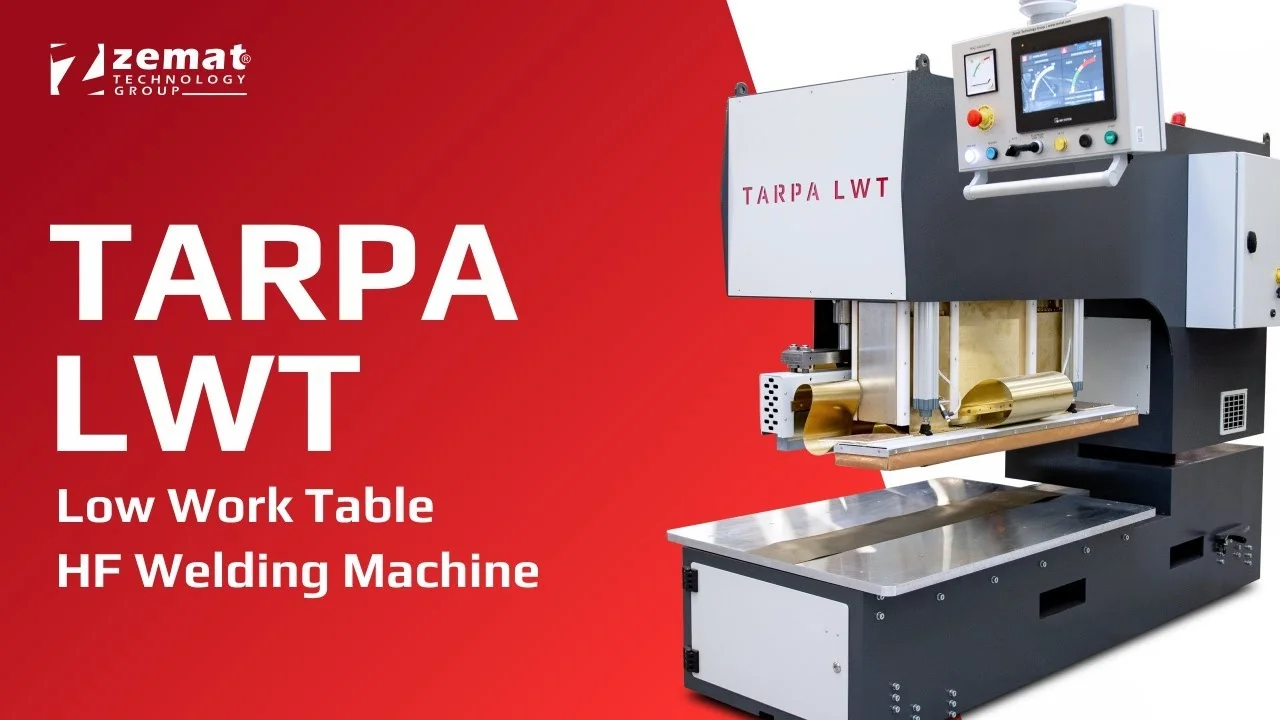

Watch It Run
See it in action
Real footage from installed sites and OEM demonstrations.
Documentation
Technical downloads
Brochures, datasheets and CAD files, available on request.
FAQs
Questions Indian buyers ask us
Real questions from our last 50 enquiries, answered upfront.
The TARPA LWT is a portable HF welder for reinforcement welds and special joins on large technical-textile structures: tarpaulins, tents, tensile structures, truck covers, pool liners, oil booms, water tanks, hangars and ground liners. Instead of feeding a huge sheet through a fixed machine, you move the TARPA LWT to the part.
Large structures often have welds that are awkward to reach on a fixed table, and moving a big sheet around is slow and needs several people. A compact, movable welder lets one operator take the machine to the weld, which is faster for reinforcement seams and repairs on big products. It complements rather than replaces a large fixed welder.
The TARPA LWT welds polar thermoplastics: PVC and PU coated technical textiles, which is what tarpaulins, tents, liners and booms are made from. It does not weld non-polar plastics such as polypropylene (PP) or polyethylene (PE).
Yes. It is built to be powerful yet compact and lightweight, with optional wheels and remote control, a magnetic stainless steel table and QuickGrip tooling, so an operator can position it wherever a weld is needed.
Buyers are large tarpaulin and cover makers, tent and tensile structure fabricators, and pool liner, oil boom and water tank makers who need on-the-spot welds on big structures.
Typical lead time is around 16 to 20 weeks from the Zemat factory in Poland. Magnum manages import, customs, delivery, installation and operator training at start-up, with spares and support afterwards.
