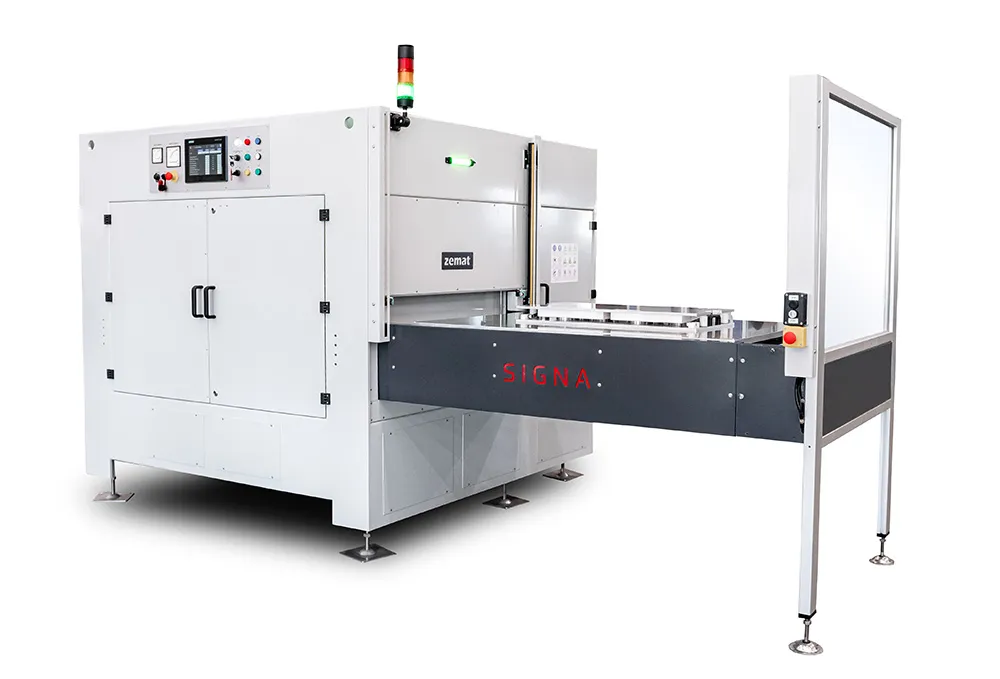

SIGNA TB Dual-Table High Frequency Welder
A dual-table HF welder, 10 to 45 kW, that welds the upper table while the operator loads the lower one, for high throughput in a small floor footprint. Built in Poland and supplied, installed and supported across India by Magnum Resources.
10-45 kW
HF Power Output
Dual-Table
Stacked Shuttle
900×1300 mm
Pressing Plate
Poland
Country of Origin
16-20 weeks
Typical Lead Time
CE / ISO 17025
EMC Build Standard
Factory-Backed
Install & Training
Overview
About this machine
What the SIGNA TB makes
The Zemat SIGNA TB is a high-throughput, space-saving HF welder for serial production of orthoses and rehabilitation equipment, medical containers such as blood and ostomy bags, automotive parts and assemblies, embossing and clamshell plastic packaging. The point of the machine is output per square metre, achieved by stacking two work tables vertically rather than running a long horizontal shuttle.
Buyers describe it as a dual-table HF welder, a high-throughput high frequency welding machine, or a space-saving HF welder.
The dual-table design
The SIGNA TB uses a vertical, stacked twin-table layout. An operator loads material and tooling on the exposed lower table while the upper table cycles into the shielded press and welds. When the upper weld finishes, the tables exchange: the welded upper table cycles out for unloading and the freshly loaded lower table cycles in. This continuous cycle keeps the HF generator welding nearly 100 percent of the time, with one operator, and takes far less floor space than a long horizontal sliding table.
What high frequency welding can and cannot join
HF welding works on polar thermoplastics: PVC, PU, PET, A-PET and PLA films. Integrated heating also supports difficult materials such as PET and some TPUs. It does not weld non-polar plastics such as polypropylene (PP) or polyethylene (PE), so the SIGNA TB converts to a heat sealer for those.
Who the SIGNA TB is built for in India
- Orthosis and rehabilitation equipment makers: high-volume formed medical products.
- Medical bag producers: blood and ostomy bags at serial volume.
- Automotive component suppliers: parts and assemblies where floor space is tight.
- Packaging and embossing producers: clamshell packs and embossed products.
Why source the SIGNA TB through Magnum Resources
Magnum Resources is the authorised India partner for Zemat Technology Group. We size the power and tooling with the factory for your products and floor space, manage import and customs, and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Manufacturer reference: Zemat SIGNA TB high frequency welder, official specification.
Built For
Who the SIGNA TB is built for in India
A space-saving dual-table HF welder for high-throughput medical, automotive and packaging production. Find your fit below.

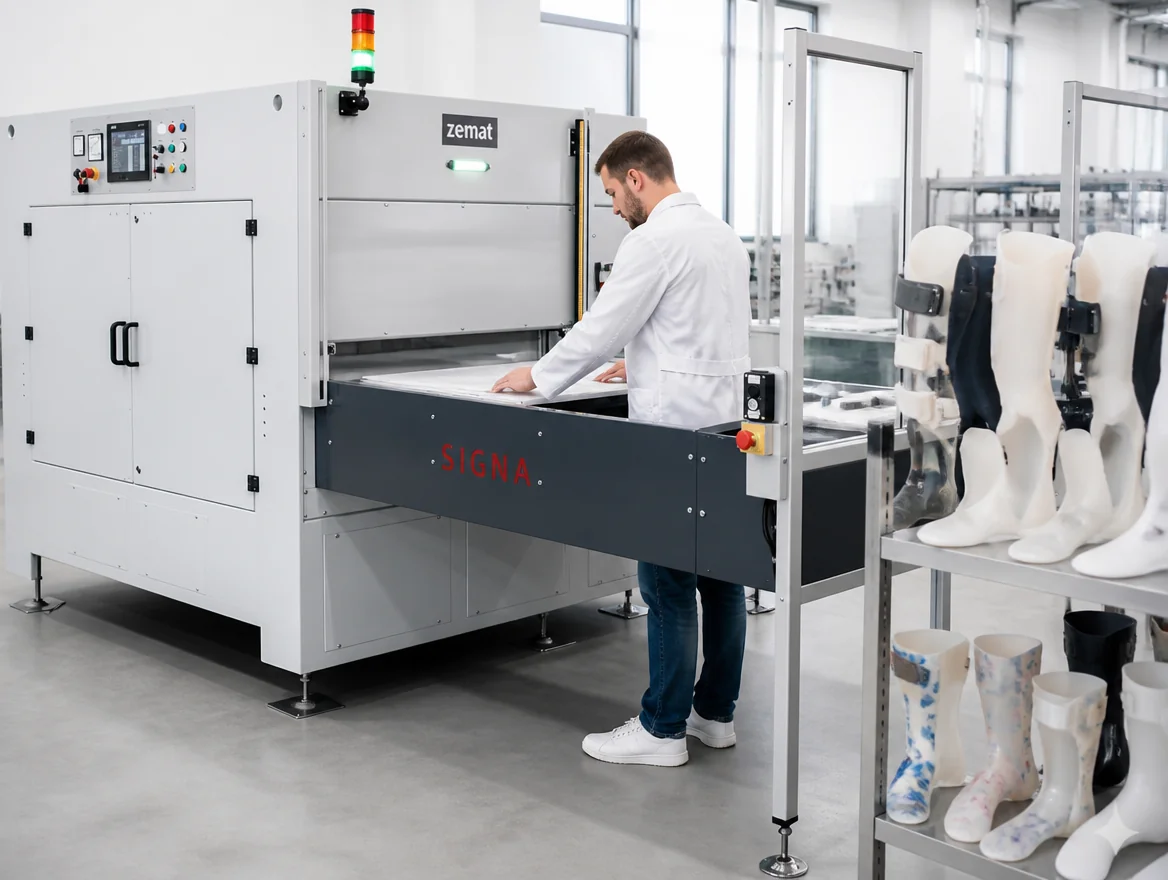

Orthosis & Rehabilitation Equipment Makers
Produce formed orthoses and rehabilitation products at high volume in a compact floor footprint.

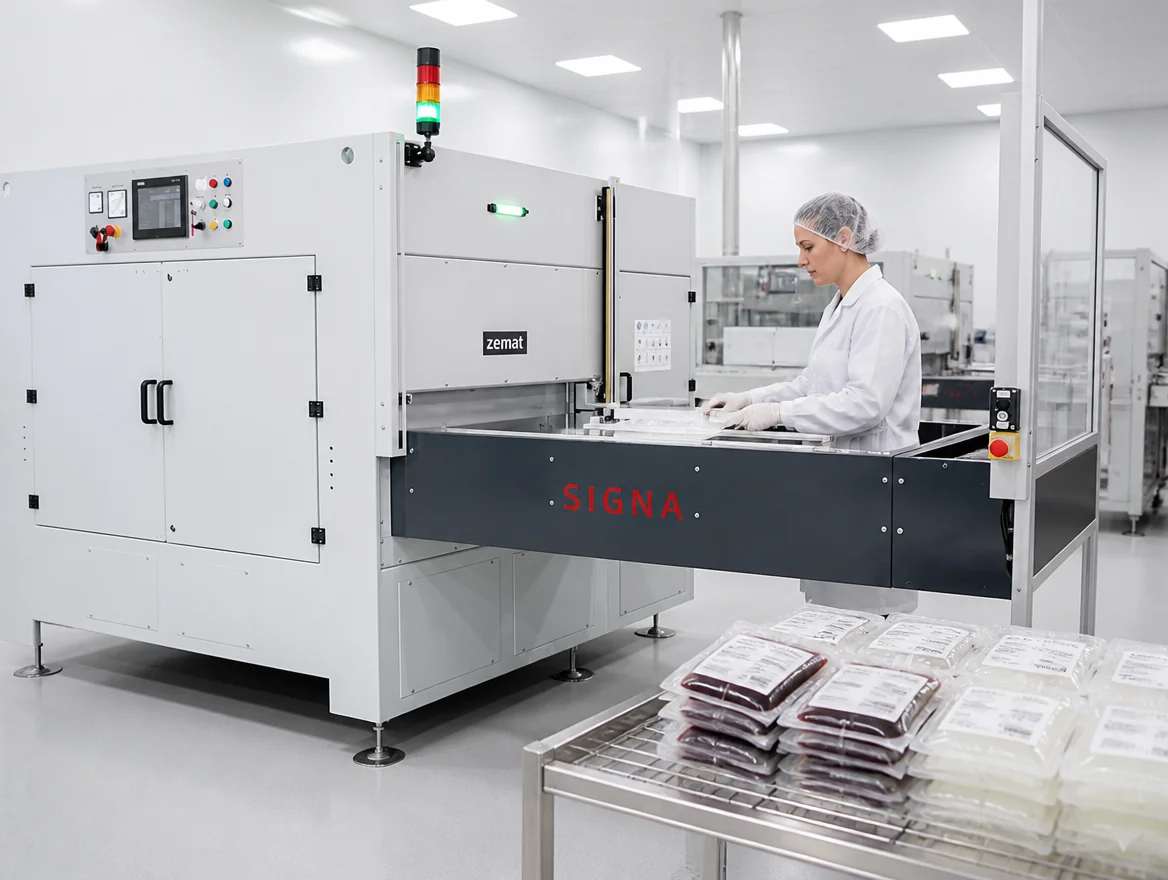

Medical Bag Producers
Weld blood and ostomy bags at serial volume with the generator welding nearly all the time.
Automotive Component Suppliers
Make automotive parts and assemblies where output per square metre of floor space matters.

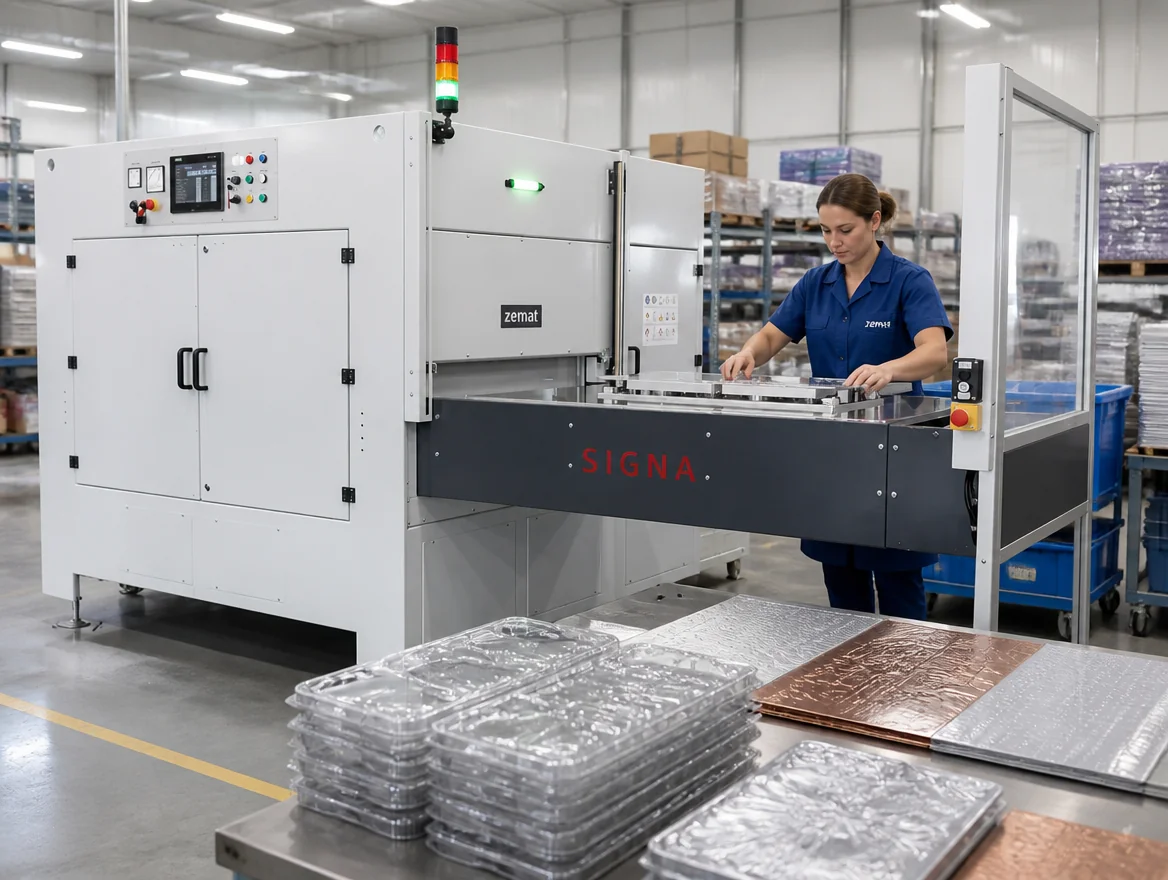

Packaging & Embossing Producers
Run clamshell packaging and embossed products on a high-throughput dual-table welder.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.
Request Full DatasheetHF & Tables
HF Power
10 kW to 45 kW
Design
Dual stacked shuttle tables (vertical)
Pressing Plate
900 × 1,300 mm
Shuttle Trays
1,000 × 1,400 mm
Heated Plate
Up to 160°C
Capability
Throughput
Generator welds nearly 100% of the time, one operator
Footprint
Small footprint via vertical table stacking
Heat Sealer
Converts to a heat sealer for PP and PE
Materials
PVC, PU, PET, A-PET, PLA
Control
Interface
10-inch colour touch screen HMI with PLC
Recipes
1000 recipes per tray
Systems
WCS weld control, ATS autotuning, USB I/O, VPN
Electrode
Easy electrode change on the upper platen
Structure & Safety
Frame
H-frame rolled steel with double-wing front access doors
Safety
Fully shielded HF area, pneumatic gates, AntiFlash, SafeDown
Compliance
CE / UL; ISO 17025 EMC testing available
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
Up to 45 kW
HF Power Output
High HF power handles demanding serial production of medical, automotive and packaging products.
Dual-Table
Near-Constant Welding
Loading one table while the other welds keeps the HF generator working almost continuously with a single operator.
Space-Saving
Vertical Footprint
Stacking the two tables vertically saves significant floor space versus a long horizontal shuttle system.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Machine
Factory-tested and EMC-checked at the Zemat plant before dispatch
Import & Customs
Sea freight and customs clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with factory-backed engineers
Operator Training
On-site run-in and operator training at start-up
Factory-Supplied Spares
Electrodes and wear parts sourced to order from Zemat
Technical Support
Remote VPN diagnostics and factory-backed support after start-up
Buying Through Magnum
One accountable partner, end to end
Magnum Resources is the authorised India partner for Zemat Technology Group. We size the power and tooling with the factory for your products and floor space, manage import and customs, install it on your floor and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Authorised India Partner
A direct link to the Zemat factory for specification, tooling and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
Factory-backed engineers install the machine and train your operators in person.
Factory-Supplied Spares
Genuine electrodes and wear parts sourced directly from Zemat.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
HF output power from 10 to 45 kW for demanding serial production
Standard 900 by 1,300 mm pressing plate with 1,000 by 1,400 mm shuttle trays
Keeps the HF generator welding nearly 100 percent of the time with one operator
Small floor footprint compared with a long horizontal shuttle table
Heated pressing plate up to 160 degrees Celsius and easy heat-sealer conversion for PP and PE
10-inch colour touch screen HMI and PLC storing 1000 recipes per tray
WCS Weld Control System, ATS autotuning and fully shielded HF area with safety gates

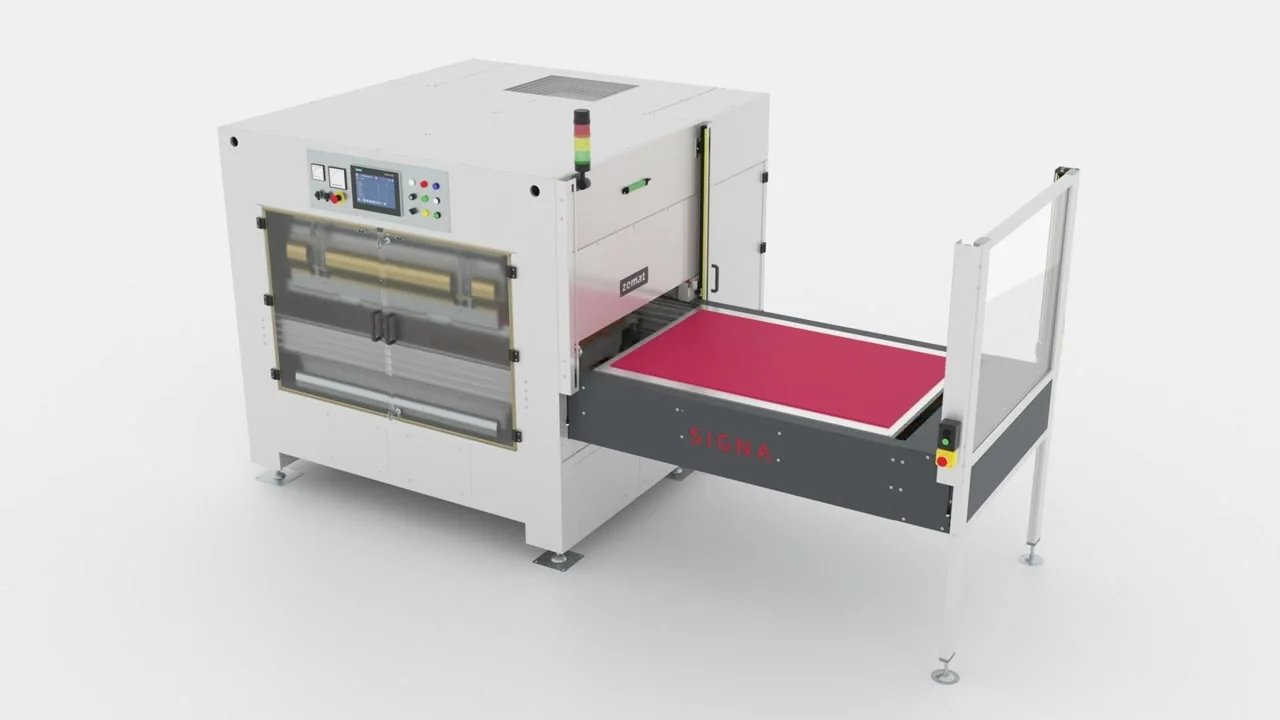

Watch It Run
See it in action
Real footage from installed sites and OEM demonstrations.
Documentation
Technical downloads
Brochures, datasheets and CAD files, available on request.
FAQs
Questions Indian buyers ask us
Real questions from our last 50 enquiries, answered upfront.
The SIGNA TB welds orthoses and rehabilitation equipment, medical bags such as blood and ostomy bags, automotive parts and assemblies, embossing and clamshell packaging. It is built for high-throughput serial production in a small floor footprint.
Two shuttle tables are stacked vertically on one side of the machine. The operator loads the lower table while the upper table is inside the shielded press welding. When the weld finishes, the tables swap, so the press is welding almost continuously with just one operator. Stacking the tables also saves floor space versus a long horizontal shuttle.
HF output runs 10 to 45 kW. The standard pressing plate is 900 by 1,300 mm, with shuttle trays of 1,000 by 1,400 mm. A heated pressing plate up to 160 degrees Celsius supports difficult materials.
Not by high frequency. PP and PE do not heat under an HF field, so the SIGNA TB converts to a standard heat sealer for those materials, while integrated heating supports difficult HF materials such as PET and some TPUs.
Buyers are orthosis and rehabilitation equipment makers, medical bag producers, automotive component suppliers and packaging and embossing producers who need high output where floor space is limited.
Typical lead time is around 16 to 20 weeks from the Zemat factory in Poland. Magnum manages import, customs, delivery, installation and operator training at start-up, with spares and support afterwards.
