SIGNA & SIGNA DUO Shuttle High Frequency Welder
Run serial HF welding of blister packs, medical bags and automotive parts on a single or double shuttle-tray welder from 6 to 20 kW, with heat-sealer conversion for PP and PE. Built in Poland and supplied, installed and supported across India by Magnum Resources.
6-20 kW
HF Power Output
1 or 2
Shuttle Trays
160°C
Heated Electrode
Poland
Country of Origin
16-20 weeks
Typical Lead Time
CE / ISO 17025
EMC Build Standard
Factory-Backed
Install & Training
Overview
About this machine
What the SIGNA and SIGNA DUO make
The Zemat SIGNA series is a flat-bed shuttle HF welder for serial production of formed plastic and coated-fabric products: blister and clamshell packaging, medical containers such as blood and ostomy bags, laboratory and rehabilitation equipment, automotive parts and assemblies, office accessories and promotional items. The single-tray SIGNA and double-tray SIGNA DUO use pneumatically driven side-load trays so loading and welding overlap.
Buyers call it a shuttle HF welder, a blister packaging welder, a medical bag welding machine or simply a high frequency welding machine.
Single or double tray, and heat-seal conversion

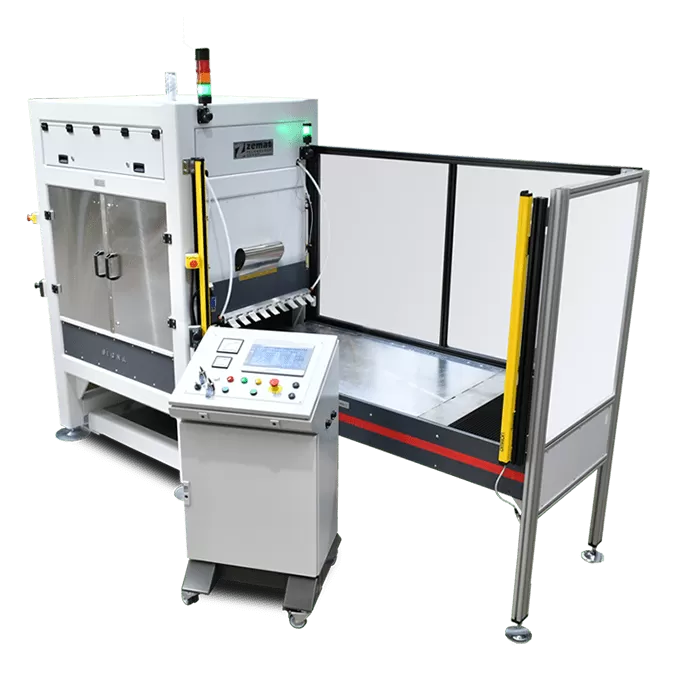

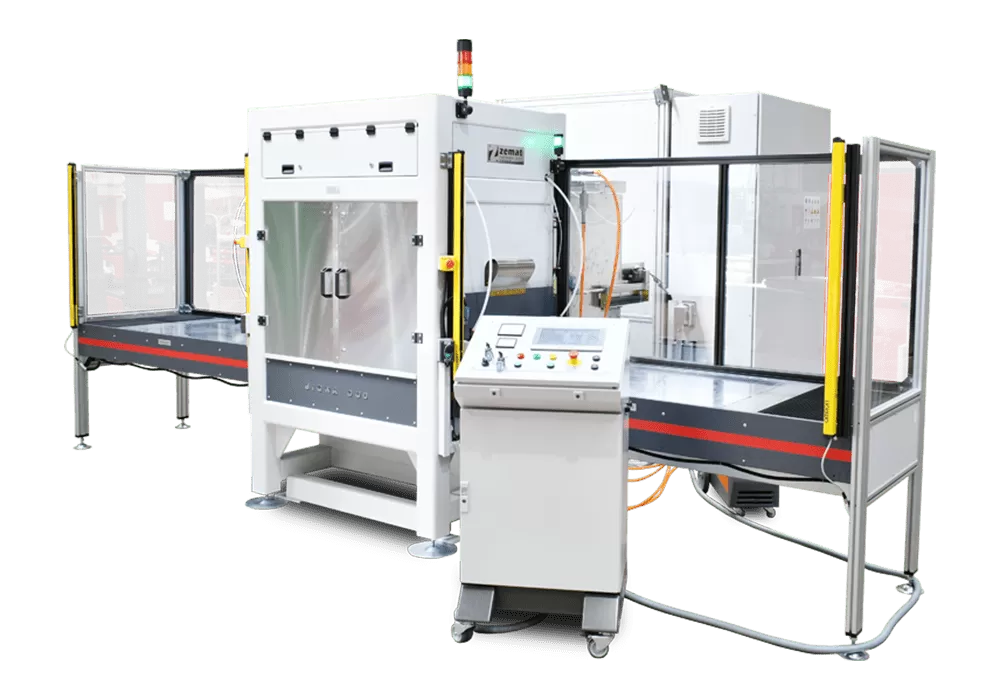

SIGNA runs one shuttle tray; SIGNA DUO runs two, so the operator loads one side while the other welds, which lifts output on long runs. A heated electrode plate up to 160 degrees Celsius helps weld hard PVC and PET foils and PU foams consistently. The machine converts to a standard heat sealer for materials HF welding cannot join, such as PP and PE, so one machine covers both processes. Each tray stores up to 1000 weld recipes.
What high frequency welding can and cannot join
HF welding works on polar thermoplastics: PVC, PU, PET, A-PET and PLA films. It does not weld non-polar plastics such as polypropylene (PP) or polyethylene (PE), which is exactly why the SIGNA offers a heat-seal conversion for those materials.
Who the SIGNA is built for in India
- Blister and clamshell packaging producers: retail and industrial packs in PVC, PET-G and A-PET.
- Medical device and bag makers: blood and ostomy bags, laboratory and rehabilitation equipment.
- Automotive component suppliers: welded parts and assemblies.
- Stationery and promotional producers: covers, folders and promotional items.
Why source the SIGNA through Magnum Resources
Magnum Resources is the authorised India partner for Zemat Technology Group. We help you choose SIGNA or SIGNA DUO and the right power, size the tooling with the factory, manage import and customs, and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Manufacturer reference: Zemat SIGNA DUO high frequency welder, official specification.
Built For
Who the SIGNA series is built for in India
A single or double shuttle HF welder for serial production of blister packs, medical bags and automotive parts. Find your fit below.
Blister & Clamshell Packaging Producers
Weld PVC, PET-G and A-PET blister and clamshell packs in serial runs, with a double-tray option for more output.
Medical Device & Bag Makers
Weld blood and ostomy bags with switchable tube and outer-edge welds on a small-footprint machine.
Automotive Component Suppliers
Make automotive parts and assemblies where output per square metre of floor space matters.

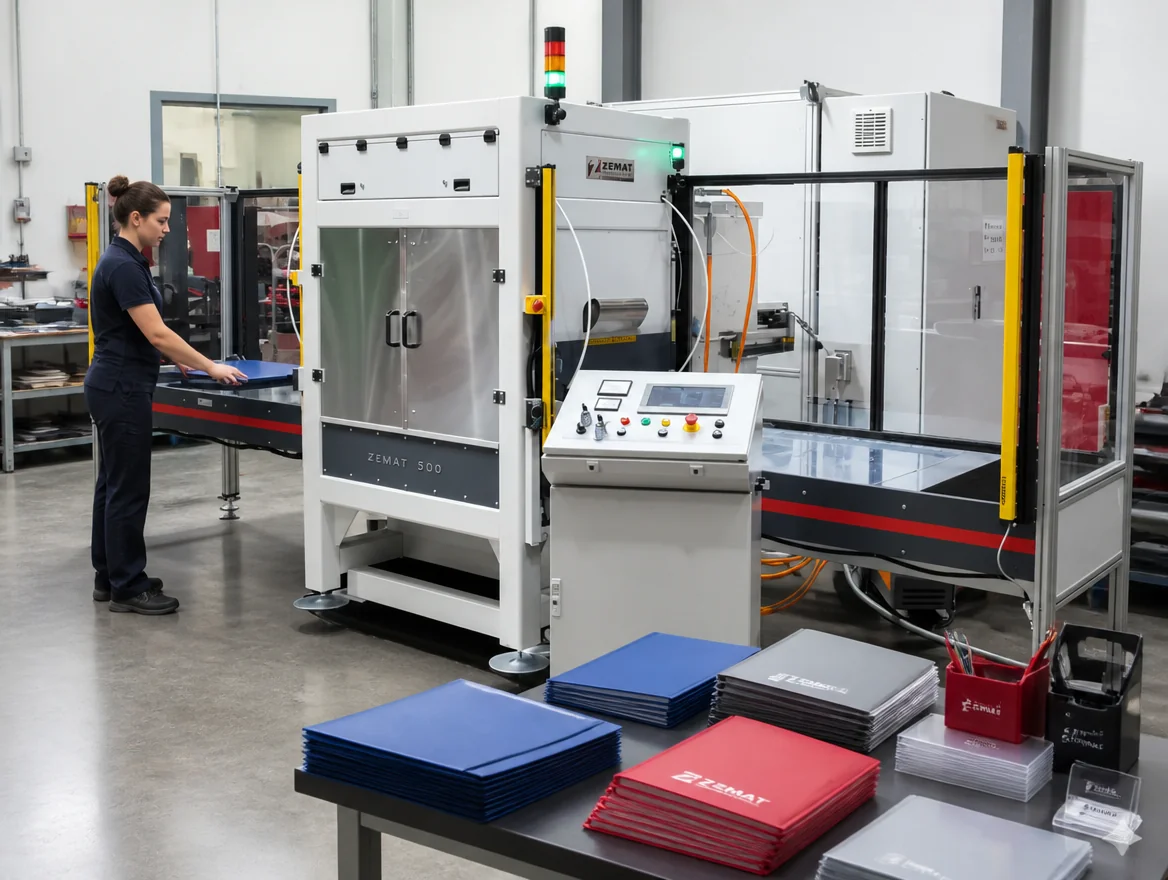

Stationery & Promotional Producers
Make covers, folders and promotional items on a flat-bed shuttle welder built for repeatable production.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.
Request Full DatasheetHF & Tables
HF Power
6, 10, 15 or 20 kW
Work Trays
Single (SIGNA) or double (SIGNA DUO) side-load
Drive
Pneumatic shuttle
Heated Plate
Up to 160°C
Capability
Heat Sealer
Converts to a standard heat sealer for PP and PE
Materials
PVC, PU, PET, A-PET, PLA
Output
Blister/clamshell, medical bags, automotive, stationery
Control
Interface
10-inch touch screen HMI with PLC
Recipes
1000 recipes per tray
Systems
WCS weld control, ATS autotuning, ultrafast ARC limiter
Connectivity
VPN client, VNC server, WAN-LAN and USB I/O
Structure & Safety
Frame
H-frame rolled steel with double-wing front doors
Safety
Fully shielded HF area, pneumatic gates, AntiFlash, SafeDown
Compliance
CE / UL; ISO 17025 EMC testing available
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
Up to 20 kW
HF Power Output
Power from 6 to 20 kW handles everything from small medical bags to larger automotive and packaging parts.
2 Trays
Shuttle Throughput
The SIGNA DUO double tray lets an operator load one side while the other welds, lifting output on long serial runs.
Heat Seal
PP / PE Conversion
Convert the same machine to a heat sealer for PP and PE, so one unit covers both HF welding and heat sealing.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Machine
Factory-tested and EMC-checked at the Zemat plant before dispatch
Import & Customs
Sea freight and customs clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with factory-backed engineers
Operator Training
On-site run-in and operator training at start-up
Factory-Supplied Spares
Electrodes and wear parts sourced to order from Zemat
Technical Support
Remote VPN diagnostics and factory-backed support after start-up
Buying Through Magnum
One accountable partner, end to end
Magnum Resources is the authorised India partner for Zemat Technology Group. We help you choose SIGNA or SIGNA DUO and the right power, size the tooling with the factory, manage import and customs, install it on your floor and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Authorised India Partner
A direct link to the Zemat factory for specification, tooling and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
Factory-backed engineers install the machine and train your operators in person.
Factory-Supplied Spares
Genuine electrodes and wear parts sourced directly from Zemat.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
HF output power of 6, 10, 15 or 20 kW for a range of production loads
Heated electrode holding plate up to 160 degrees Celsius for consistent welds
Easy conversion to a standard heat sealer for PP and PE materials
10-inch colour touch screen HMI and PLC storing 1000 recipes per tray
WCS Weld Control System and ATS autotuning with ultrafast ARC limiter
H-frame rolled steel structure with fully shielded HF area and pneumatic safety gates
Suited to PVC, PU, PET, A-PET and PLA films

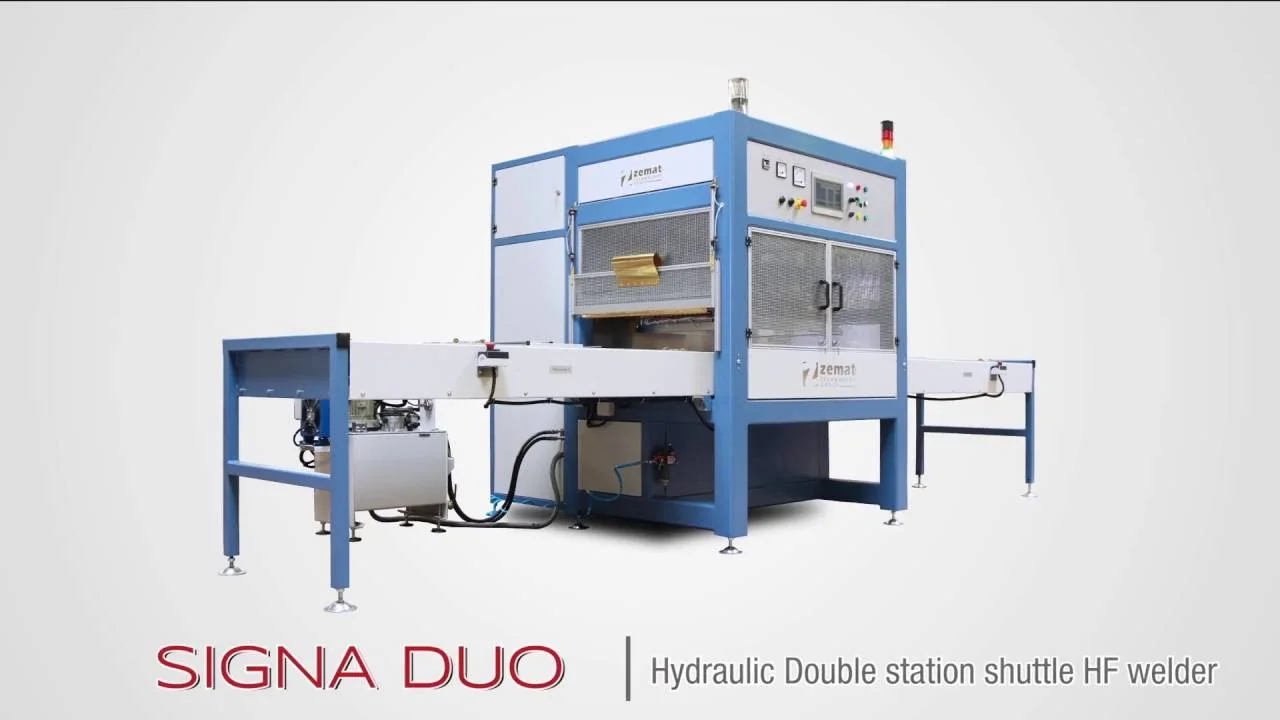

Watch It Run
See it in action
Real footage from installed sites and OEM demonstrations.
Documentation
Technical downloads
Brochures, datasheets and CAD files, available on request.
FAQs
Questions Indian buyers ask us
Real questions from our last 50 enquiries, answered upfront.
The SIGNA and SIGNA DUO weld blister and clamshell packaging, medical containers such as blood and ostomy bags, laboratory and rehabilitation equipment, automotive parts and assemblies, and office and promotional items. They are flat-bed shuttle welders built for serial production.
SIGNA has a single shuttle work tray; SIGNA DUO has two. With two trays the operator loads one side while the other is welding inside the shielded press, which raises output on long runs. Both come in 6, 10, 15 or 20 kW.
Not by high frequency, because PP and PE are non-polar and do not heat under an HF field. However, the SIGNA converts easily to a standard heat sealer, which does join PP and PE, so one machine covers both HF welding and heat sealing.
By high frequency it welds PVC, PU, PET, A-PET and PLA films, which covers blister film, medical-grade film and many automotive materials. A heated electrode plate up to 160 degrees Celsius improves consistency on hard PVC and PET foils and PU foams.
Buyers are blister and clamshell packaging producers, medical device and bag makers, automotive component suppliers, and stationery and promotional producers running serial batches.
Typical lead time is around 16 to 20 weeks from the Zemat factory in Poland. Magnum manages import, customs, delivery, installation and operator training at start-up, with spares and support afterwards.
