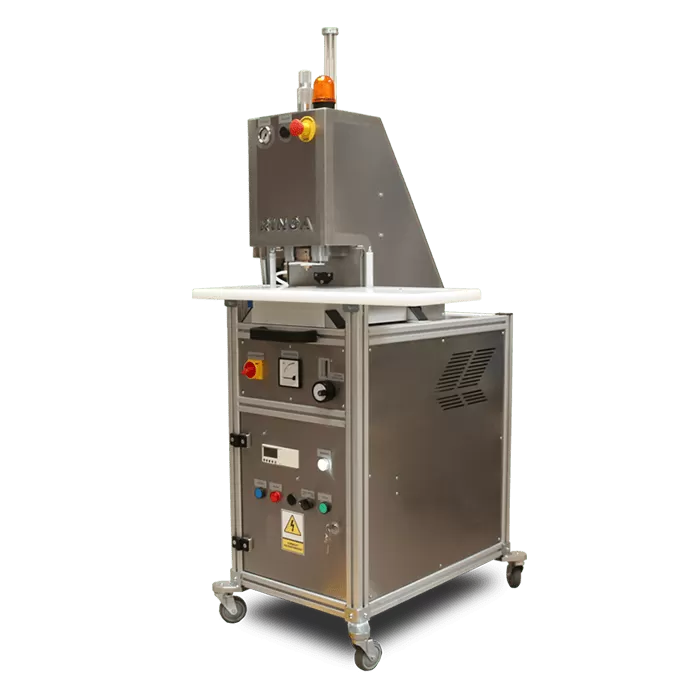

RINGA High Frequency PVC Eyelet Welding Machine
Weld PVC eyelets onto banners, tarpaulins, tents and technical textiles with an automated pneumatic feed, in sizes from 11/27 to 19/43 mm. Built in Poland and supplied, installed and supported across India by Magnum Resources.
11-43 mm
Eyelet Sizes
Up to 600 cm²
Single Weld Area
Automated
Pneumatic Feed
Poland
Country of Origin
16-20 weeks
Typical Lead Time
CE / ISO 17025
EMC Build Standard
Factory-Backed
Install & Training
Overview
About this machine
What the RINGA eyelet welder makes
The Zemat RINGA welds plastic PVC eyelets onto coated technical textiles. It is used to reinforce holes in banners, building wraps, outdoor advertising, tarpaulins, tents, billboards, tensile structures, netting and water-sport equipment. The pneumatic feed and punch press make it a high-volume tool, and a single weld cycle covers up to 600 square centimetres in a line or curved shape.
Buyers call this a PVC eyelet welding machine, a plastic eyelet welder, or a banner eyelet machine. It is the HF route to a reinforced hole that will not pull out.
Welded PVC eyelets vs metal grommets
A metal grommet is clamped to the fabric and can tear through under load, and it rusts and stains over time. A welded PVC eyelet fuses with the fabric so it becomes part of the sheet, which gives much higher tensile strength, especially in mesh. PVC eyelets need no hemming, work on single-layer vinyl, can be placed almost invisibly on the back of a banner, will not rust, and come clear, grey or white (other colours on request).
Who the RINGA is built for in India
- Banner and outdoor advertising producers: reinforced eyelets on vinyl banners and billboards.
- Tarpaulin and cover makers: strong tie-down points on tarpaulins and truck covers.
- Tent and tensile structure fabricators: eyelets on tents, shade systems and netting.
- Building wrap and signage producers: reinforced fixing holes on large-format wraps.
Why source the RINGA through Magnum Resources
Magnum Resources is the authorised India partner for Zemat Technology Group. We size the eyelet tooling and electrodes with the factory for your eyelet sizes and fabrics, manage import and customs, and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Manufacturer reference: Zemat RINGA high frequency eyelet welder, official specification.
Built For
Who the RINGA is built for in India
An HF welder that fuses PVC eyelets onto banners, tarpaulins and tents, far stronger than metal grommets. Find your fit below.
Banner & Outdoor Advertising Producers
Weld rust-free PVC eyelets onto vinyl banners and billboards, placed almost invisibly and far stronger than metal.

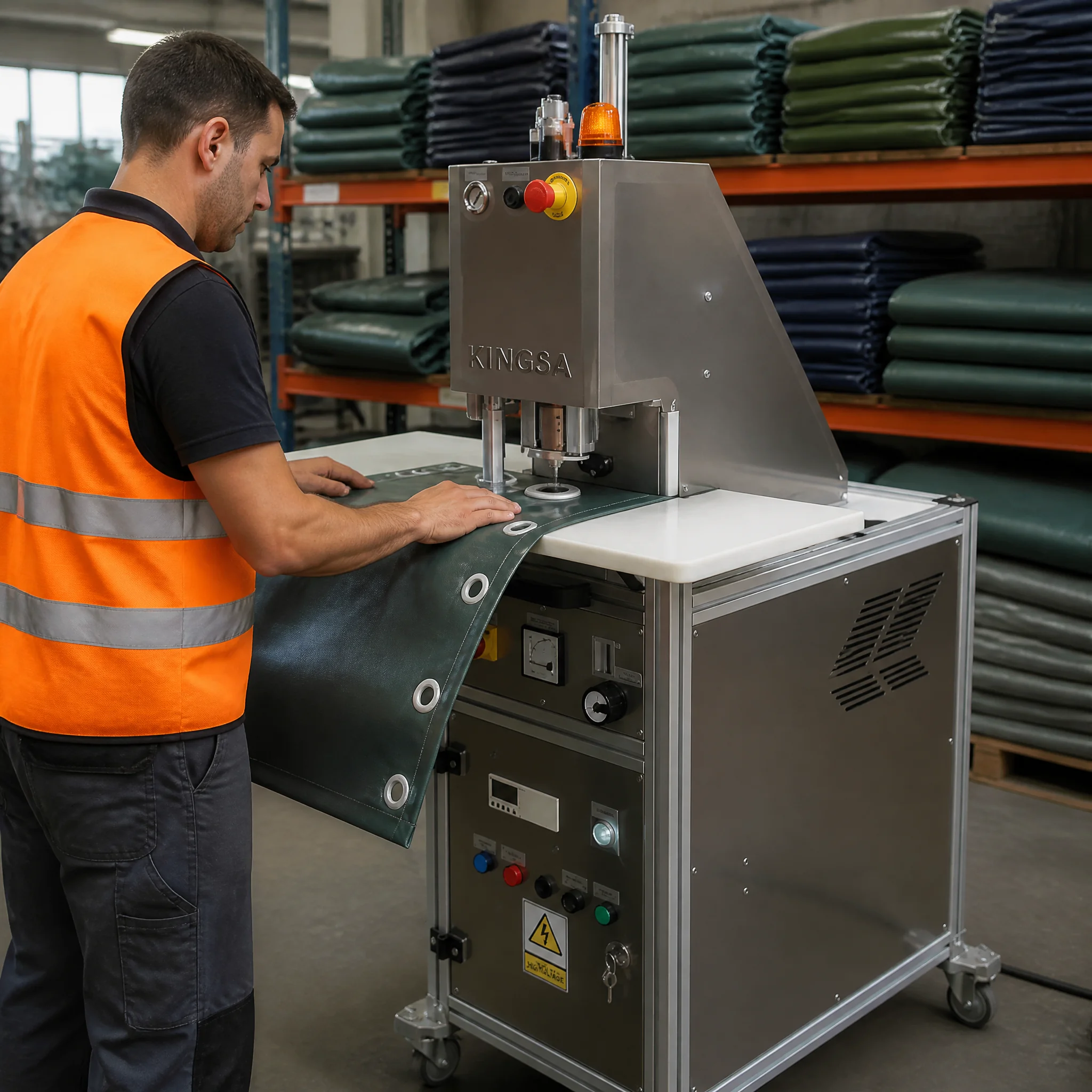

Tarpaulin & Cover Makers
Add strong, weldable tie-down eyelets to tarpaulins and truck covers without hemming or metal grommets.
Tent & Tensile Structure Fabricators
Make on-the-spot welds on large tents, membranes and tensile structures without moving the whole sheet.

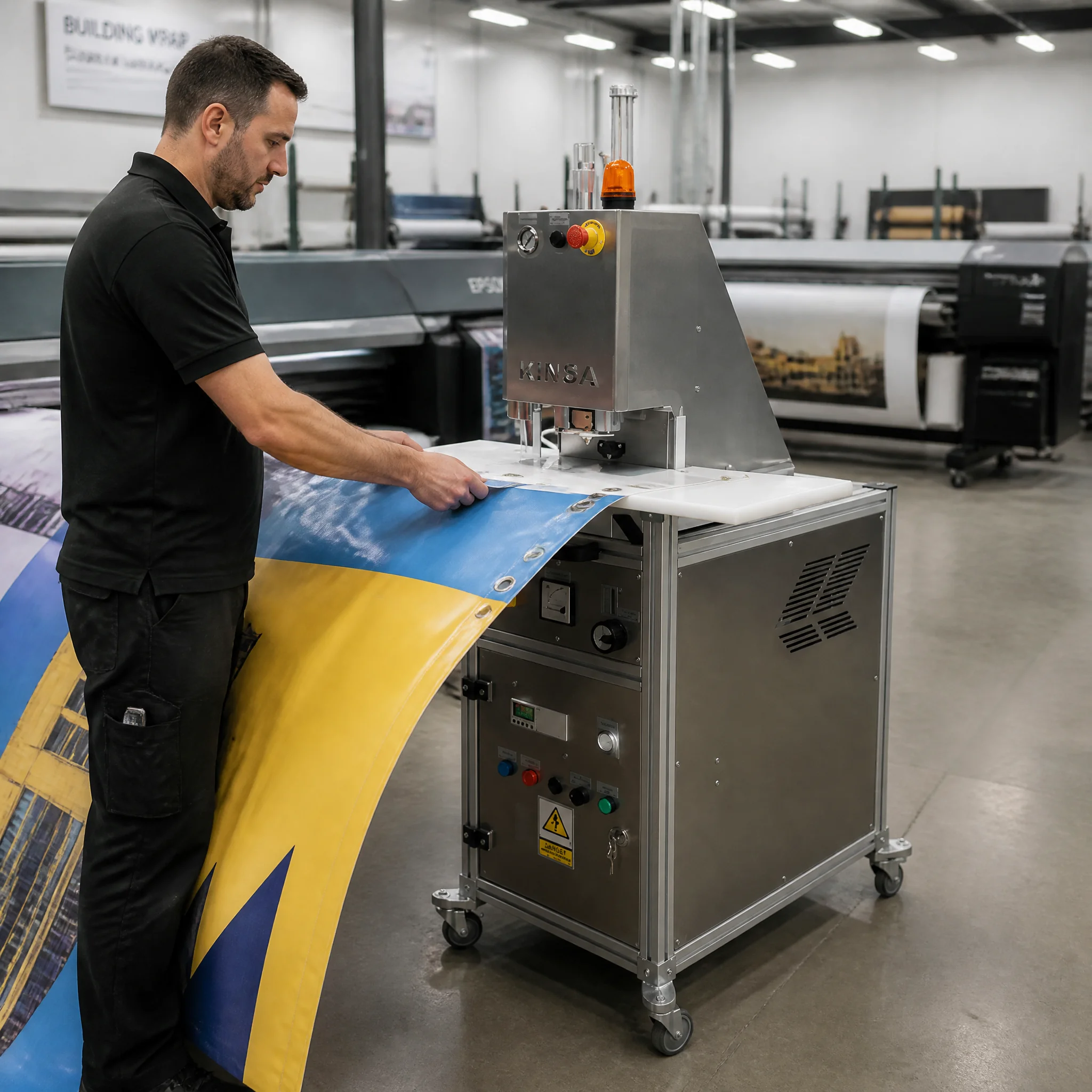

Building Wrap & Signage Producers
Weld reinforced fixing holes on large-format building wraps and signage that hold high pull forces.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.
Request Full DatasheetWelding
Eyelet Sizes
11/27, 13/32, 15/37, 19/43 mm
Single Weld
Up to 600 cm²
Feed
Automated pneumatic feeding and punching press
Electrodes
Custom electrode per eyelet size
Eyelets
Type
Carmo PVC eyelets
Colours
Clear, grey, white (others on request)
Benefit
Fuses with the fabric; no hemming; will not rust
Machine
Actuation
Pedal or toggle
Footprint
Small footprint, good ergonomics
Guarding
Protective fixed guard, HF shielded and filtered table
Control & Safety
Control
HMI control with stored settings
Safety
ZTG AntiFlash, ZTG SafeDown, grid filter, EM protection
Compliance
CE / UL; ISO 17025 EMC testing available
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
Higher
Pull Strength vs Grommets
A welded PVC eyelet fuses with the fabric and becomes part of the sheet, holding far higher pull forces than a clamped metal grommet, especially in mesh.
No Rust
Weather-Proof Eyelets
PVC eyelets will not rust or stain the banner, need no hemming, and can be placed almost invisibly on the back.
Automated
Pneumatic Feed
Automated feeding and punching makes the RINGA a high-volume tool for production banner and tarpaulin work.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Machine
Factory-tested and EMC-checked at the Zemat plant before dispatch
Import & Customs
Sea freight and customs clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with factory-backed engineers
Operator Training
On-site run-in and operator training at start-up
Factory-Supplied Spares
Eyelet electrodes and wear parts sourced to order from Zemat
Technical Support
Remote VPN diagnostics and factory-backed support after start-up
Buying Through Magnum
One accountable partner, end to end
Magnum Resources is the authorised India partner for Zemat Technology Group. We size the eyelet tooling and electrodes with the factory for your eyelet sizes and fabrics, manage import and customs, install it on your floor and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Authorised India Partner
A direct link to the Zemat factory for specification, tooling and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
Factory-backed engineers install the machine and train your operators in person.
Factory-Supplied Spares
Genuine eyelet electrodes and wear parts sourced directly from Zemat.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
Welds common eyelet sizes such as 11/27, 13/32, 15/37 and 19/43 mm with custom electrodes
Works with Carmo PVC eyelets in clear, grey and white (other colours on request)
Single weld cycle up to 600 square centimetres in a line or curved shape
Welded eyelets fuse with the fabric for far higher pull strength than metal grommets
No hemming required and suitable for single-layer vinyl and mesh materials
Pedal or toggle action and a small footprint for good operator ergonomics
Protective fixed guard with an HF shielded and filtered work table
Watch It Run
See it in action
Real footage from installed sites and OEM demonstrations.
Documentation
Technical downloads
Brochures, datasheets and CAD files, available on request.
FAQs
Questions Indian buyers ask us
Real questions from our last 50 enquiries, answered upfront.
The RINGA welds plastic PVC eyelets onto coated technical textiles, reinforcing holes in banners, building wraps, tarpaulins, tents, billboards, tensile structures and netting. An automated pneumatic press feeds and welds the eyelets for high-volume production.
A welded PVC eyelet fuses with the fabric and becomes part of the sheet, so it holds much higher pull forces and will not tear through, especially in mesh. It needs no hemming, works on single-layer vinyl, can be placed almost invisibly, and will not rust or stain the way metal grommets do.
The RINGA welds common sizes such as 11/27, 13/32, 15/37 and 19/43 mm (inside/outside diameter) using custom electrodes. It is designed to work with Carmo PVC eyelets, which are used worldwide for outdoor banner and tarpaulin reinforcement.
The RINGA works on PVC, PET and PU coated technical textiles, the materials banners, tarpaulins and tents are made from. As with all HF welding, it does not bond non-polar plastics such as polypropylene or polyethylene.
Buyers are banner and outdoor advertising producers, tarpaulin and cover makers, tent and tensile structure fabricators, and building wrap and signage producers who want strong, rust-free reinforced holes.
Typical lead time is around 16 to 20 weeks from the Zemat factory in Poland. Magnum manages import, customs, delivery, installation and operator training at start-up, with eyelet tooling, spares and support through the same contact afterwards.
