MAGNA Suspended 360° High Frequency Welder for Large Structures
Weld large-format PVC and PU structures with 360 degree table access, on a suspended welder available as MAGNA S, L and 3D. Built in Poland and supplied, installed and supported across India by Magnum Resources.
360°
Workspace Access
10-25 kW
HF Power Output
3 Versions
S, L and 3D
Poland
Country of Origin
16-20 weeks
Typical Lead Time
CE / ISO 17025
EMC Build Standard
Factory-Backed
Install & Training
Overview
About this machine
What the MAGNA high frequency welder makes
The Zemat MAGNA is a high frequency (HF) welder for large-format work. Because the welding head is suspended over an open table with 360 degree access, it welds big PVC and PU coated structures that will not fit a closed bench welder: tents and tensile and membrane structures, advertising billboards, swimming pool liners and covers, oil booms, flood dams, water cisterns and tanks, truck covers, high-speed doors and fishery tanks.
Buyers call this a large-format HF welder, a gantry HF welder, a 360 degree welding machine, or an RF heat sealer for big structures. If your product is too large for a fixed table, this is the machine built for it.
MAGNA S, MAGNA L and MAGNA 3D

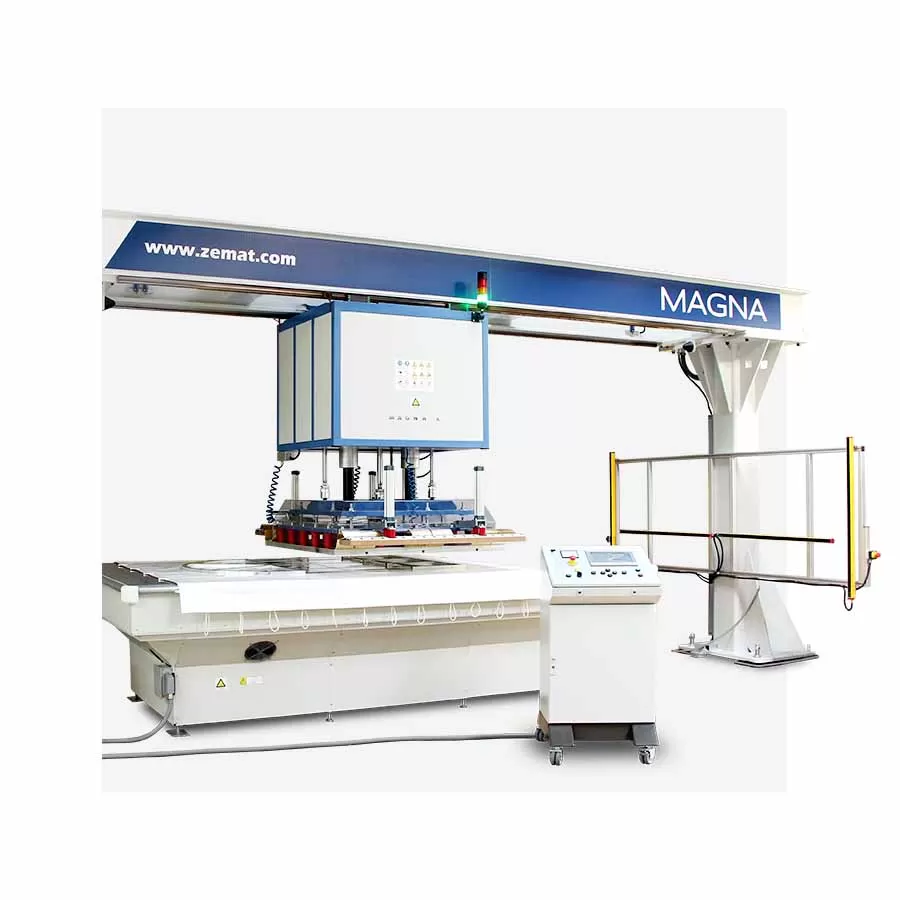

There are three versions. MAGNA S is a ceiling-suspended head at 10 to 25 kW with a 180 degree-plus rotating turret and a floor-level work table for handling heavy fabric. MAGNA L moves the head along an X-axis robotic beam (servo control, plus or minus 0.5 mm) over a 1,350 by 3,200 mm table with 4,000 kg downstroke, for long straight, curved or repeated parallel welds. MAGNA 3D is a gantry with true 360 degree rotation and servo X and Y movement, sized to your factory, for the most complex large weld patterns.
What high frequency welding can and cannot join
HF welding works on polar thermoplastics: PVC and PU coated technical textiles, the materials tents, covers, liners and booms are made from. It does not weld non-polar plastics such as polypropylene (PP) or polyethylene (PE). If you are unsure about your coated fabric, Zemat will test a sample.
Who the MAGNA is built for in India
- Tent and tensile structure makers: large membranes, shade systems and event structures.
- Billboard and large signage producers: wide advertising banners and billboards.
- Pool liner, oil boom and water tank makers: large containment and water-management products.
- Truck cover and high-speed door fabricators: big curtain covers and industrial doors.
Why source the MAGNA through Magnum Resources
Magnum Resources is the authorised India partner for Zemat Technology Group. We help you choose the S, L or 3D version for your products and floor space, size the tooling with the factory, manage import and customs, and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Manufacturer reference: Zemat MAGNA high frequency welder, official specification.
Built For
Who the MAGNA is built for in India
A suspended HF welder with 360 degree access for large structures, whether you make tents, billboards, pool liners or truck covers. Find your fit below.

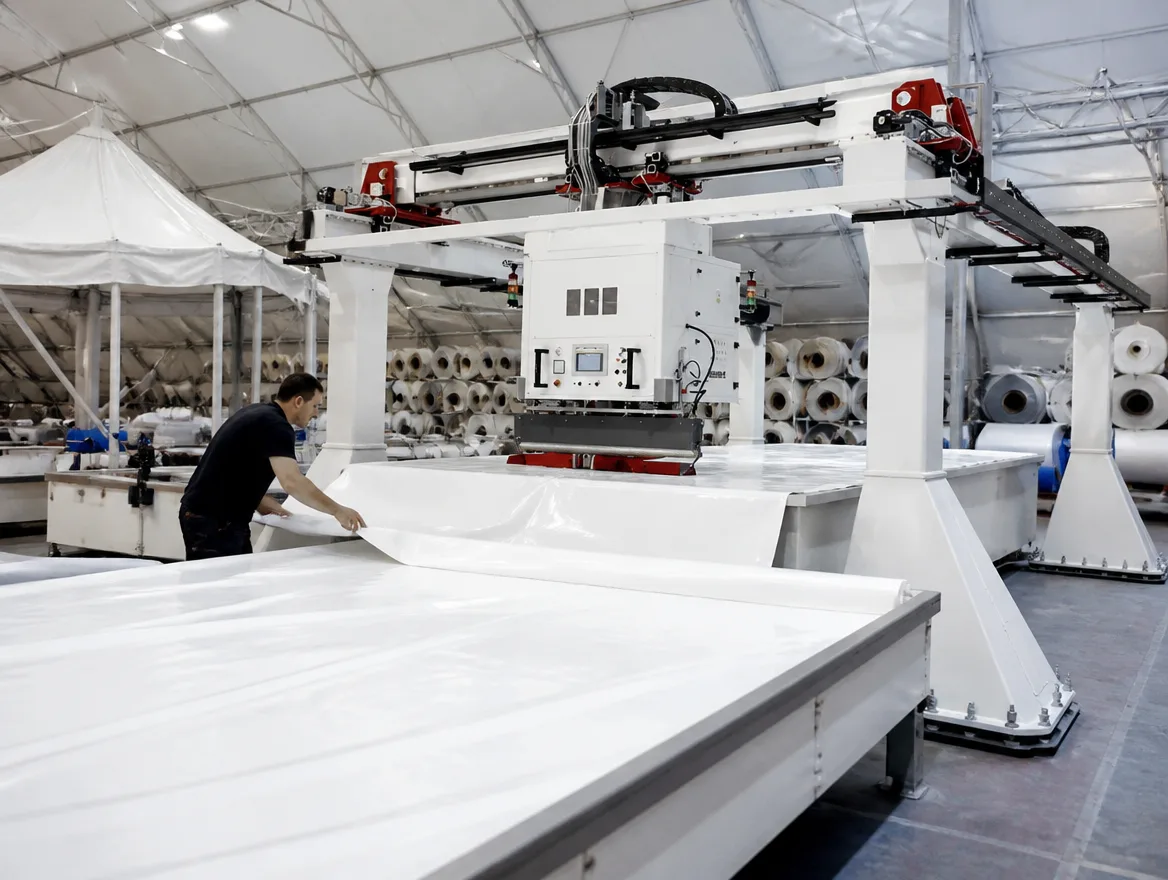

Tent & Tensile Structure Makers
Weld large tents, membranes and tensile structures with 360 degree table access for big, awkward panels.

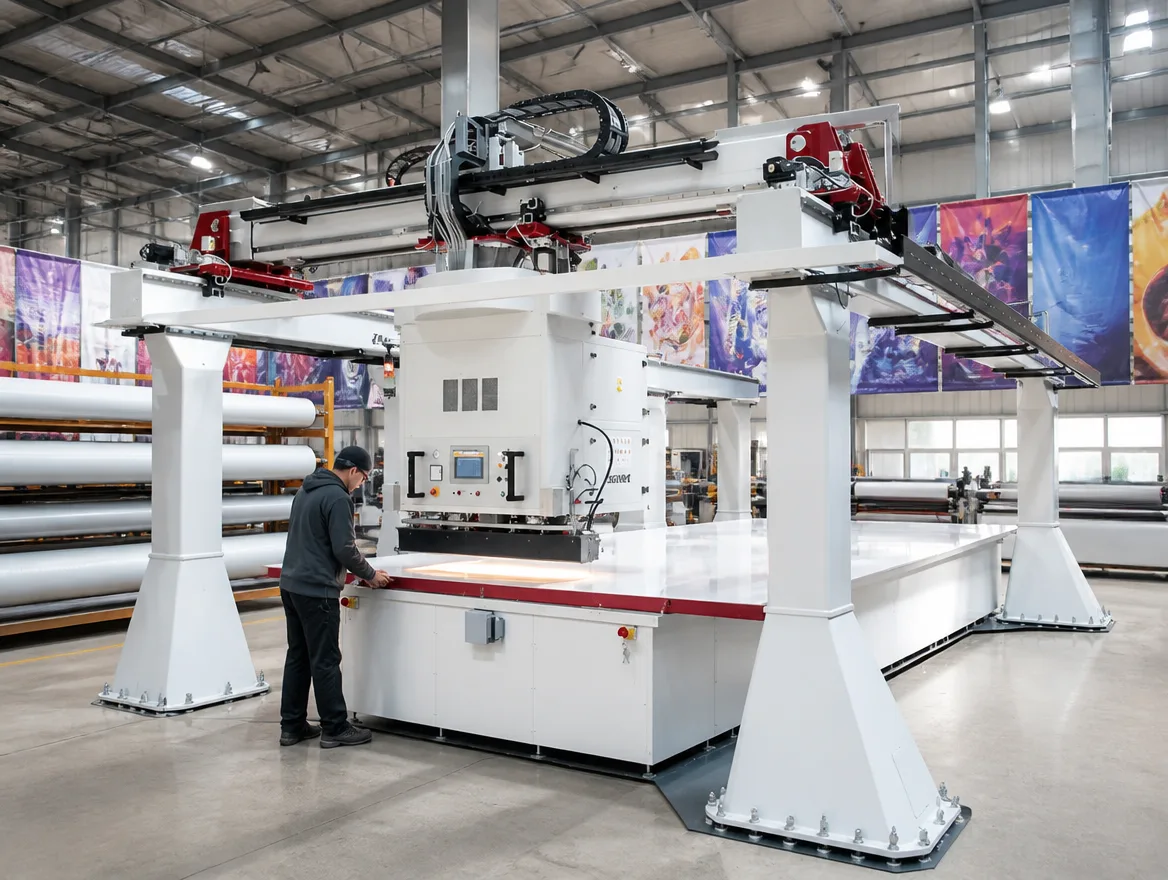

Billboard & Large Signage Producers
Produce wide advertising billboards and banners with long, straight, repeatable welds on a gantry head.

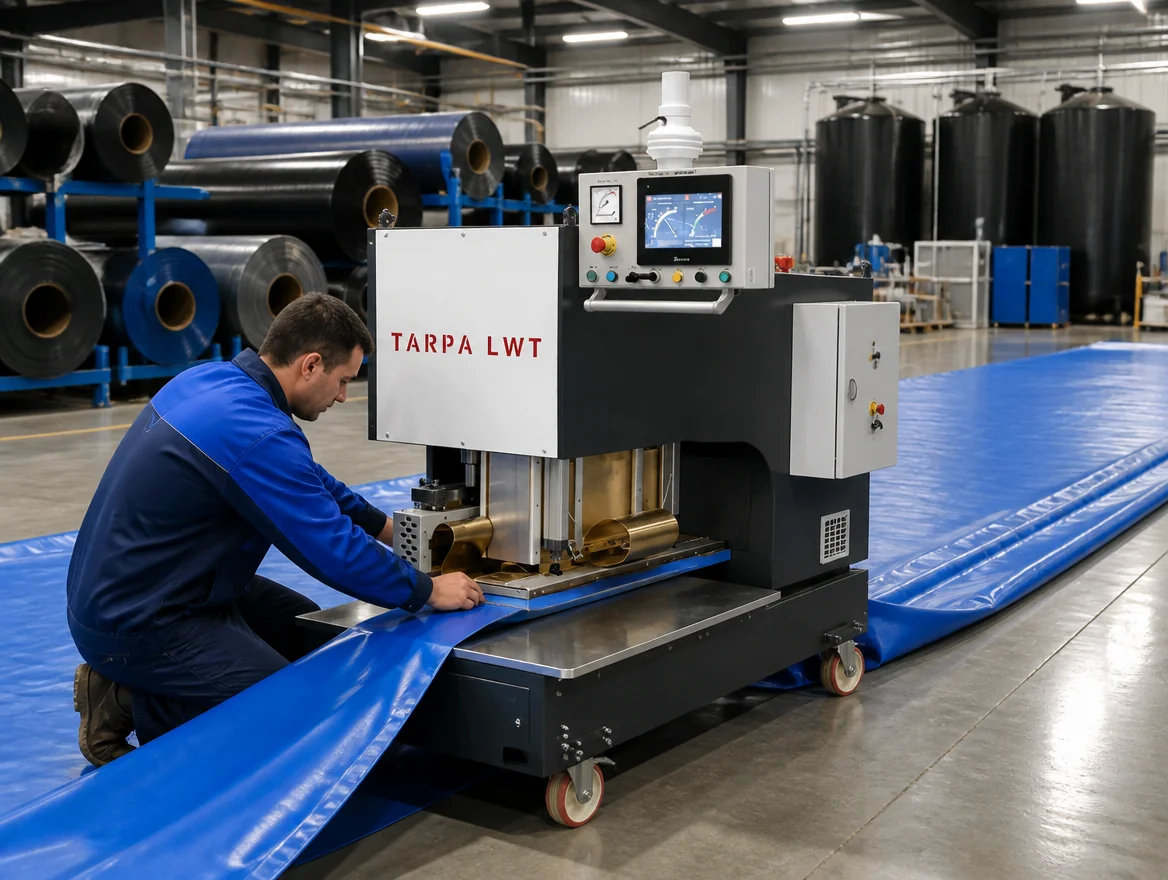

Pool Liner, Oil Boom & Water Tank Makers
Weld special joins and reinforcements on large pool liners, oil booms, flood dams and water tanks.

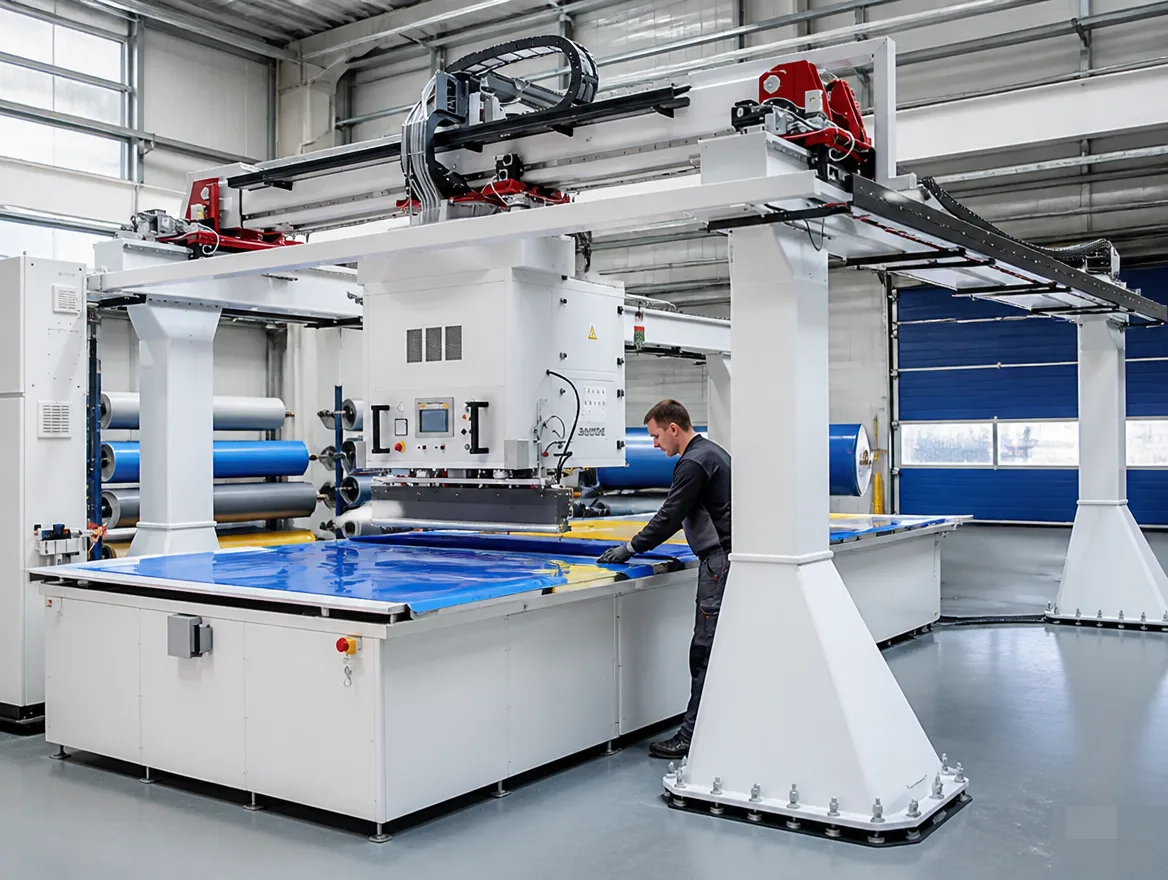

Truck Cover & High-Speed Door Fabricators
Weld truck curtain covers, side curtains and industrial high-speed doors that are too large for a bench welder.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.

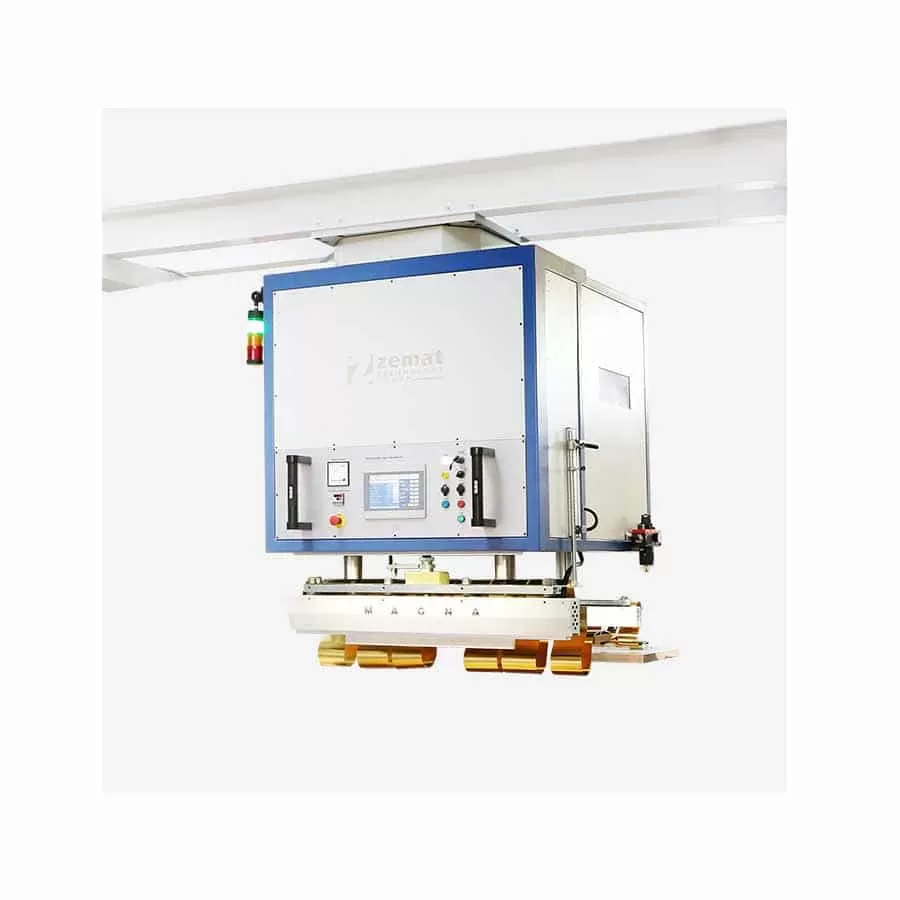

Request Full DatasheetMAGNA S (Ceiling-Suspended)
HF Power Output
10 kW to 25 kW
Welding Head
Ceiling-suspended with 180-degree-plus rotating turret
Work Table
Floor-level table for heavy fabric
Press Drive
Pneumatic
MAGNA L (X-Move Gantry)
HF Generator
25 kW Hi-Q generator
Work Table
1,350 × 3,200 mm
Press Area
1,350 × 1,300 mm
Downstroke
4,000 kg force, 400 mm stroke
Positioning
Servo X-axis, plus or minus 0.5 mm
Seam Area
Up to 1,000 cm² per weld

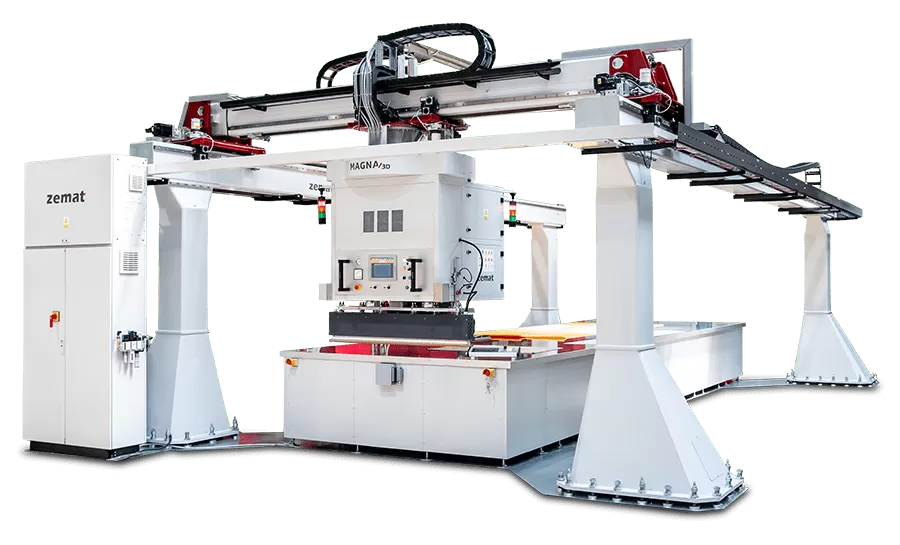

MAGNA 3D (Full Gantry)
HF Power Output
15 kW to 25 kW
Rotation
True 360 degrees
Movement
Servo X and Y with multipoint encoder
Control
10-inch HMI plus remote iPad HMI
Common to All Versions
Guides
HIWIN linear guides, APEX planetary gears
Recipes
Up to 1000 weld recipes
Materials
PVC and PU coated technical textiles
Compliance
CE, EMI, OSHA, FCC; ISO 17025 EMC testing available
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
360°
Workspace Access
A suspended head over an open table reaches large structures from any side, welding parts that will not fit a closed bench machine.
Up to 1,000 cm²
Seam Area per Weld
The MAGNA L closes large seams in a single weld, cutting the number of passes on long structural joins.
3 Versions
S, L or 3D
Pick a ceiling-suspended head, an X-axis gantry or a full 360 degree gantry to match your products and floor space.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Machine
Factory-tested and EMC-checked at the Zemat plant before dispatch
Import & Customs
Sea freight and customs clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with factory-backed engineers
Operator Training
On-site run-in and operator training at start-up
Factory-Supplied Spares
Electrodes and wear parts sourced to order from Zemat
Technical Support
Remote VPN diagnostics and factory-backed support after start-up
Buying Through Magnum
One accountable partner, end to end
Magnum Resources is the authorised India partner for Zemat Technology Group. We help you choose the S, L or 3D version for your products and floor space, size the tooling with the factory, manage import and customs, install it on your floor and train your operators at start-up. Wear parts and technical support run through the same contact afterwards.
Authorised India Partner
A direct link to the Zemat factory for specification, tooling and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
Factory-backed engineers install the machine and train your operators in person.
Factory-Supplied Spares
Genuine electrodes and wear parts sourced directly from Zemat.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
Three versions: MAGNA S (ceiling-suspended), MAGNA L (X-Move gantry), MAGNA 3D (full gantry)
HF power from 10 to 25 kW depending on version and work load
MAGNA L servo X-axis drive with plus or minus 0.5 mm positioning on a 1,350 by 3,200 mm table
MAGNA L downstroke force of 4,000 kg with a 400 mm stroke opening and vacuum table
MAGNA 3D true 360 degree servo rotation with X and Y multipoint encoder positioning
10-inch touch screen HMI plus optional handheld iPad remote HMI and VPN remote control
HIWIN linear guides and APEX planetary gears for precise, repeatable head movement

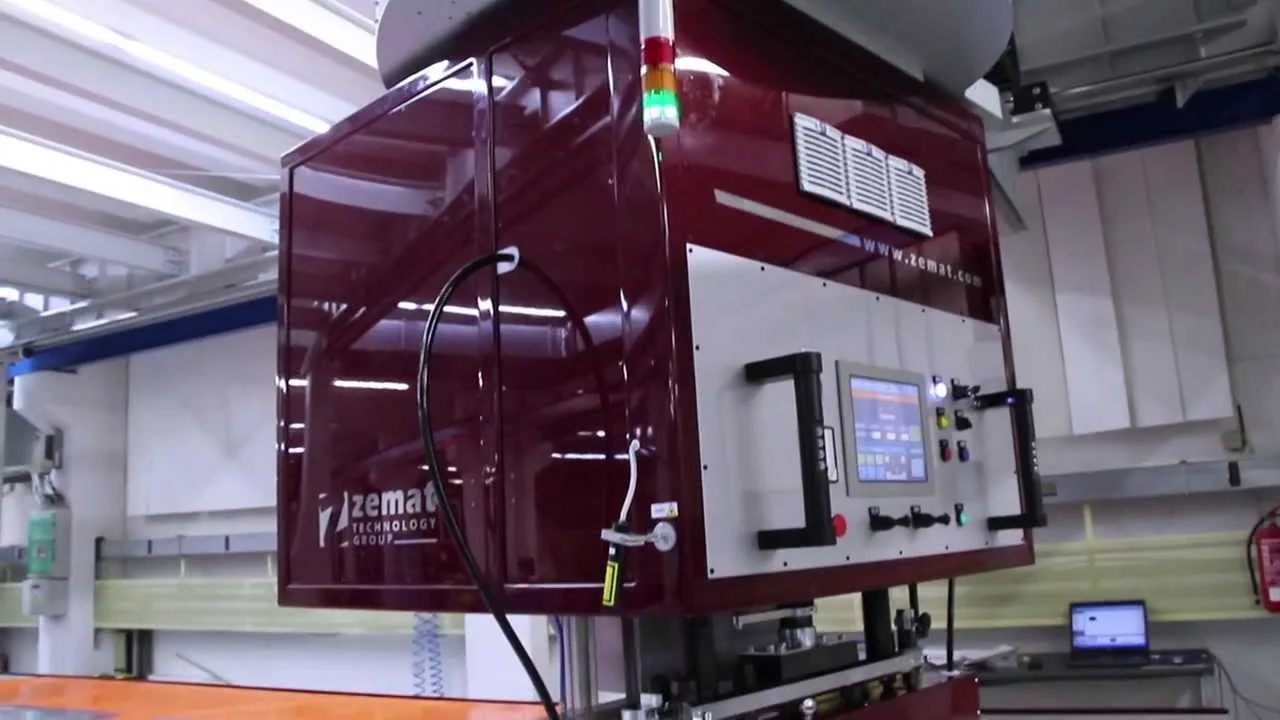

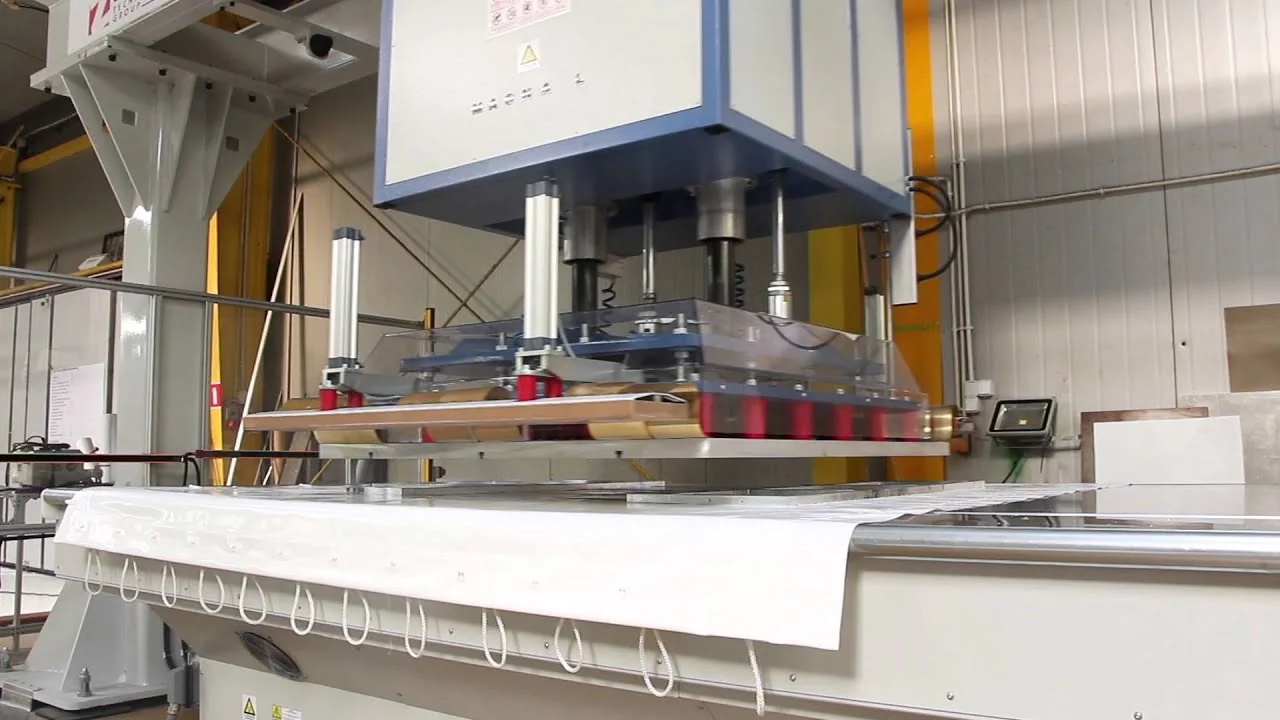

Watch It Run
See it in action
Real footage from installed sites and OEM demonstrations.
Documentation
Technical downloads
Brochures, datasheets and CAD files, available on request.
FAQs
Questions Indian buyers ask us
Real questions from our last 50 enquiries, answered upfront.
The MAGNA welds large-format PVC and PU coated structures: tents and tensile structures, advertising billboards, swimming pool liners and covers, oil booms, flood dams, water cisterns and tanks, truck covers, high-speed doors and fishery tanks. Its suspended head and 360 degree table access let it handle parts that are too big for a closed bench welder.
MAGNA S is a ceiling-suspended head (10 to 25 kW) with a rotating turret and floor-level table for heavy fabric. MAGNA L moves the head along an X-axis robotic beam (servo, plus or minus 0.5 mm) over a 1,350 by 3,200 mm table with 4,000 kg downstroke, for long straight and curved welds. MAGNA 3D is a full gantry with true 360 degree rotation and servo X and Y movement for the most complex large weld patterns.
Power depends on version: MAGNA S runs 10 to 25 kW, MAGNA 3D runs 15 to 25 kW, and MAGNA L uses a 25 kW Hi-Q generator capable of seams up to 1,000 square centimetres. Our engineers size the power to your fabric weight and seam area.
The MAGNA welds polar thermoplastics: PVC and PU coated technical textiles, which is what tents, covers, liners and booms are made from. It does not weld non-polar plastics such as polypropylene (PP) or polyethylene (PE), because those do not heat under an HF field.
The buyers are makers of large technical-textile products: tent and tensile-structure fabricators, billboard and large signage producers, pool liner, oil boom and water tank makers, and truck cover and high-speed door fabricators. It suits any shop whose welds are too large for a fixed-table machine.
Yes, the MAGNA is fully CE compliant and EMI, OSHA and FCC rated, and Zemat runs its own ISO 17025 EMC laboratory with onsite testing available. Safety comes from the ZTG SafeDown anti-crush electrode system, ZTG AntiFlash ARC protection, EMC grounding feet, a grid filter and backflow HF emission protection.
Typical lead time is around 16 to 20 weeks: build and EMC testing at the Zemat factory in Poland, then sea freight and customs into India. Magnum manages import, customs, delivery, installation and operator training at start-up, with spares and support through the same contact afterwards.
