Composite & Polyester Fiber Strapping Production Line

What the Co-Drip strapping line produces

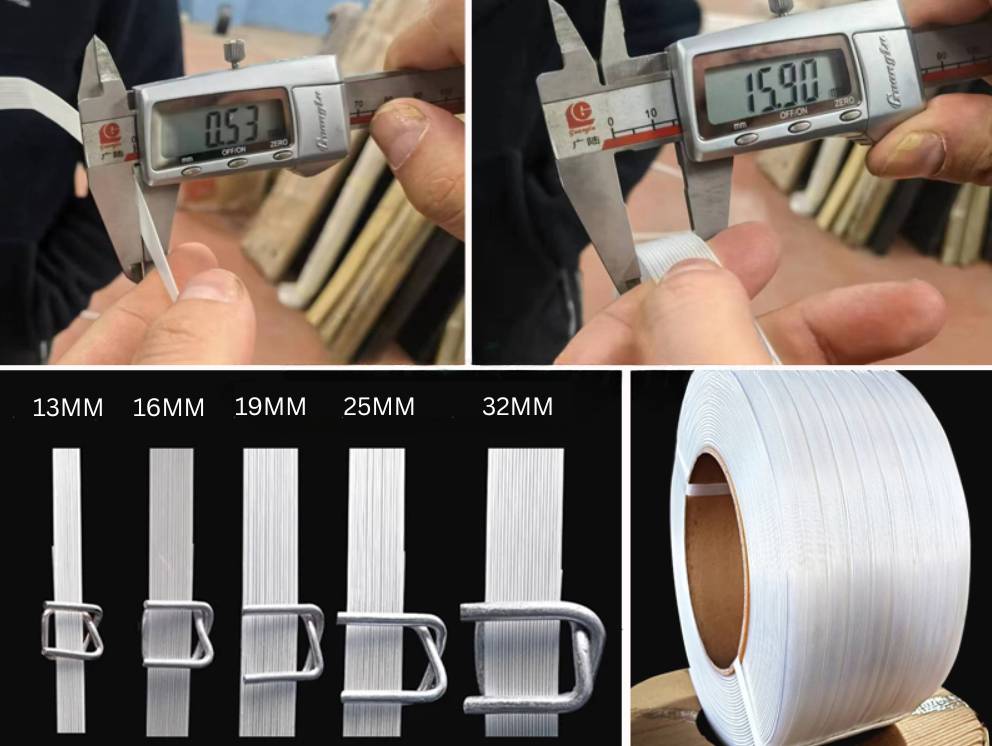

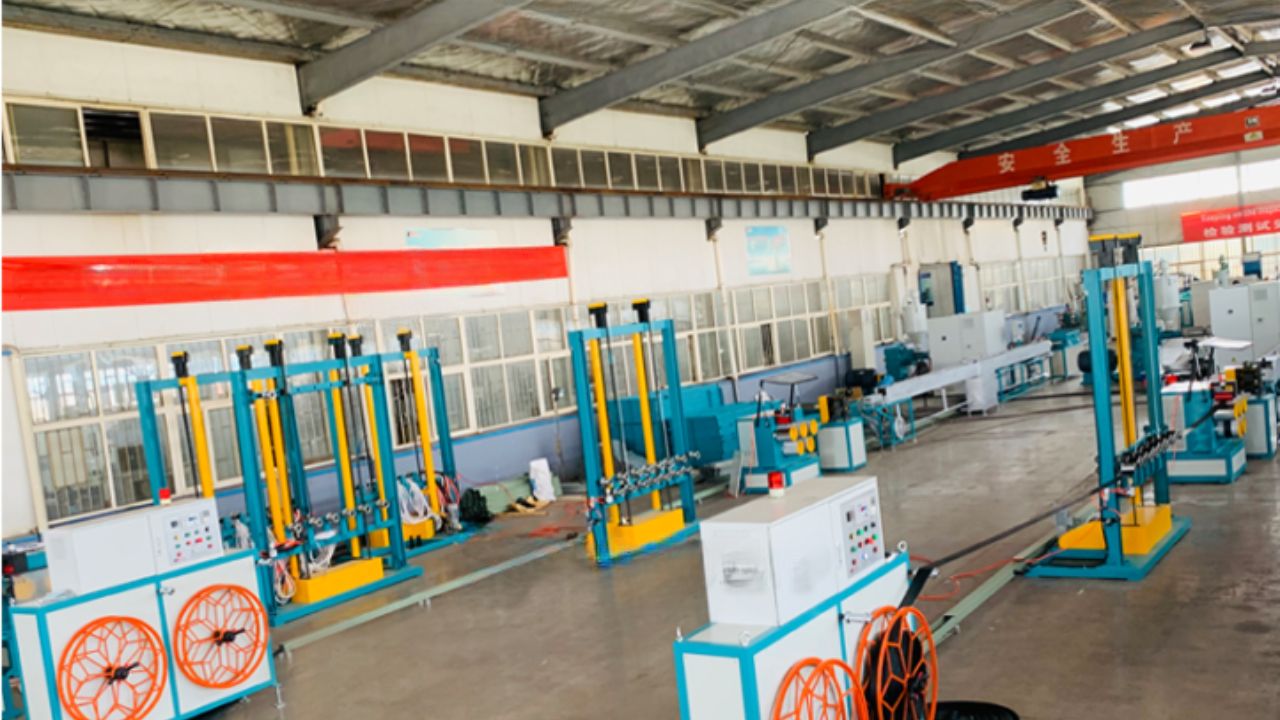

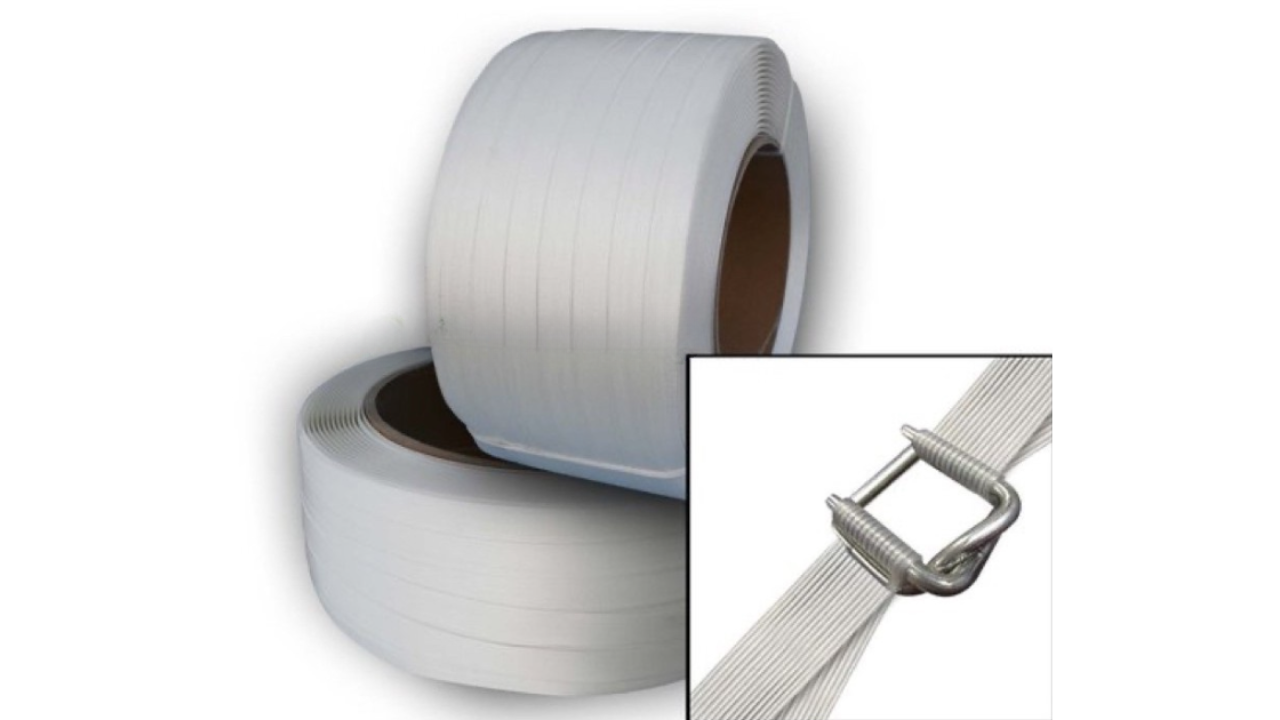

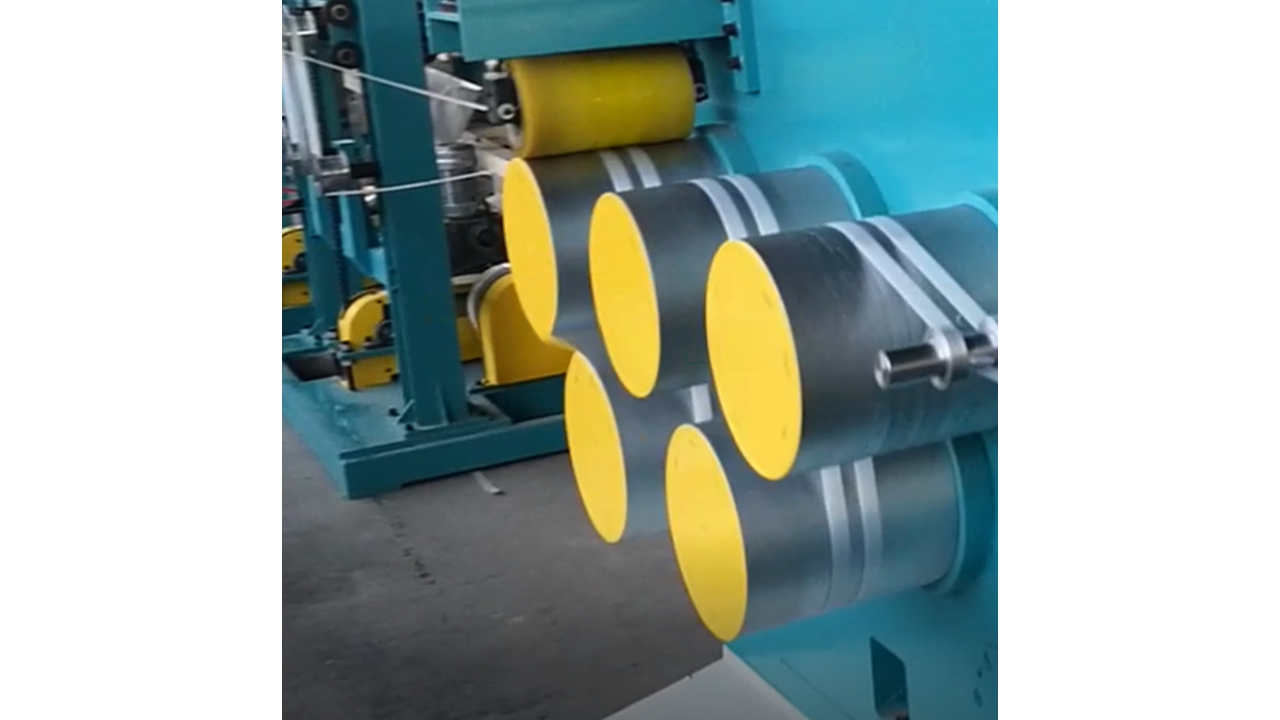

The Co-Drip strapping production line is a dual-function extrusion line that makes two products on one machine: narrow composite cord strap (9 to 32 mm) for industrial packaging and cargo securing, and wide geo strap (40 to 100 mm) for ground reinforcement and retaining structures. Both are made by extruding a polyethylene layer onto high-tenacity polyester yarn, forming a diamond knurl through indented rollers, then cooling the strap in water troughs. It can run one composite core strap or two cord straps at a time, and every strap can be printed inline with your branding.

Buyers know this strap by many names. The same line makes composite cord strap, composite strapping, polyester cord strap, corded polyester strap, polyester (PET) fibre strap, woven cord strap and PP composite cord strap, all of it the modern, as-strong-as-steel alternative to steel band and PP packaging strap. If you searched for any of those terms, this is the machine that produces them.

Built for manufacturers who want to make strap in-house

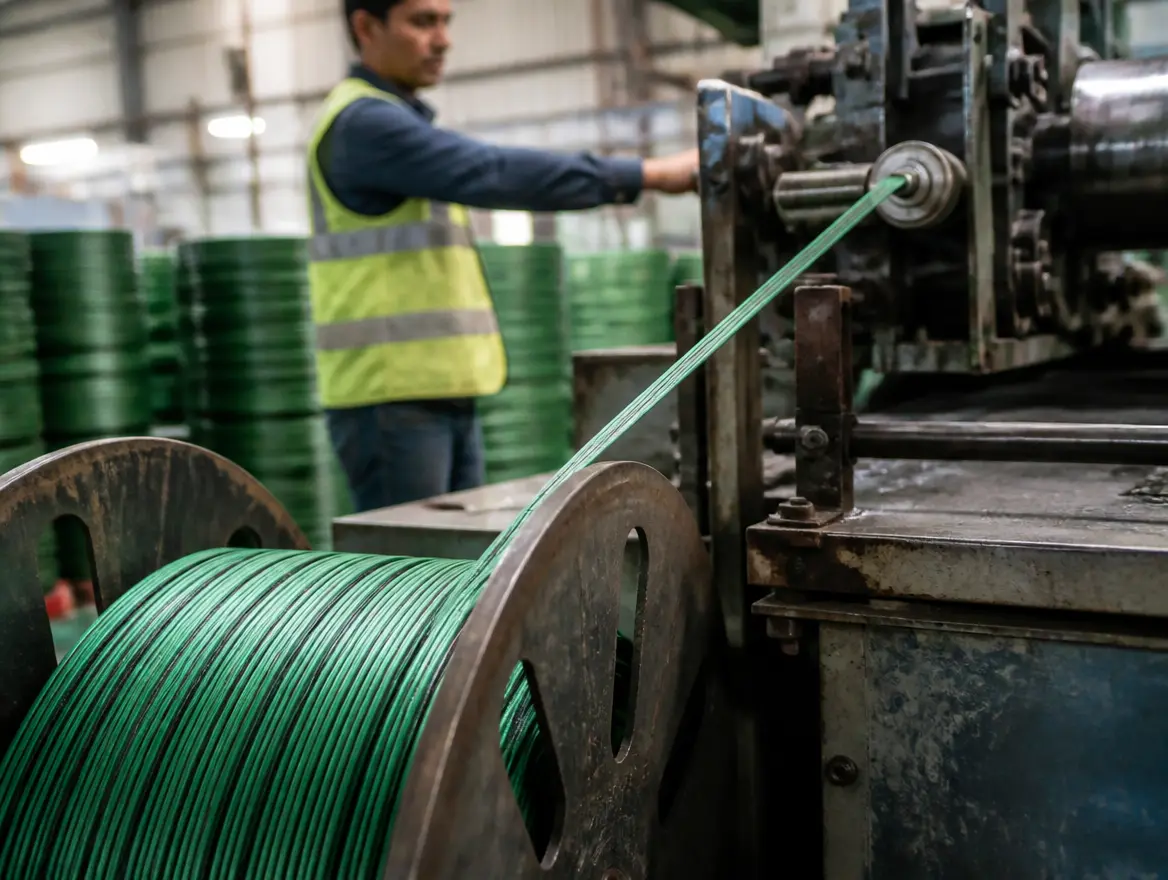

This line is aimed at companies that already buy or import finished strap and want to bring production in-house: existing PET and polyester strap manufacturers expanding capacity, packaging converters adding a composite strap range, and paper, lumber and logistics suppliers who consume large volumes of strap. Instead of importing strap or buying it from a third party, you control quality, supply and branding on your own floor.

Typical output is 100 to 200 kg per hour of composite cord strap at line speeds up to 120 m/min, and 300 to 450 kg per hour in geo strap mode. A PLC control system with online monitoring runs the line, senses water temperature automatically and raises an alarm if a yarn breaks, so a small team can run it reliably across shifts.

Composite strap vs steel strapping

Composite and polyester cord strap is replacing steel banding across Indian industry for clear reasons. It does not rust or stain the goods it secures, it will not spring back and injure operators when cut, and it is far lighter to handle and ship. Depending on width, the corded strap reaches a break strength of roughly 0.5 to 8.5 tonnes, which is why it now replaces steel band even on heavy loads such as steel coil, pipe, timber and brick. It also keeps tension well and absorbs shock during transport, which protects loads better than rigid steel.

• Safety: no sharp recoil, no rust, and far lighter to handle than steel band.
• Load protection: retained tension and shock absorption guard cargo in transit.
• Branding: straps can be printed inline with your company name, logo and batch details.
• Durability: chemical resistant, weather resistant, will not rust or rot, and re-tensionable.
• Cost: in-house production removes import margins and lead time on bought-in strap.

Industries that use this strap in India

One line can serve almost any sector that bundles, palletises or secures a load. In India that includes:

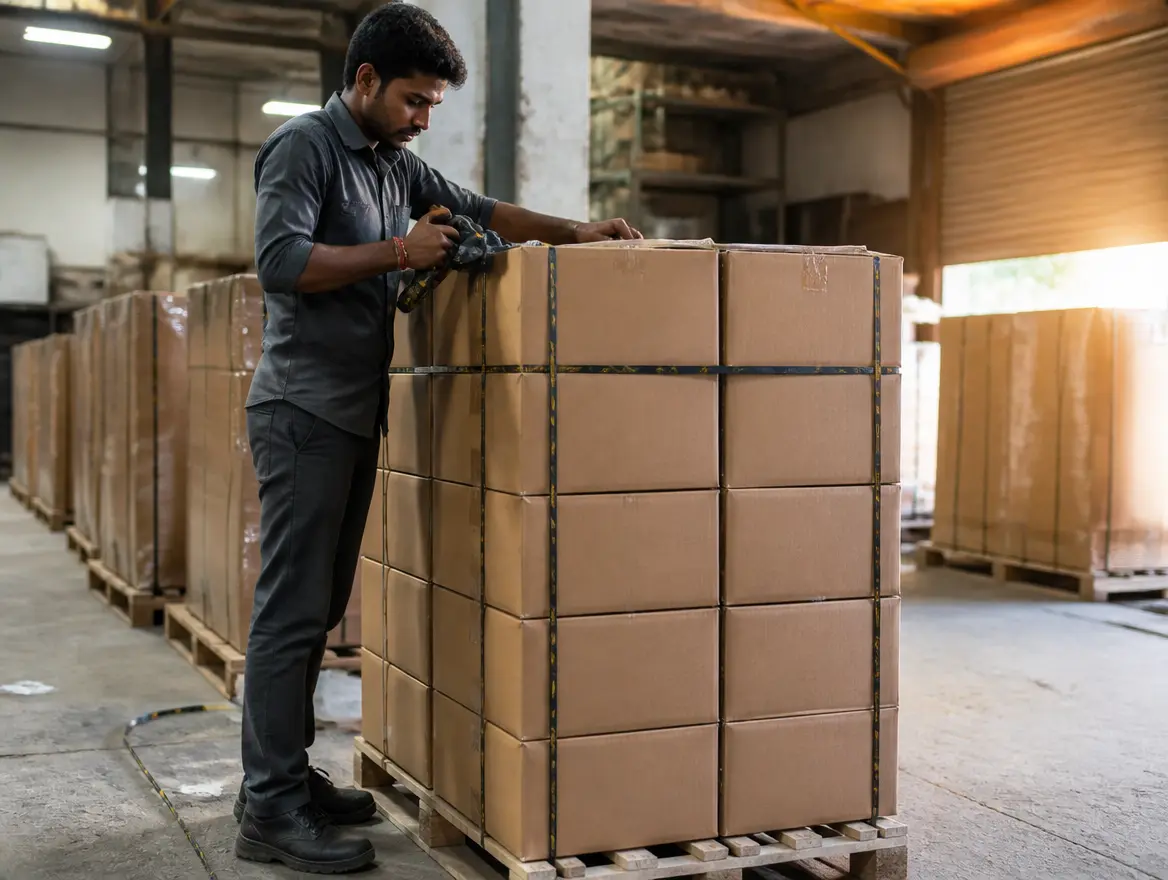

• Paper, printing and packaging: bundling paper reels, cartons, pallets and export consignments.
• Timber and wood: sawmills, plywood, laminates, MDF and furniture bundling.
• Steel and metals: steel coil, pipe, tube, wire rod, aluminium sections and metal profiles, where high break strength matters.
• Building materials: bricks, blocks, tiles, cement bags, ceramics and sanitaryware.
• Textiles and agriculture: cotton and fibre bales, yarn cartons and agricultural produce.
• Glass, bottling, food and FMCG: palletised glass, bottles, cans and consumer goods.
• Logistics and export: container loading, cargo securing and third-party warehousing.

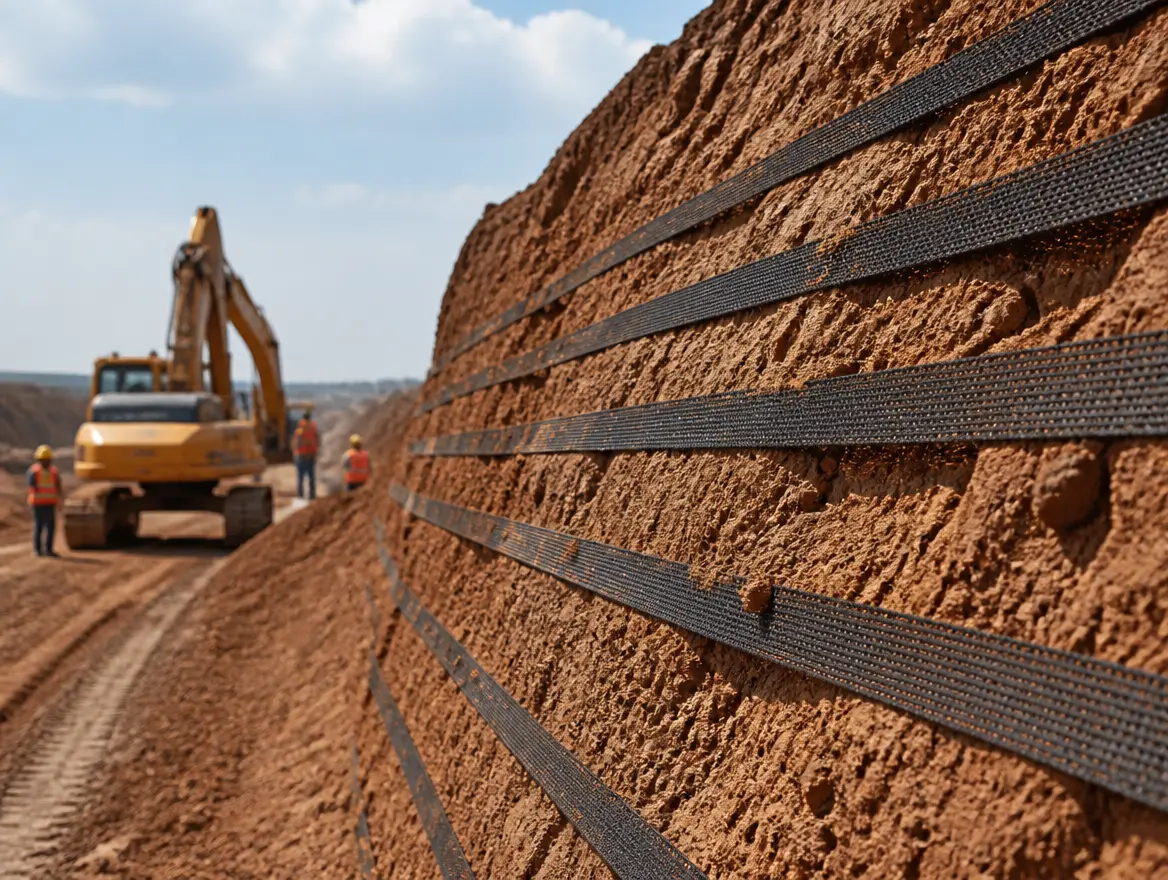

• Civil and infrastructure (geo strap mode): soil reinforcement, retaining walls, slopes and road or rail embankments.

Why source it through Magnum Resources

Magnum Resources is the authorised India partner for Co-Drip strapping technology. Work with us and one team carries the whole project: sizing the line with the factory, the import and customs, the installation, and operator training at start-up. Spares and support afterwards run through the same people, not a third party.

If you are evaluating a composite strap manufacturing machine or a full polyester fiber strapping production line for an Indian plant, talk to our engineers about throughput targets, strap specifications and site requirements. We will give you accurate specs, an honest lead time and a configured quotation.
