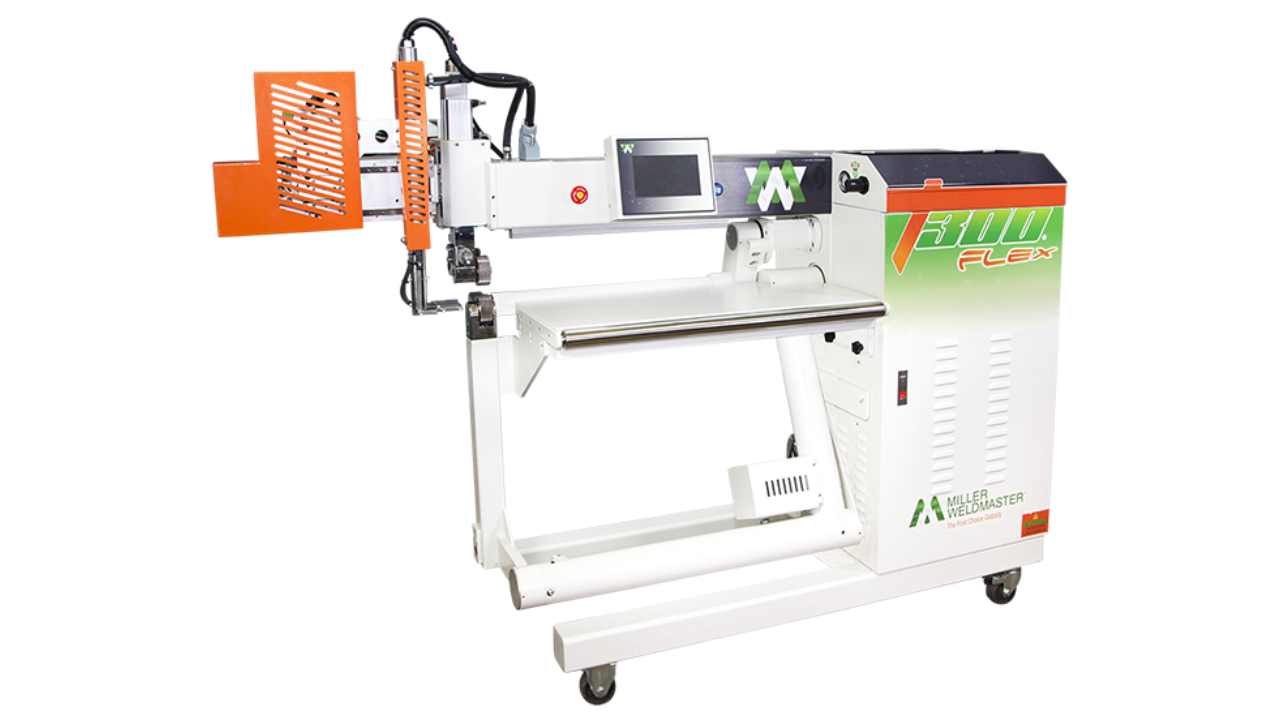

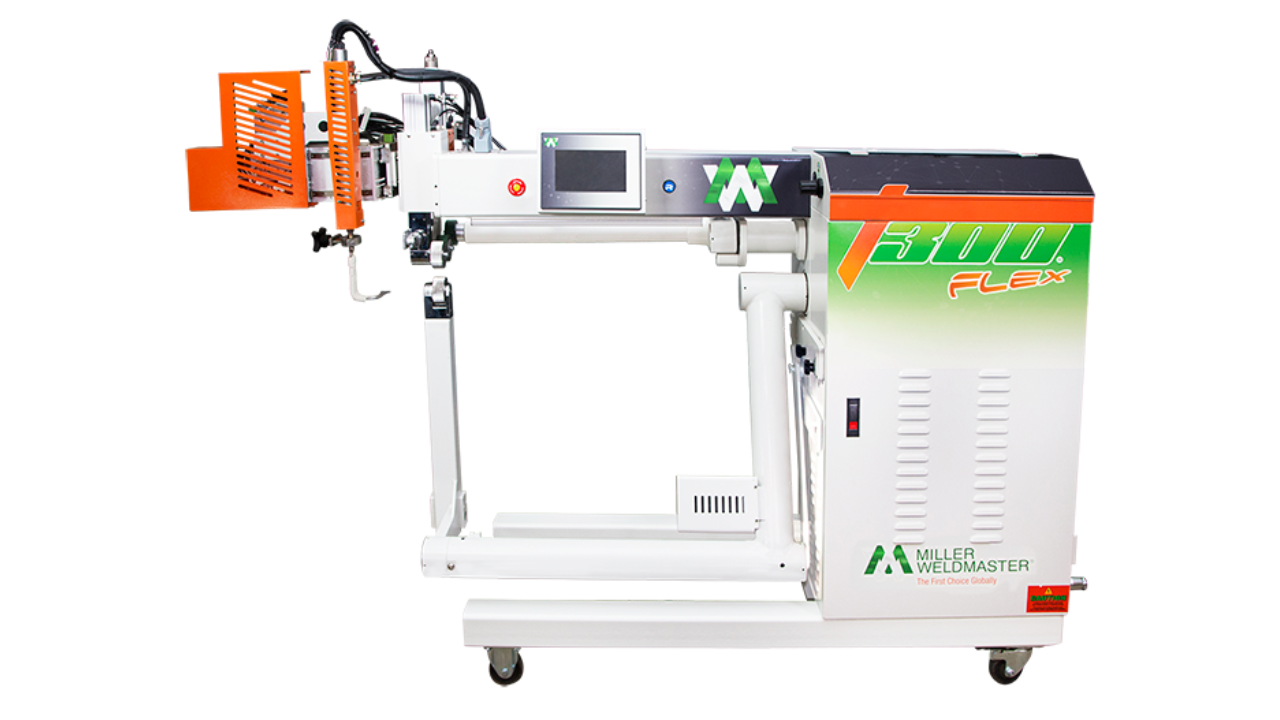

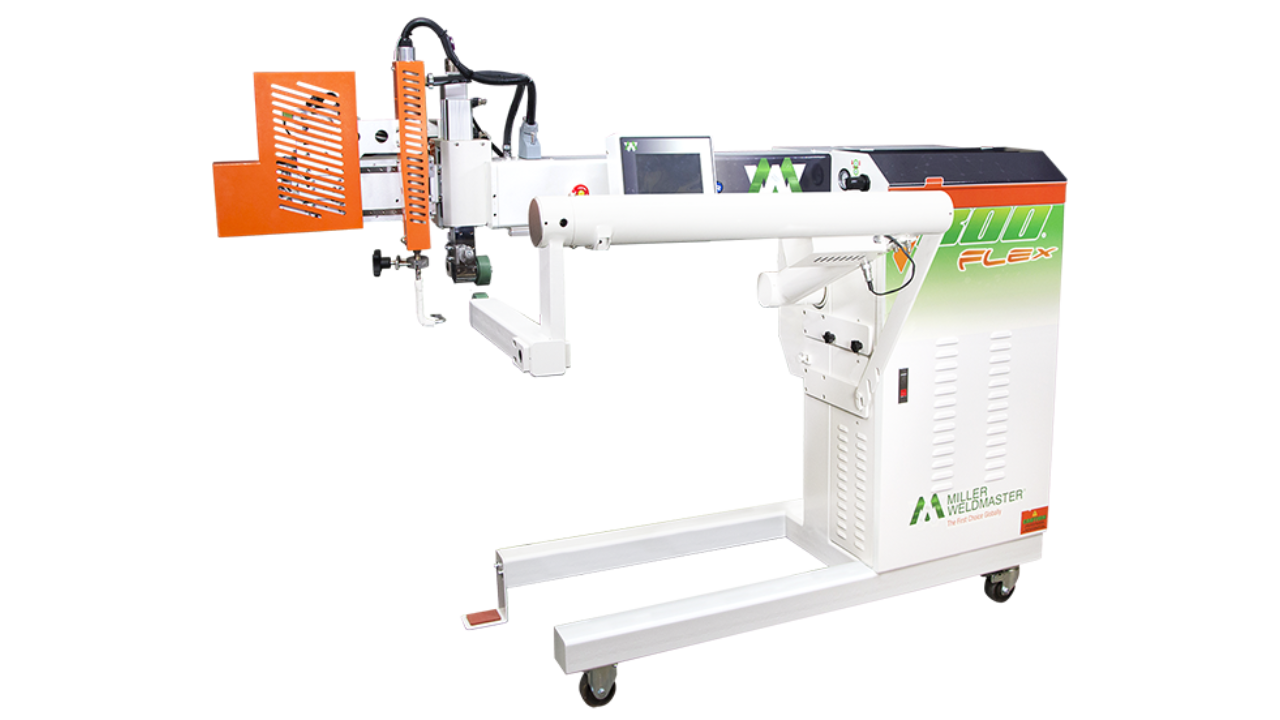

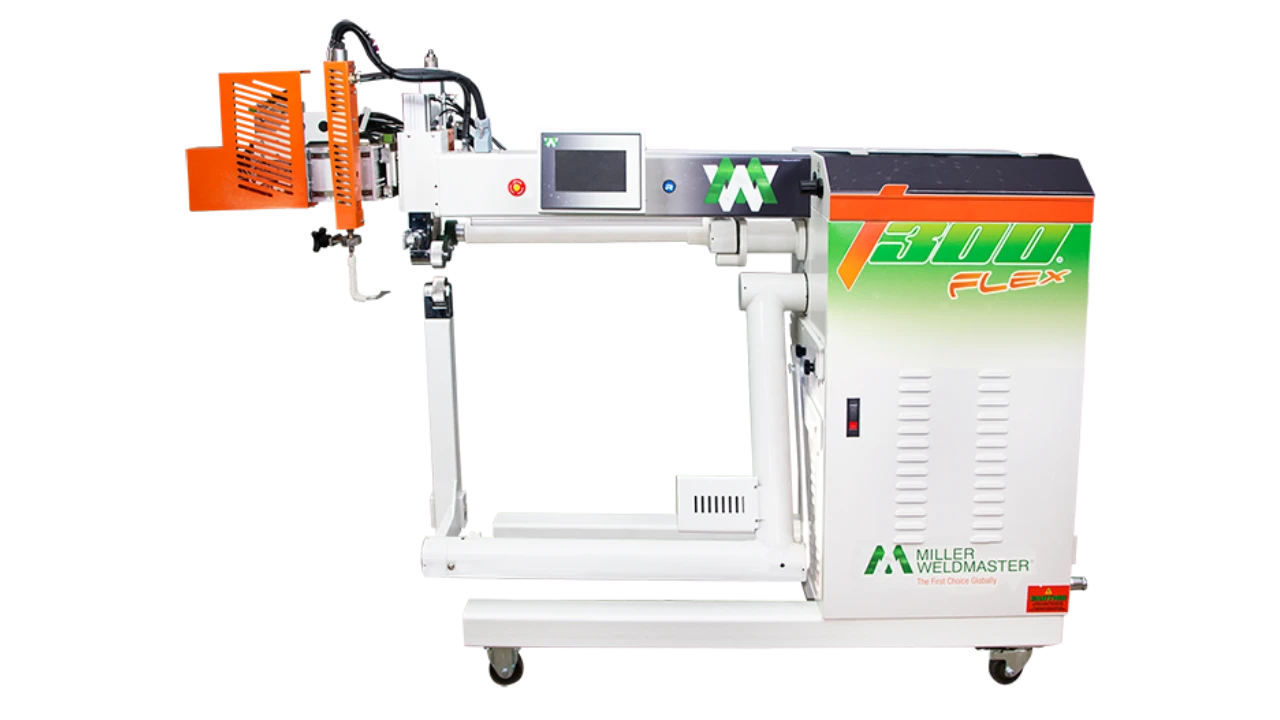

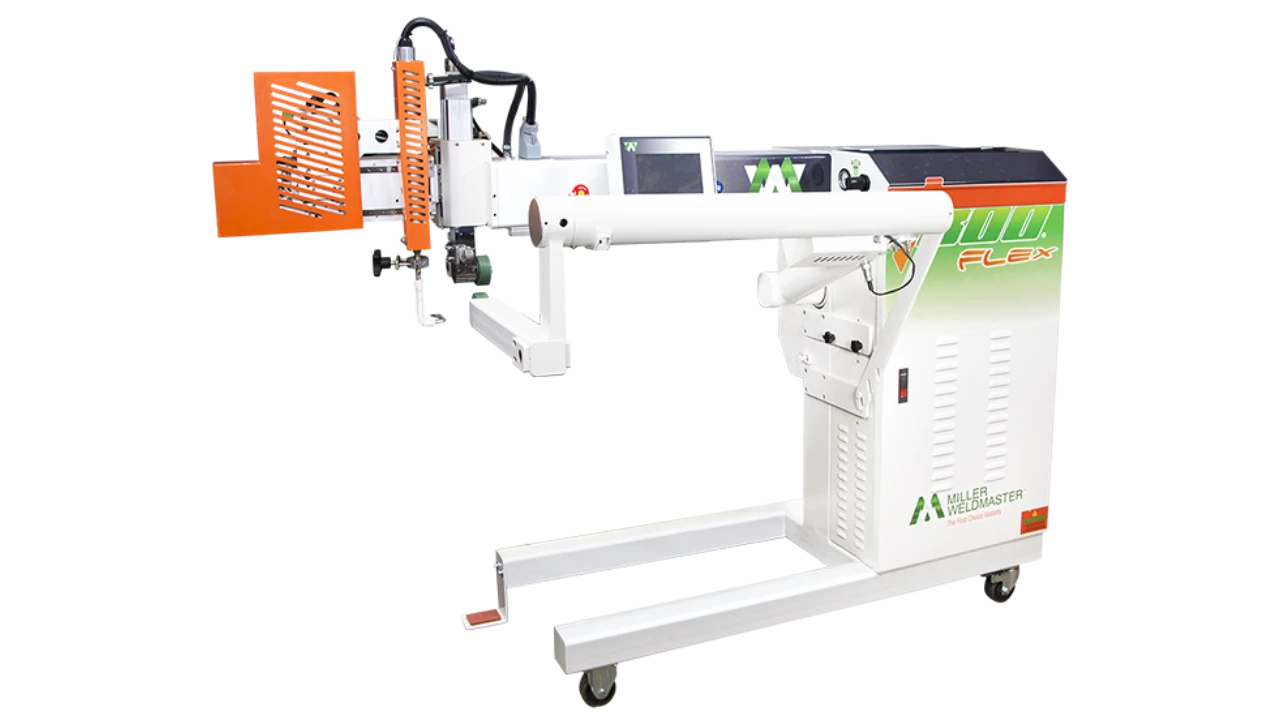

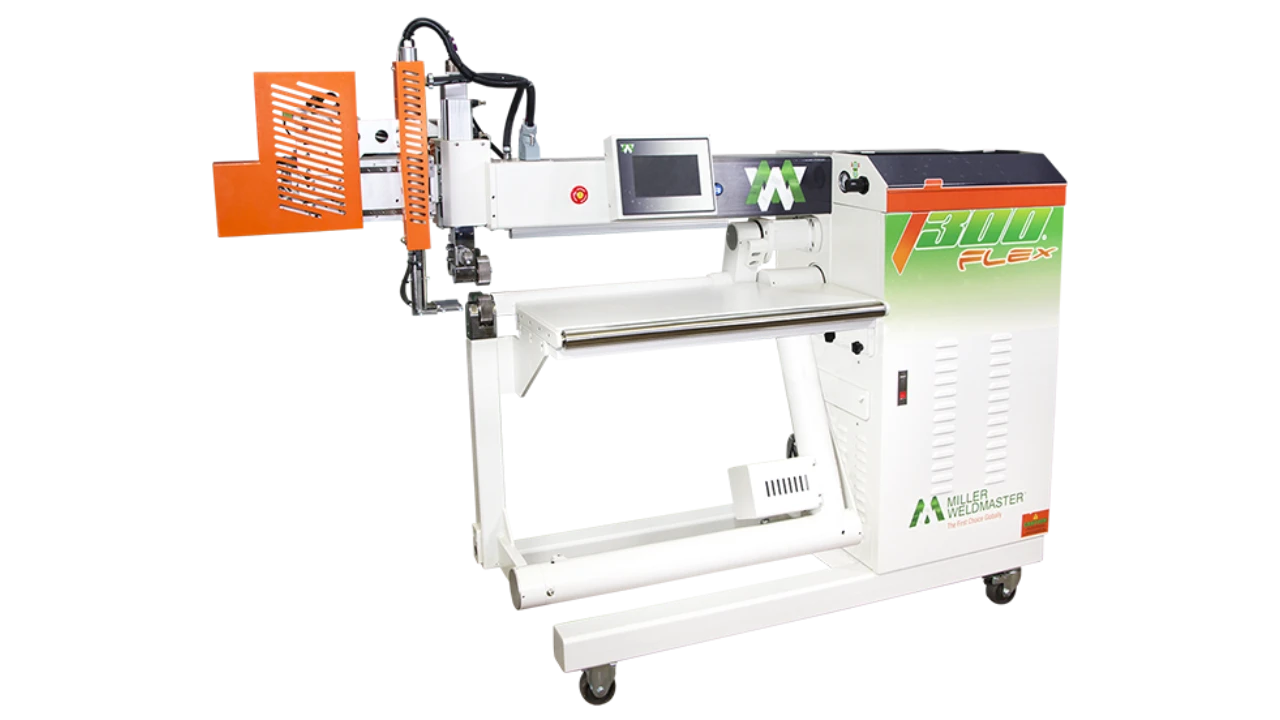

Miller Weldmaster T300 Flex Hot Air & Hot Wedge Welding Machine
Weld coated fabric into strong, waterproof seams at up to 30 m/min, with both hot air and hot wedge on one machine and 19 seam types. The Miller Weldmaster T300 Flex is built in the USA, supplied, installed and supported across India by Magnum Resources.
Up to 30 m/min
Welding Speed
10-50 mm
Seam Width
19 Seam Types
Configurable
USA
Country of Origin
12-16 weeks
Typical Lead Time
Air + Wedge
Dual Weld Method
Factory-Backed
Install & Training
Overview
About this machine
What the T300 Flex welds
The Miller Weldmaster T300 Flex is a versatile tarpaulin welding machine that uses two methods on one bench: hot air, where heated air softens the material before pressure fuses it, and hot wedge, where a heated metal wedge passes between the layers and pressure rolls bond them. It welds at up to 30 m/min, lays a seam 10 to 50 mm wide, and produces 19 seam types, straight or curved, on PVC, vinyl, acrylic, polyurethane and technical textiles.
Buyers know this machine by many names. The T300 Flex answers searches for a tarpaulin welding machine, a hot air welding machine, a hot wedge welding machine, an industrial plastic welding machine, a banner welding machine, a geomembrane welding machine and a PVC fabric welder. If you searched for any of those, this is the machine that does the work.
Built for coated-fabric fabricators
The T300 Flex is the universal welder for plants that join coated and technical fabric across many products. Tarpaulin and cover makers, tent, shelter and structure builders, geomembrane and containment fabricators, truck-curtain and roller-door makers, and roofing-membrane and pool-cover producers all use it because one machine, with quick-change guides and dual arms, covers their whole seam range. A touch screen with recipe storage recalls the settings for each job, so output does not depend on the operator re-dialling parameters.
The dual arms configure straight or curved seams, head adjustments are quick and repeatable, and the machine runs from a single-phase supply at just 6 kW, so it fits a modest workshop as easily as a large fabrication floor.
Hot air and hot wedge vs sewing, and vs RF welding
Stitched seams leave needle holes and rely on thread, so they leak and fail under load. Welding fuses the fabric itself into a continuous, waterproof bond. Hot air and hot wedge work across a broad range of coated and thermoplastic fabrics and are ideal for long, fast, structural seams on tarps, tents and membranes. For the dielectric materials PVC, PU and TPU, where a precise sealed weld with shaped dies is needed, radio-frequency welding on the Miller Weldmaster RFlex is the partner method. Many fabricators run both. Our team will match the method to your fabric and seam.
- Waterproof: a welded seam has no needle holes, so it does not leak or wick water.
- Fast: continuous welding up to 30 m/min on long tarp and membrane seams.
- Versatile: 19 seam types, straight or curved, from one machine with quick-change guides.
- Two methods: hot air for shaped welds, hot wedge for fast straight seams.
- Right method: hot air and wedge for the broad range; RF (RFlex) for sealed PVC, PU and TPU.
Industries that use the T300 Flex
Any plant that welds coated fabric is a fit. Miller Weldmaster lists the T300 Flex across:
- Tarpaulins and covers: tarps, truck side curtains, pool and machine covers.
- Tents, shelters and structures: tents, shelters, awnings and agricultural curtains.
- Geomembranes and containment: geomembranes, containment booms and roofing membranes.
- Signage and advertising: banners, signs and large-format display fabric.
- Access and industrial: roller doors, conveyor belts, ducting and filtration screens.
- Specialist: inflatables, evacuation slides, athletic mats and cured-in-place pipe liners.
Why source the T300 Flex through Magnum Resources
Magnum Resources is the authorised India partner for Miller Weldmaster, the US fabric-welding specialist. The T300 Flex covers a lot of seams, so we agree the seam configuration and guides with the factory around the products you actually make. We then handle the import and customs, install the machine and train your team on the recipe system. Nozzles, wedges and service stay with us once you are welding.
If you are evaluating a tarpaulin welding machine or a hot air and hot wedge welder for a tarpaulin, tent, geomembrane or signage operation in India, talk to our engineers about your fabric, seam types and throughput. We will give you accurate specs, an honest lead time and a configured quotation.
Built For
Who the T300 Flex is built for in India
A hot air and hot wedge welder that fuses coated fabric into strong, waterproof seams at speed, whether you make tarpaulins, tents, geomembranes or truck curtains. Find where you fit below.

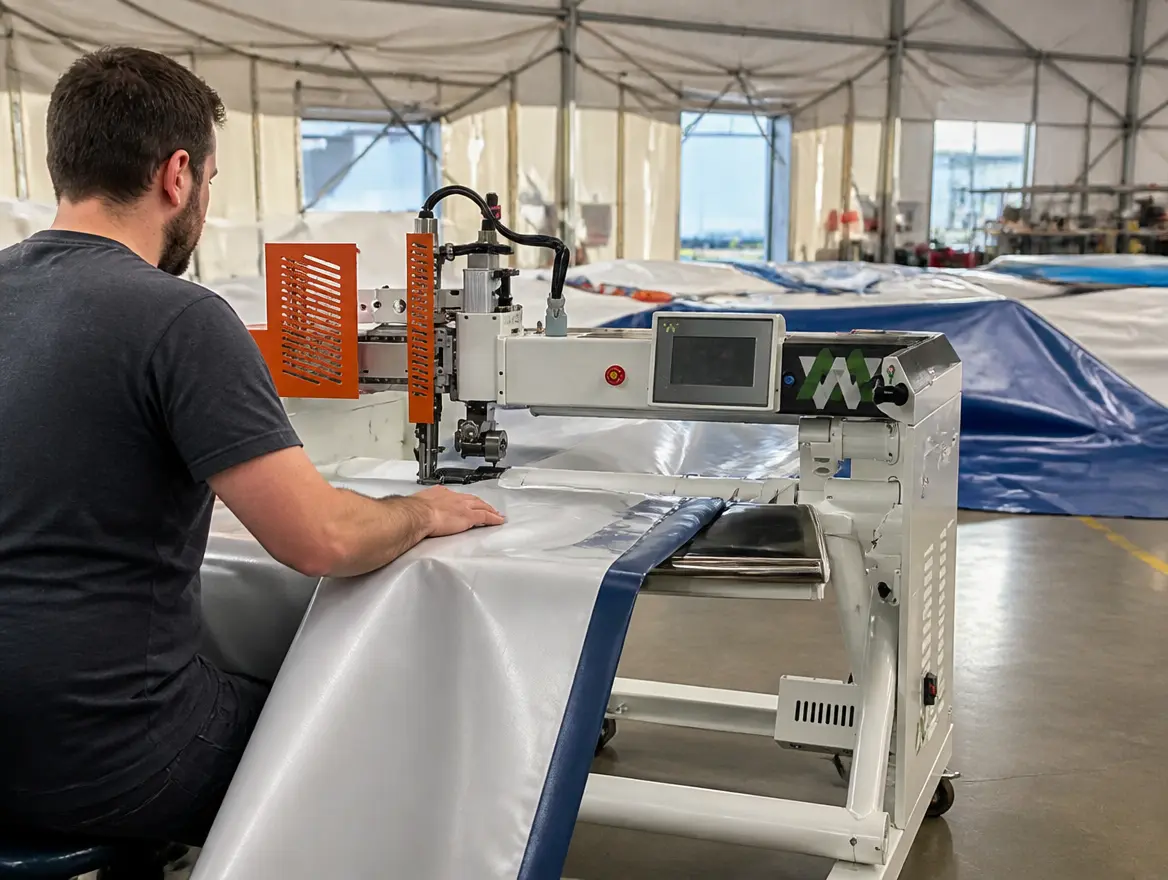

Tents, Shelters & Structures
Weld tent, shelter and awning fabric into fast, waterproof structural seams, straight or curved, on one machine.

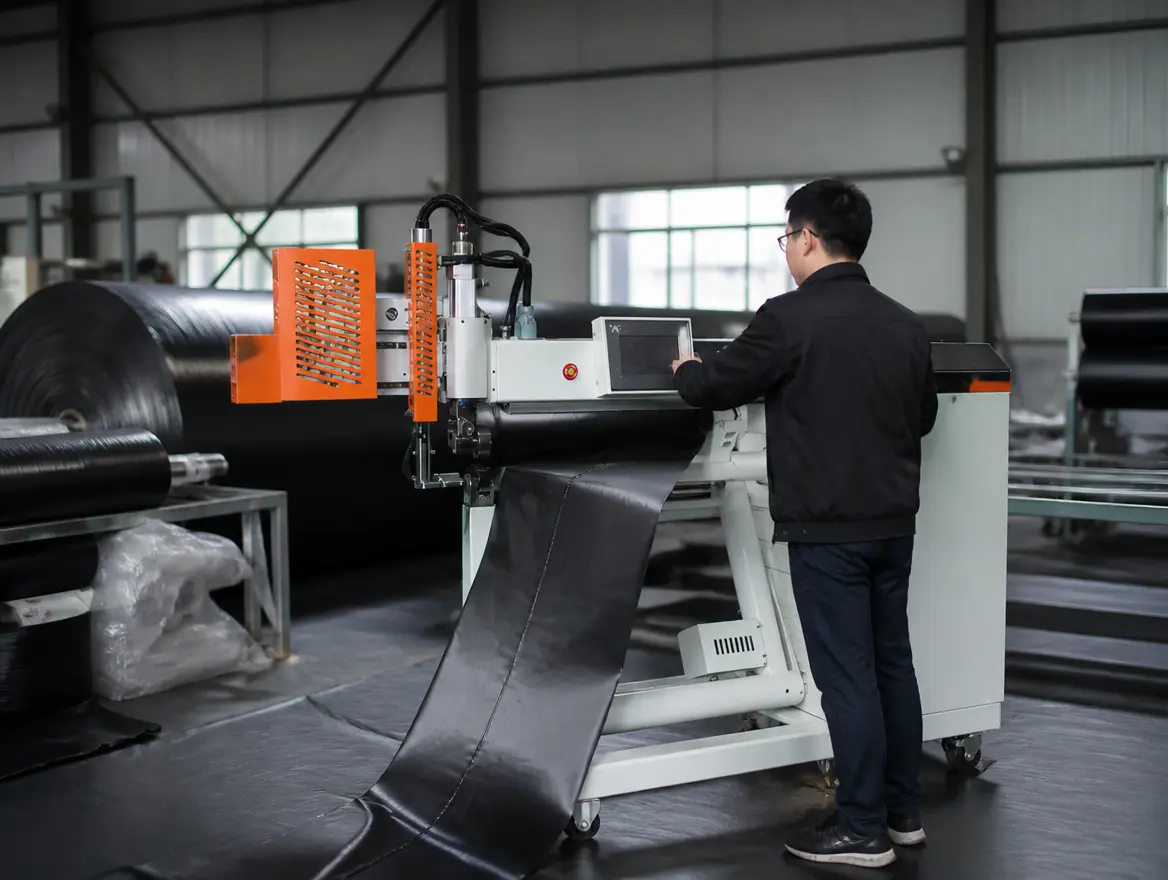

Geomembrane & Containment Fabricators
Weld geomembrane, containment boom and roofing-membrane seams that stay sealed and hold under load.

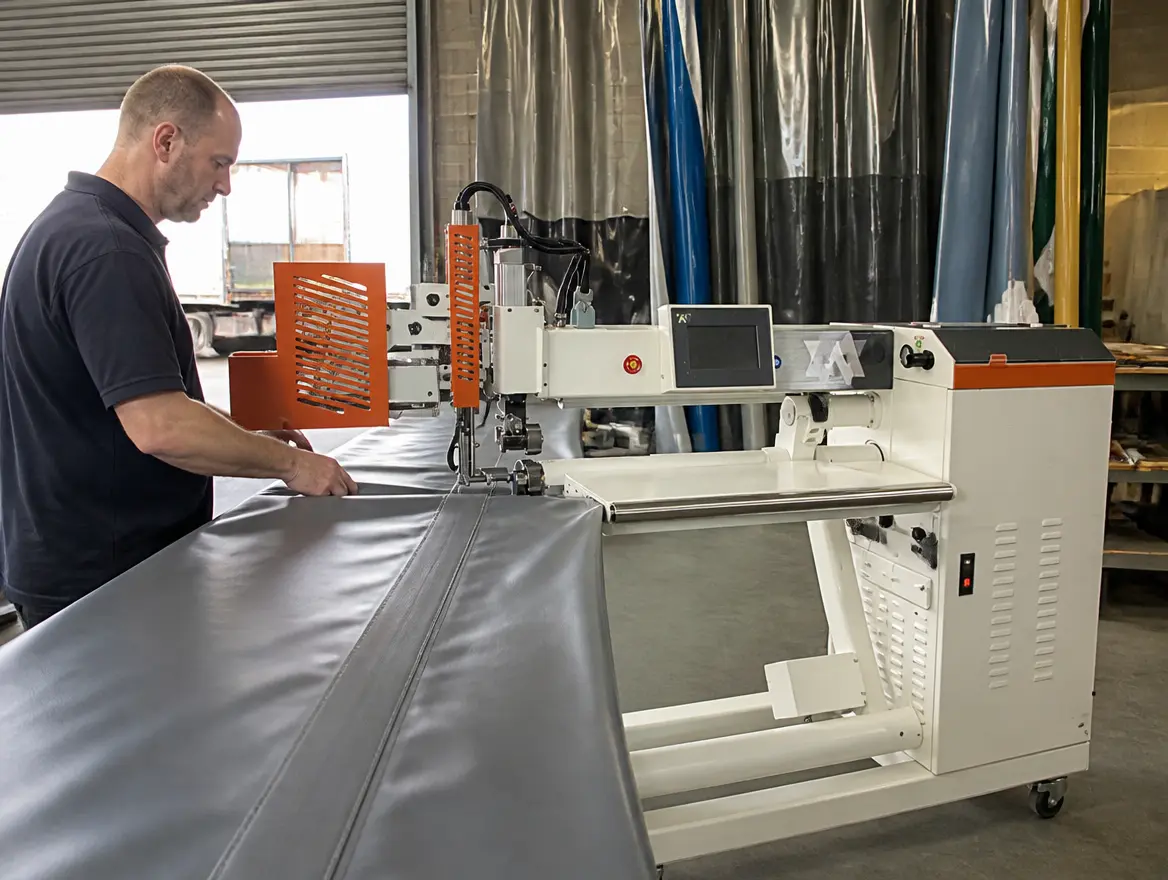

Truck Curtain & Roller Door Makers
Weld truck side curtains, roller doors and agricultural curtains at up to 30 m/min with repeatable recipes.

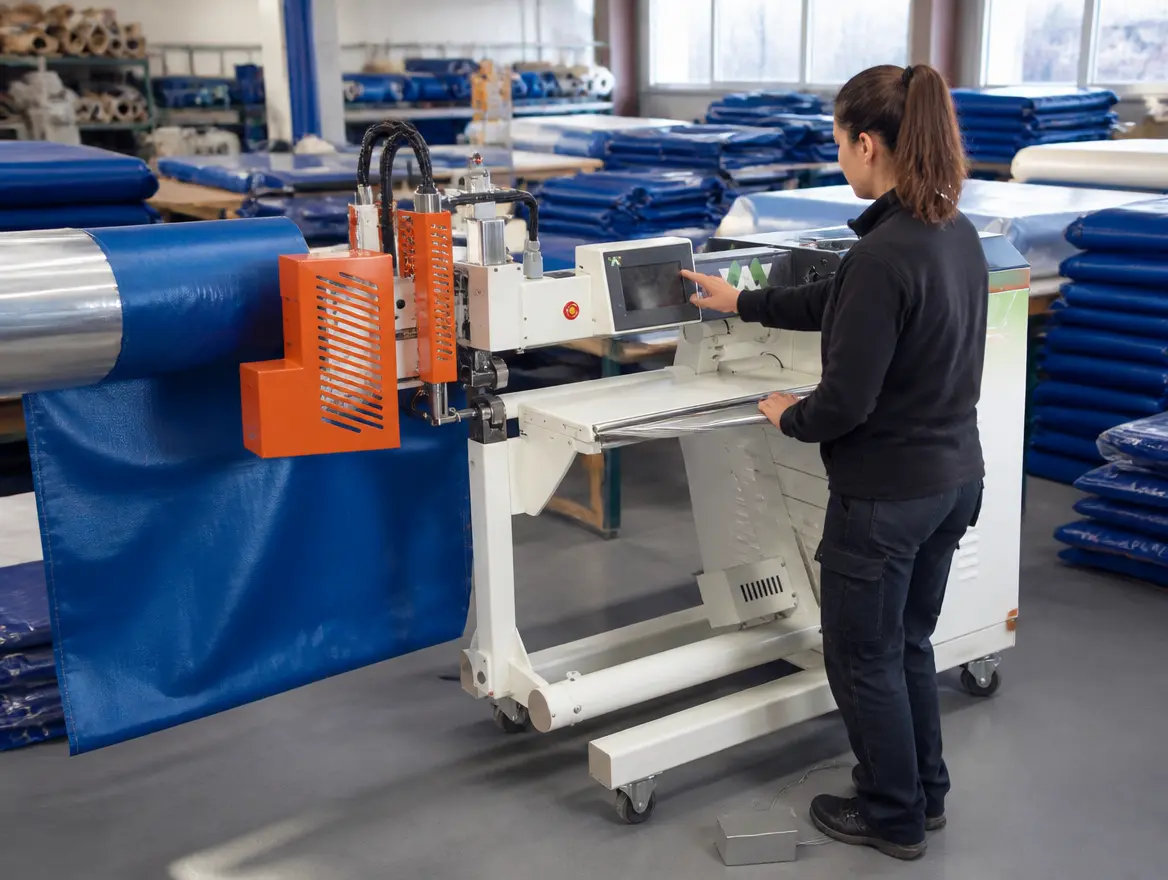

Roofing Membrane & Pool Cover Producers
Weld roofing membrane and pool-cover seams waterproof, with hot wedge for long straight runs.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.
Download Full Datasheet (PDF)Welding Performance
Welding Speed
Up to 30 m/min (100 ft/min)
Seam Width
10 - 50 mm (0.5 - 2")
Throat Width
1 m (39")
Hot Air Max Temp
730°C (1,346°F)
Hot Wedge Max Temp
450°C (842°F)
Welding Methods
Hot Air
Heated air softens the material, then pressure fuses it
Hot Wedge
A heated metal wedge between layers, pressure rolls fuse it
Seam Types
19 configurable seam types, straight or curved
Power & Air Supply
Voltage Options
208-240V single-phase 25A or 380-400V single-phase 16A
Power Consumption
6 kW
Compressed Air
100 psi at 2 cfm (+12 cfm for ShopAir)
Control & Configuration
Control
Touch screen with recipe storage and quick recall
Dual Arms
Configure straight or curved seams
Adjustment
Quick, repeatable head adjustments
Guides
Quick-change seam guides
Materials & Build
Materials
PVC, vinyl, acrylic, polyurethane and technical textiles
Dimensions
0.6 m W × 1.5 m L × 1.5 m H
Weight
433 kg (955 lb)
Manufacturer
Miller Weldmaster, USA
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
Up to 30m/min
Welding Speed
Welds continuous seams at up to 30 m/min, far faster than hand welding or stitching the long seams on tarpaulins, tents and membranes.
19
Seam Types
Dual arms and quick-change guides produce 19 seam types, straight or curved, so a single machine covers your whole product range instead of several jigs.
2-in-1
Hot Air + Hot Wedge
Both methods on one machine: hot air for shaped and detailed welds, hot wedge for fast straight seams, so you match the weld to the job.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Welding Machine
Factory-tested at Miller Weldmaster in the USA before dispatch
Import & Customs
Freight and clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with OEM-backed engineers
Operator Training
On-site run-in and touch-screen recipe training at start-up
Factory-Supplied Spares
Nozzles, wedges and wear parts sourced to order from Miller Weldmaster
Technical Support
Remote and OEM-backed support after start-up
Buying Through Magnum
One accountable partner, from quote to first weld
Magnum Resources is the authorised India partner for Miller Weldmaster, the US industrial fabric welding specialist. One company handles the whole purchase. We settle the seam configuration and guides with the factory, take care of the import and customs, and have our engineers install the T300 Flex and train your team on the recipe system. After start-up, service is still ours to handle.
Authorised India Partner
A direct line to Miller Weldmaster in the USA for specification, pricing and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
OEM-backed engineers set the welder up and train your operators in person.
Factory-Supplied Spares
Genuine nozzles, wedges and wear parts sourced directly from Miller Weldmaster.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
High welding speed up to 30 m/min (100 ft/min) for long, continuous seams
Produces 19 seam types, straight or curved, with quick-change guides and dual arms
Seam width from 10 to 50 mm with a 1 m throat for handling large panels
Touch-screen control with recipe storage for quick, repeatable settings between jobs
Welds PVC, vinyl, acrylic, polyurethane and technical textiles into waterproof seams
Runs from a single-phase supply at just 6 kW, so it fits a modest workshop
Built in the USA by Miller Weldmaster, supplied, installed and supported across India by Magnum
Watch It Run
See it in action
Real footage from installed sites and OEM demonstrations.
Documentation
Technical downloads
Brochures, datasheets and CAD files, available on request.
FAQs
Questions Indian buyers ask us
Real questions from our last 50 enquiries, answered upfront.
It suits fabricators that join coated or technical fabric across many products: tarpaulin and cover makers, tent, shelter and structure builders, geomembrane and containment fabricators, truck-curtain and roller-door makers, and roofing-membrane and pool-cover producers. One machine covers their whole seam range.
Hot air uses heated air to soften the material before pressure fuses it, which suits shaped and detailed welds. Hot wedge passes a heated metal wedge between the layers while pressure rolls bond them, which suits fast straight seams. The T300 Flex does both on one machine, so you match the method to the job.
Stitched seams leave needle holes and rely on thread, so they can leak and fail under load. Welding fuses the fabric itself into a continuous, waterproof bond that is stronger and does not wick water, which is why tarpaulin, tent and membrane makers weld rather than sew structural seams.
Hot air and hot wedge on the T300 Flex work across a broad range of coated and thermoplastic fabrics and excel at long, fast, structural seams. Radio-frequency welding on the RFlex suits dielectric materials, PVC, PU and TPU, where a precise sealed weld with shaped dies is needed. Many fabricators run both, and we help you choose.
It welds at up to 30 m/min with a seam width of 10 to 50 mm and a 1 m throat. It handles PVC, vinyl, acrylic, polyurethane and technical textiles, and produces 19 seam types, straight or curved.
Price depends on the seam configuration and guides, so we quote each project individually. Typical lead time is around 12 to 16 weeks including manufacture, freight and customs, after which Magnum coordinates installation and operator training in India.
Magnum is the authorised India partner for Miller Weldmaster. We source the machine from the factory, manage freight and customs, coordinate installation and start-up with OEM-backed engineers, train your operators on the recipe system, and supply genuine nozzles, wedges and wear parts to order. You keep one point of contact throughout.
Tarpaulin and truck-curtain makers, tent, shelter and awning builders, geomembrane and containment fabricators, roofing-membrane and pool-cover producers, banner and signage finishers, and roller-door, conveyor-belt and inflatable manufacturers. Any plant welding coated PVC or technical fabric is a fit.
