Miller Weldmaster HG50 Banner & Sign Finishing Machine
Official manufacturer page: weldmaster.com
Weld, cut and grommet banners, billboards and signs in one hot-air station at up to 6.5 m/min, on material 2.5 m or 3.2 m wide, with photo-sensed cutting and automatic grommet placement. The HG50 is a US-built automated sign-finishing machine, supplied, installed and supported across India by Magnum.
Up to 6.5 m/min
Welding Speed
2.5 / 3.2 m
Material Width
Weld + Cut + Grommet
In One Station
USA
Country of Origin
12-16 weeks
Typical Lead Time
CE
Build & Certification
Factory-Backed
Install & Training
Overview
About this machine
What the HG50 does
The Miller Weldmaster HG50 is a banner finishing machine that combines three steps into one hot-air station: it welds the hem, cuts the panel, and sets the grommets. The wide-format printed roll is fed in, welded along the edge with hot air, trimmed to size, and finished with grommets placed by an integrated photo eye. One operator runs the whole line from a single station.
Buyers know this kind of machine by several names: a banner finishing machine, a banner welding machine, a banner hemming machine, a hot-air sign welder or a grommet machine. If you searched for any of those, this is the machine that does the work.
Built for high-volume banner and sign production
The HG50 is for print shops and sign makers finishing banners, billboards and signage at volume. Hot-air welded hems do not need stitching, so there are no needle holes and no thread to fail, and the finished edge takes pockets, rope or grommets cleanly. Photo-sensing keeps the cut line and the grommet spacing accurate across long runs, and linear-actuated unwinds with braked tension control keep the material flat as it feeds.
HG50 welding, cutting and grommeting

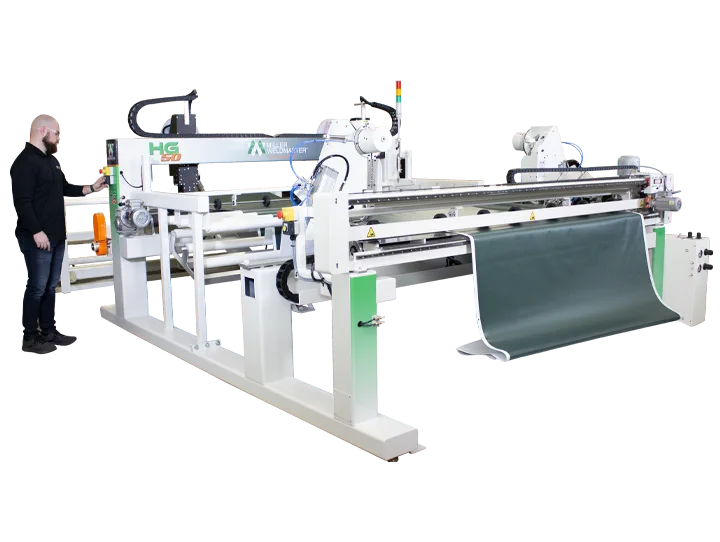

- Hot-air welding: seals hems and pockets up to 730 C, with no stitching or thread.

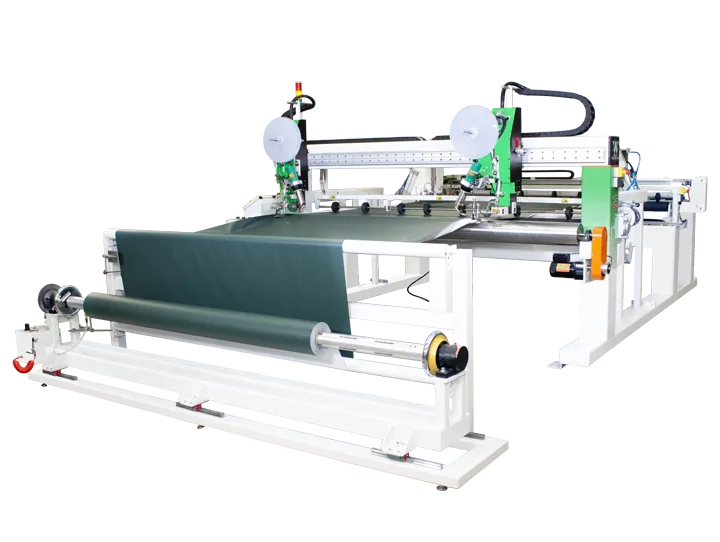

- Dual-direction cutting: photo-sensed cutting trims the panel to size in either direction.

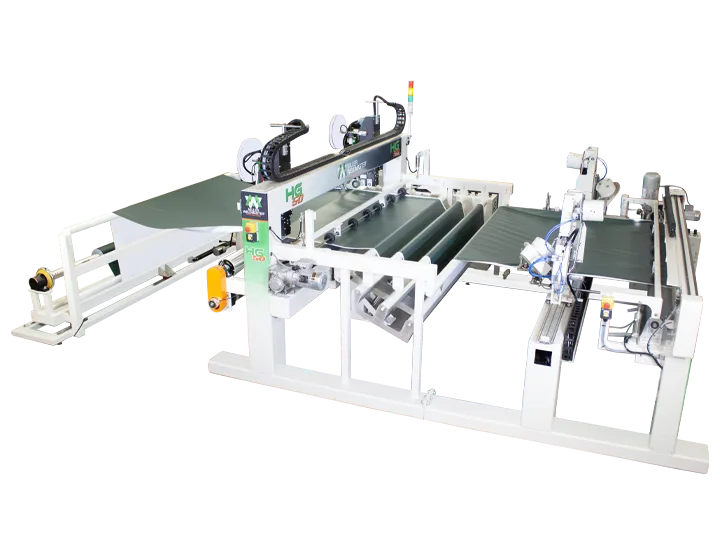

- Automatic grommets: places plastic or metal grommets with photo-eye spacing.
- Seam range: hem, hem with pocket, hem with rope and rope seams.
- Throughput: up to 6.5 m/min on material 2.5 m or 3.2 m wide.
Why source the HG50 through Magnum
Magnum is the authorised India partner for Miller Weldmaster, whose Ohio factory has built fabric welding machinery for nearly 50 years. We confirm the material width and grommet setup for your work with the factory, manage the import and customs, install the line and train your operators, and keep service and spares with us in India rather than an overseas help desk. Standard replacement parts ship from the Miller Resolution Center within 48 hours.
Built For
Who the HG50 is built for in India
An all-in-one banner finishing machine for print shops and sign makers who weld, cut and grommet signage at volume. Find where you fit below.
Banner & Billboard Producers
Finish printed banners and billboards end to end, welding the hem, cutting to size and setting grommets in one pass.
Sign & Display Finishing
Produce clean hot-air welded edges on signs and displays, with pockets or rope for hanging and mounting.
High-Volume Print Finishing Shops
Move large-format print volume through welding, cutting and grommeting without separate manual stations.
Single-Operator Banner Lines
Run a full banner finishing line with one operator, with photo-sensing keeping cuts and grommet spacing accurate.
Specifications
Technical data
Specifications are supplied by the manufacturer. Custom configurations available. Speak to our engineers.
Request Full DatasheetWelding & Output
Welding Method
Hot air
Welding Speed
Up to 6.5 m/min (21 ft/min)
Material Width
2.5 m or 3.2 m
Seam Width
25 mm or 50 mm (1" or 2")
Max Temperature
730 C (1,346 F)
Finishing
Cutting
Photo-sensed dual-direction cutting
Grommets
Plastic or metal, automatic photo-eye placement
Seam Types
Hem, hem with pocket, hem with rope, rope
Feeding
Linear-actuated unwinds with braked tension control
Power & Utilities
Power Supply
240 V 3-phase (60 A) or 400 V 3-phase (40 A)
Air
5 cfm at 100 psi
Build & Size
Footprint
4.94 m L x 3.51 m W x 1.98 m H
Weight
~1,928 kg
Manufacturer
Miller Weldmaster, USA
Return on Investment
What this machine saves you
The numbers Indian manufacturers use to justify the CAPEX internally.
Up to 6.5m/min
Finishing Speed
Welding, cutting and grommeting happen in one feed at up to 6.5 m/min, so a printed roll comes off the line finished instead of moving through three separate manual steps.
One
Operator, One Station
A single operator runs the full finishing line from one station, which keeps labour off banner finishing at the volumes a busy print shop turns out.
No Stitch
Welded Hems
Hot-air welded hems have no needle holes and no thread, so outdoor banners do not fray or wick water at the edge, and pockets, rope and grommets sit cleanly.
Complete Package
What's included with every machine
From factory to running on your floor, Magnum handles it end to end.
The Finishing Machine
Factory-tested at the Miller Weldmaster plant in the USA before dispatch
Import & Customs
Sea freight and customs clearance to your site, handled by Magnum
Installation & Setup
Coordinated by Magnum with factory-backed engineers
Operator Training
On-site run-in and operator training at start-up
Factory-Supplied Spares
Wear parts shipped from the Miller Resolution Center within 48 hours
Technical Support
Factory-backed support after start-up, with service kept in India
Buying Through Magnum
One accountable partner, from quote to first banner
Magnum is the authorised India partner for Miller Weldmaster, whose Ohio factory has built fabric welding machinery for nearly 50 years. We confirm the material width and grommet setup with the factory, manage import and customs, install the line and train your operators, then keep service and spares with us in India. Standard parts ship from the Miller Resolution Center within 48 hours.
Authorised India Partner
A direct link to the Miller Weldmaster factory for specification and engineering support.
One Point of Accountability
A single team for sourcing, import, customs, installation and training.
On-Site Installation & Training
Factory-backed engineers set the line up and train your operators in person.
48-Hour Spare Parts
Standard parts ship from the Miller Resolution Center within 48 hours.
Key Features
Engineering deep-dive
For maintenance teams and production engineers who want to look under the hood.
Hot-air welding of hems and pockets, up to 730 C, with no stitching or thread
Welding speed up to 6.5 m/min on material 2.5 m or 3.2 m wide
Photo-sensed dual-direction cutting trims each panel to size
Automatic plastic or metal grommet placement with photo-eye spacing
Seam range: hem, hem with pocket, hem with rope and rope seams
Linear-actuated unwinds with braked tension control for flat feeding
Built in the USA by Miller Weldmaster, supplied and supported across India by Magnum
Documentation
Technical downloads
Brochures, datasheets and guides, available on request.
FAQs
Questions Indian buyers ask us
Common questions Indian buyers ask us, answered upfront.
It suits print shops and sign makers finishing banners, billboards and signage at volume. It is built for a single operator to weld, cut and grommet a printed roll in one pass rather than across separate manual steps.
It hot-air welds the hem or pocket, cuts the panel to size with photo-sensed dual-direction cutting, and places plastic or metal grommets automatically. One feed produces a finished banner.
It runs material 2.5 m or 3.2 m wide at welding speeds up to 6.5 m/min. Realistic throughput depends on the seam, the grommet spacing and the material, and we confirm it for your work.
Seam types include hem, hem with pocket, hem with rope and rope. Grommets can be plastic or metal, placed automatically with a photo eye for consistent spacing.
A hot-air welded hem has no needle holes and no thread, so the edge is clean, strong and does not fray or wick water. It also takes pockets, rope and grommets cleanly, which matters for outdoor signage.
Price depends on the material width, grommet setup and options, so we quote each project individually. Typical lead time is around 12 to 16 weeks including manufacture, sea freight and customs, after which Magnum coordinates installation and operator training in India.
Magnum is the authorised India partner for Miller Weldmaster. We size the machine with the factory, manage freight and customs, install the line and train your operators, and keep service and spares in India. Standard replacement parts ship from the Miller Resolution Center within 48 hours.
