Biliardo Multi-Ply Automatic Fabric Cutting Machine

What the Biliardo cuts

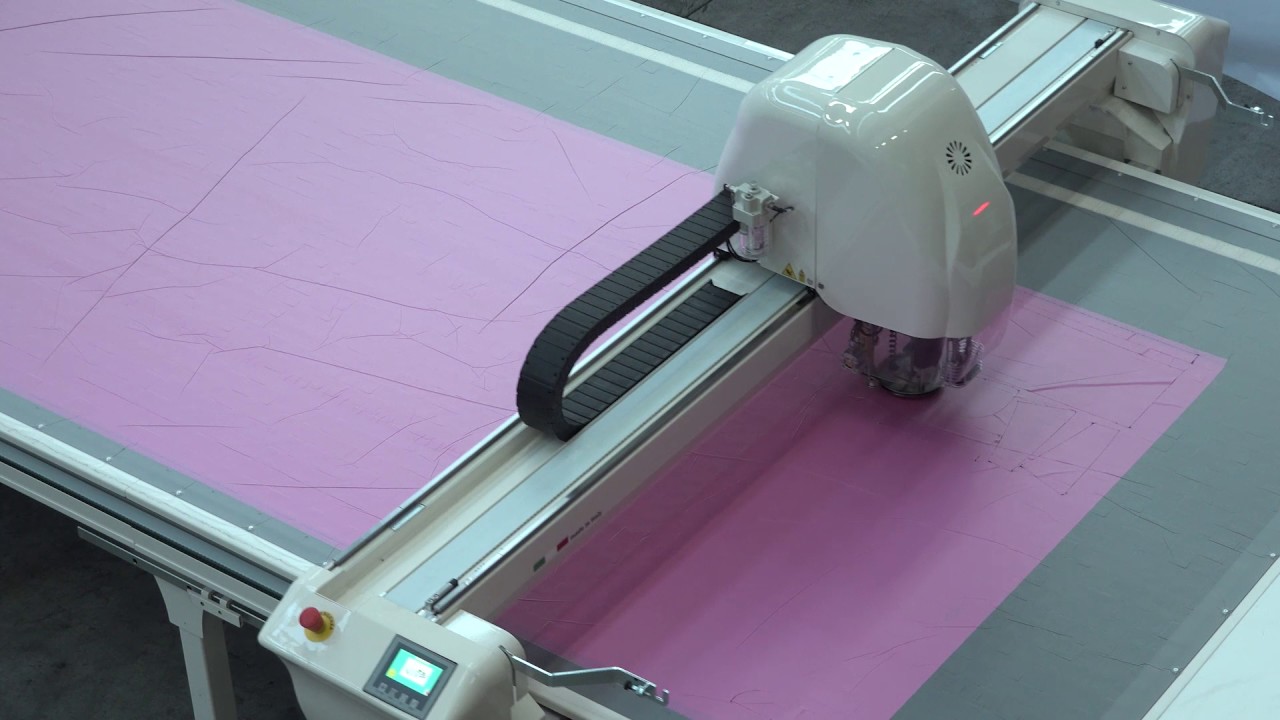

The Biliardo is a static multi-ply automatic fabric cutting machine: a fixed cutting table that cuts a tall, compressed lay of stacked fabric in a single pass, rather than one sheet at a time. You spread your material into a lay, load the CAD nesting, and the table cuts every part automatically with the Just Cut software. Three cutting-head versions cover a compressed lay of 25 mm (Biliardo 2.5), 60 mm (Biliardo 6) and 80 mm (Biliardo 8), and working areas run from 180 by 320 cm up to 220 by 520 cm.

Buyers know this type of machine by many names. The Biliardo answers searches for a multi-ply cutting machine, a multi-layer fabric cutting machine, an automatic cloth cutting machine, a CNC fabric cutting machine, a garment cutting machine and a static cutting table. If you searched for any of those, this is the machine that does the work.

Built for plants that cut stacked fabric in volume

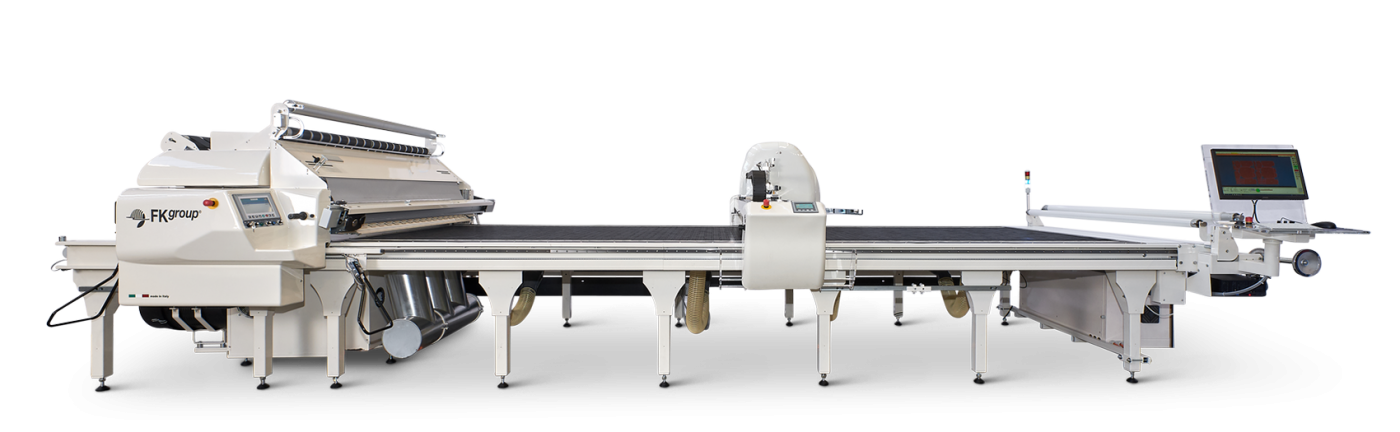

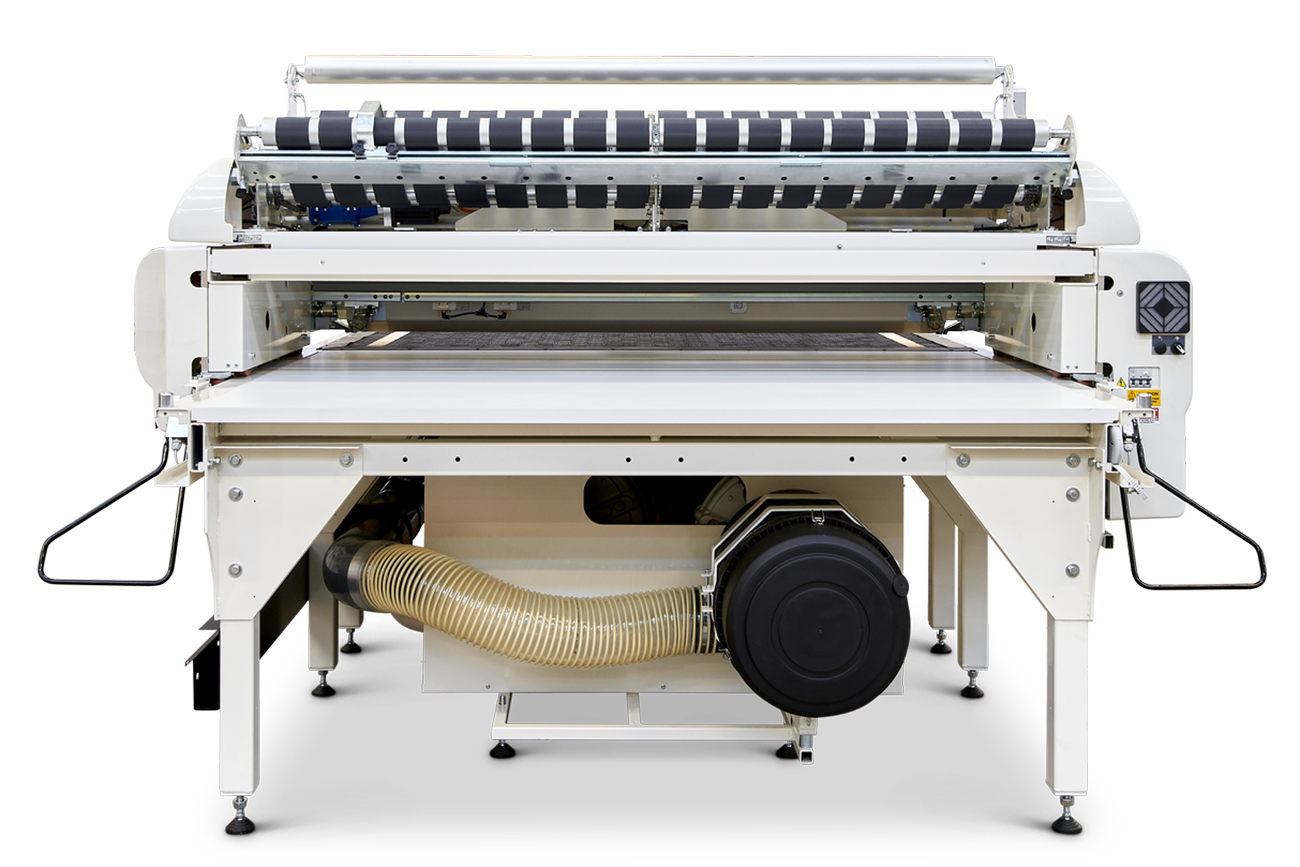

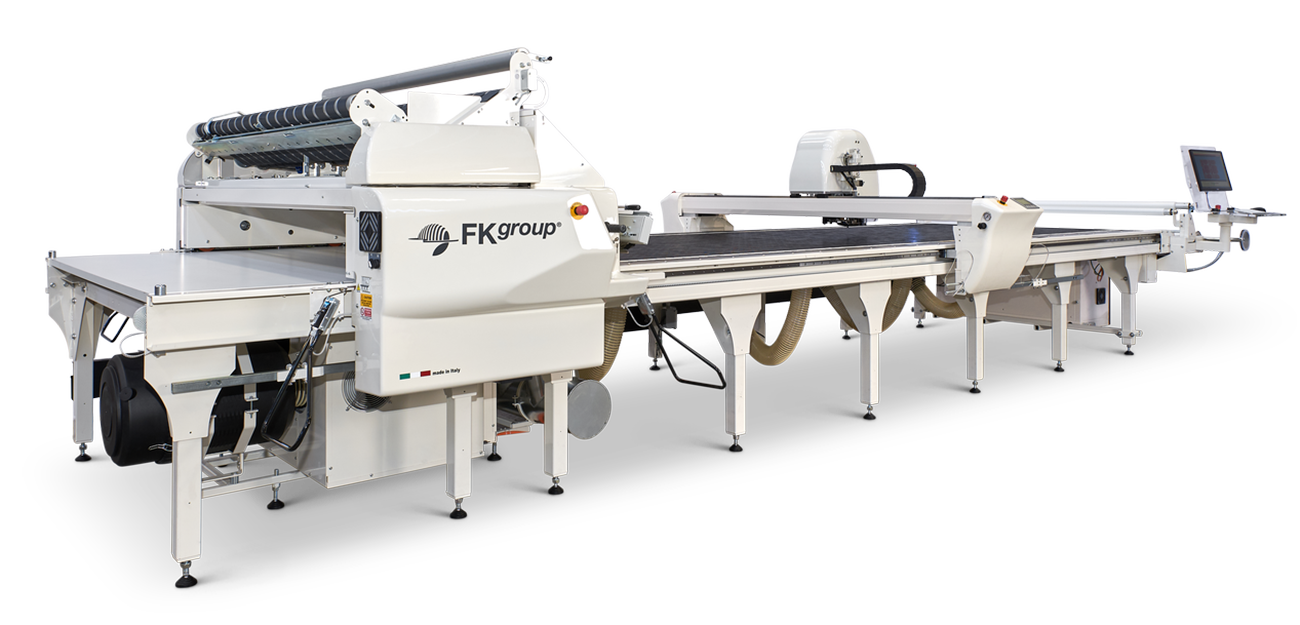

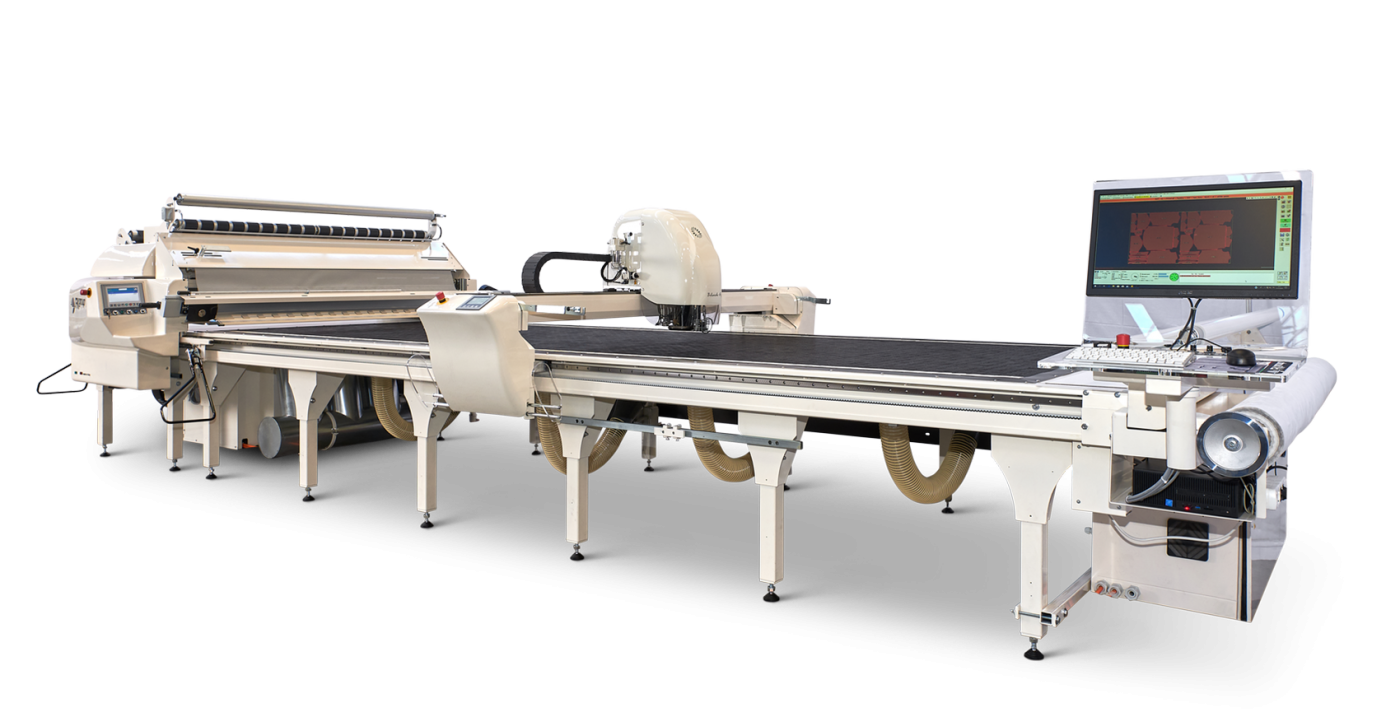

Where a single-ply conveyor cutter suits small batches of varied material, the Biliardo is built for plants that spread fabric into a lay and need many identical parts from one cut. Cutting up to 80 mm of stacked plies at once multiplies the parts you get per pass, which is why it fits apparel cutting rooms, upholstery and furniture makers, automotive trim suppliers and technical-textile producers running real volume. It is a static unit, so the lay stays still on a fixed table while the head cuts, and it pairs with a class 590 spreading machine to form a complete spread-and-cut line.

Ecopower intelligent vacuum management holds the lay down firmly but only pulls suction where the knife is working, so average power draw stays between 5.6 and 6.5 kW on a 12 kW machine. It is Industry 4.0 ready with remote web assistance, so support reaches the machine without an engineer always on site.

Multi-ply cutting vs single-ply and manual cutting

Cutting rooms move to a multi-ply table for output. Cutting one sheet at a time, by hand or on a single-ply machine, limits how many parts you finish in a shift. The Biliardo cuts a whole stacked lay in one pass, so output scales with the height of the lay rather than the speed of one operator. It also cuts every ply to the same shape from the CAD file, which removes hand marker-making and the worn-die problem, and one table replaces a shelf of dies because there is no tooling to change between parts.

• Output: cuts a stacked lay up to 80 mm in one pass, instead of one sheet at a time.
• Repeatable accuracy: every ply is cut to the same shape, straight from the CAD nesting.
• No marker-making: it cuts directly from your nesting files, with no hand marking.
• No die tooling: one table cuts any part and size, so there are no dies to cut or store.
• Lower running cost: Ecopower vacuum keeps power draw down versus constant full-table suction.

Industries that use the Biliardo

One table serves almost any plant that spreads and cuts fabric in volume. FK Group lists the Biliardo across:

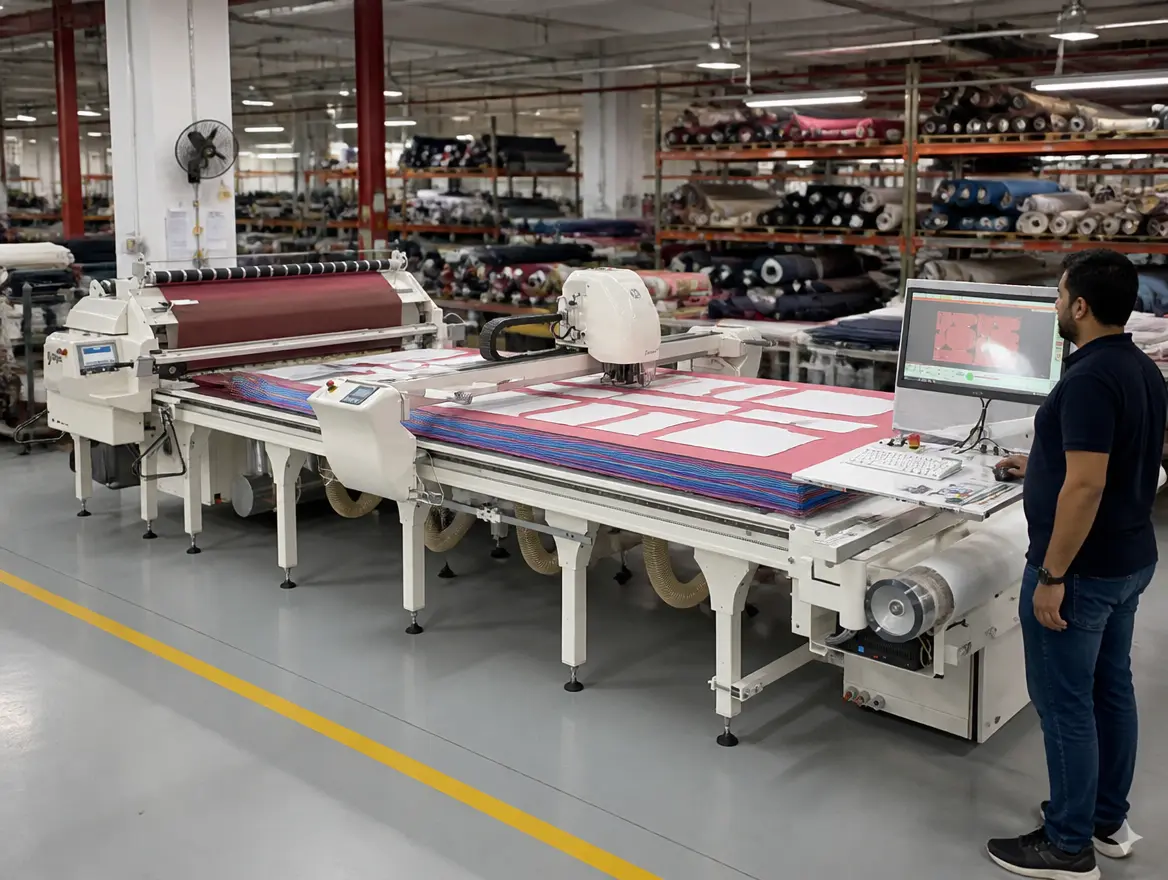

• Apparel, clothing and fashion accessories: multi-ply cutting of garment spreads, paired with a class 590 spreader.

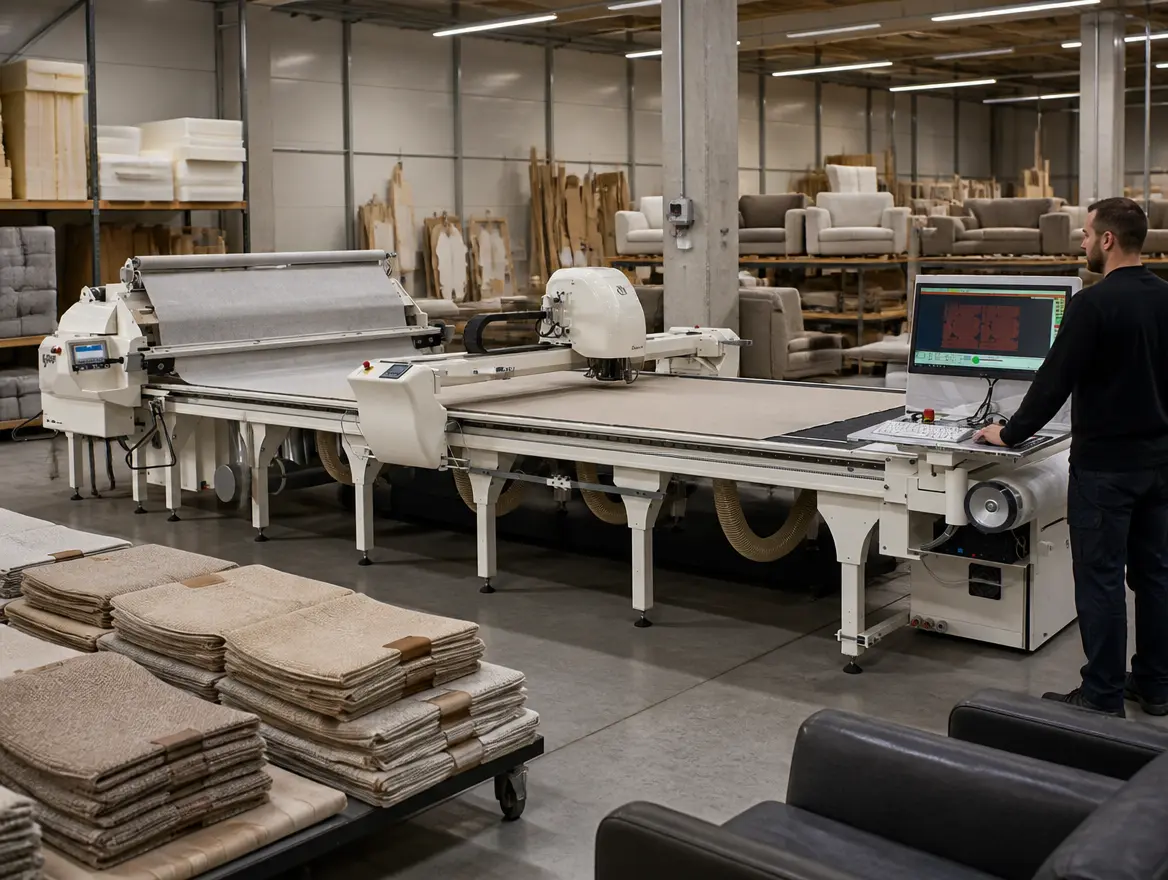

• Upholstery, furniture and home textiles: sofa, seating and home-furnishing covers in stacked plies.

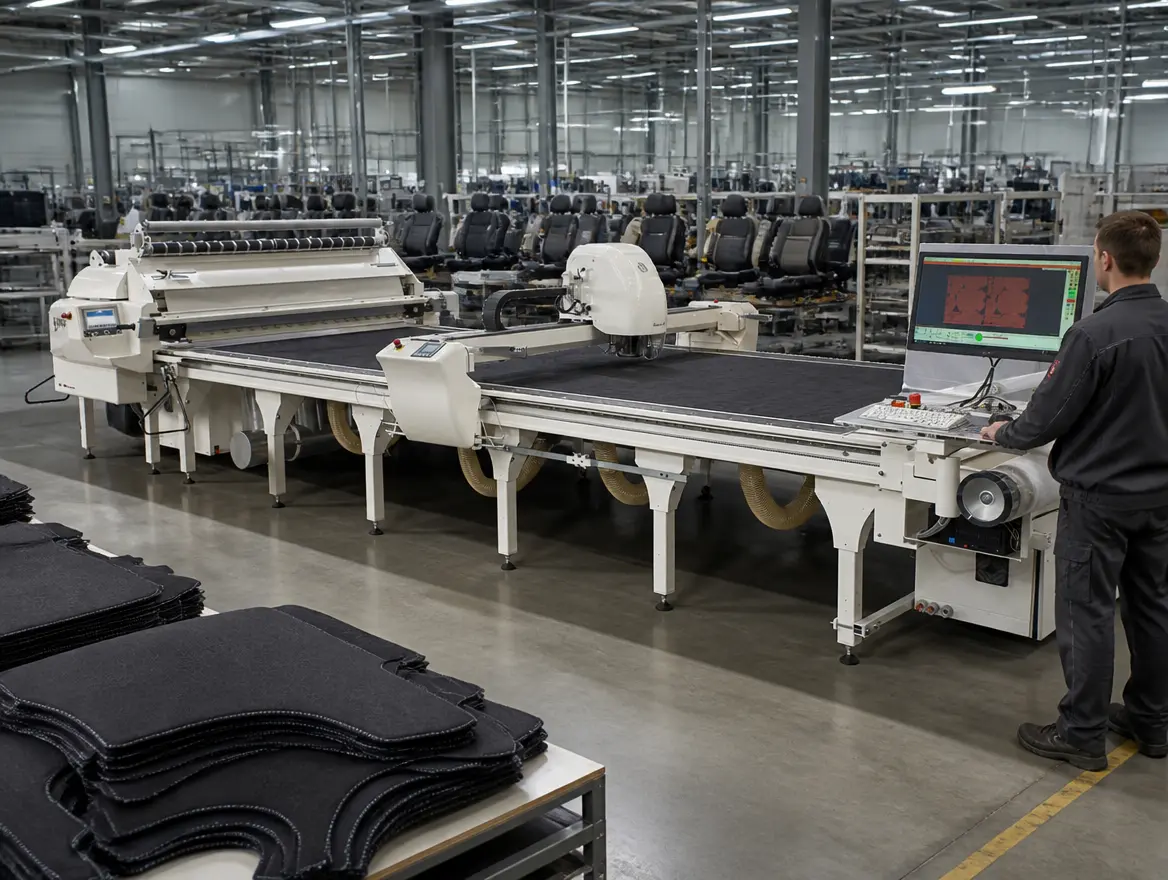

• Automotive and transport: seat covers, interior trim and insulation.

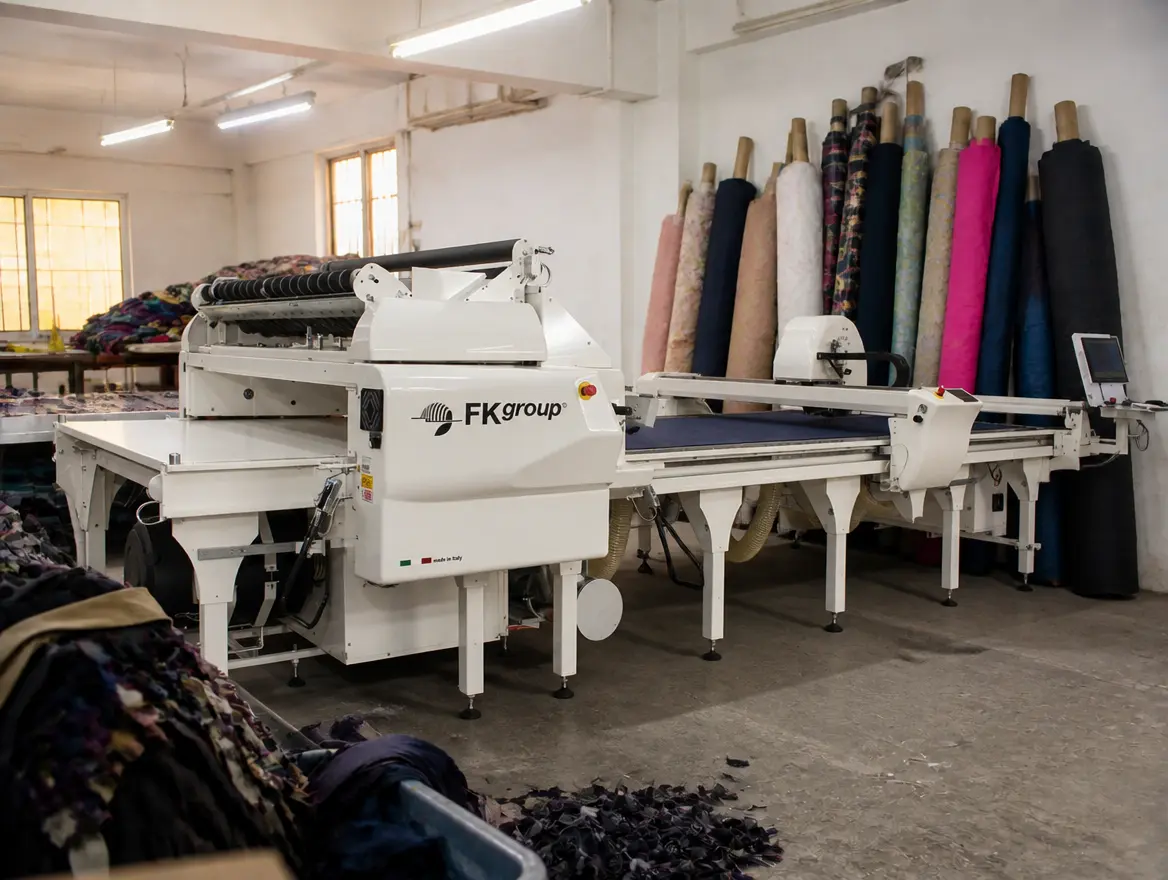

• Composites and technical textiles: carbon fibre, technical fabric and industrial textile components.
• Aeronautical, aerospace and nautical: reinforcement and cover material for high-spec parts.
• Medical non-woven fabrics: textile components for medical and hygiene products.

Why source the Biliardo through Magnum Resources

Magnum Resources is the authorised India distributor for FK Group, whose Italian factory has built automatic cutters since 1961. Picking the right cutting head and working area is the part most buyers get wrong, so we do it with the factory before anything is ordered, based on your lay heights and the parts you cut. We then handle the import and customs, install the table, and train your team on Just Cut. When you need spares or service later, you call us, not an overseas help desk.

If you are evaluating a multi-ply automatic fabric cutting machine for an apparel, upholstery, automotive or technical-textile operation in India, talk to our engineers about your materials, lay heights and floor space. We will give you accurate specs, an honest lead time and a configured quotation.
