LIDEM Extender Fabric Spreading & Cutting Machine

What the LIDEM Extender does

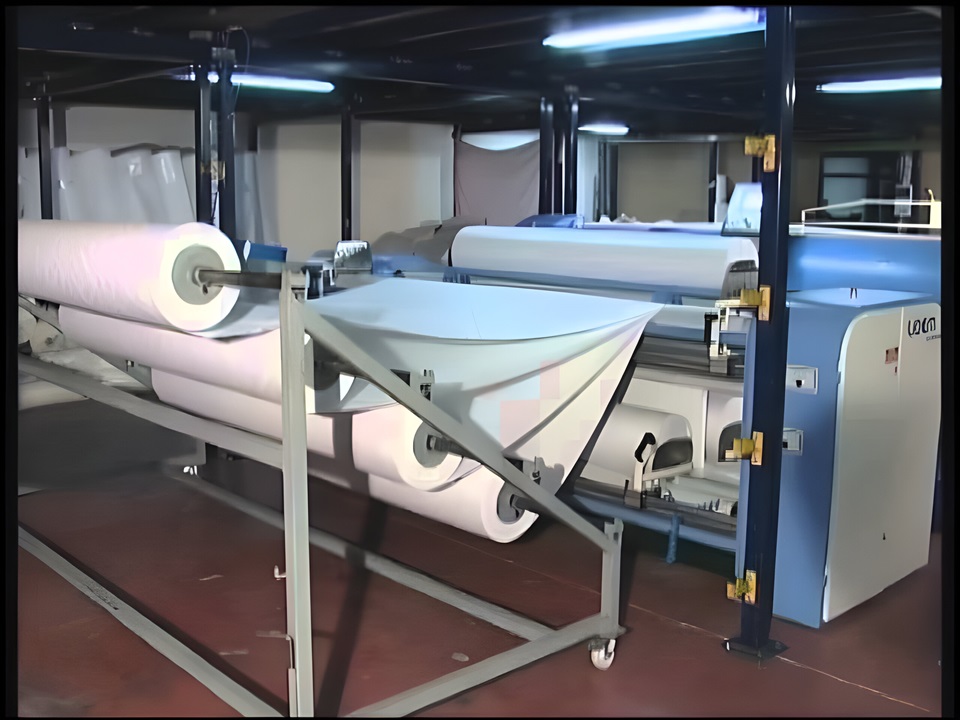

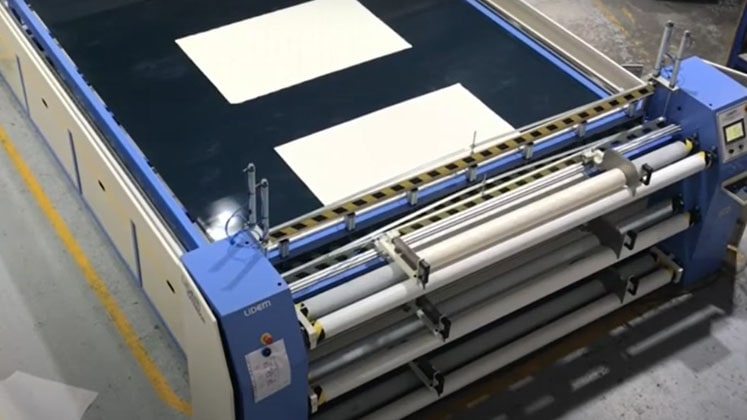

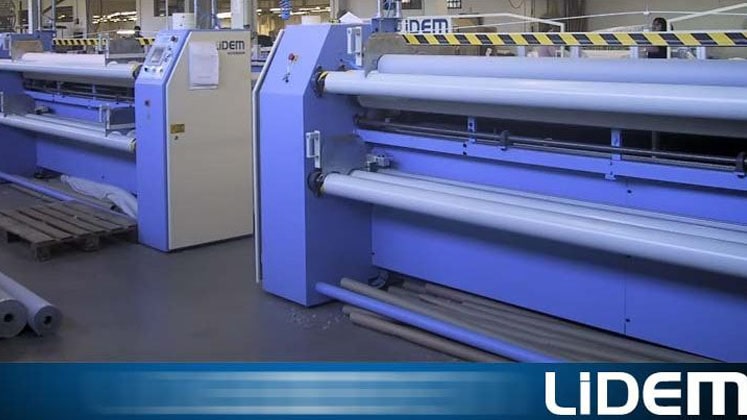

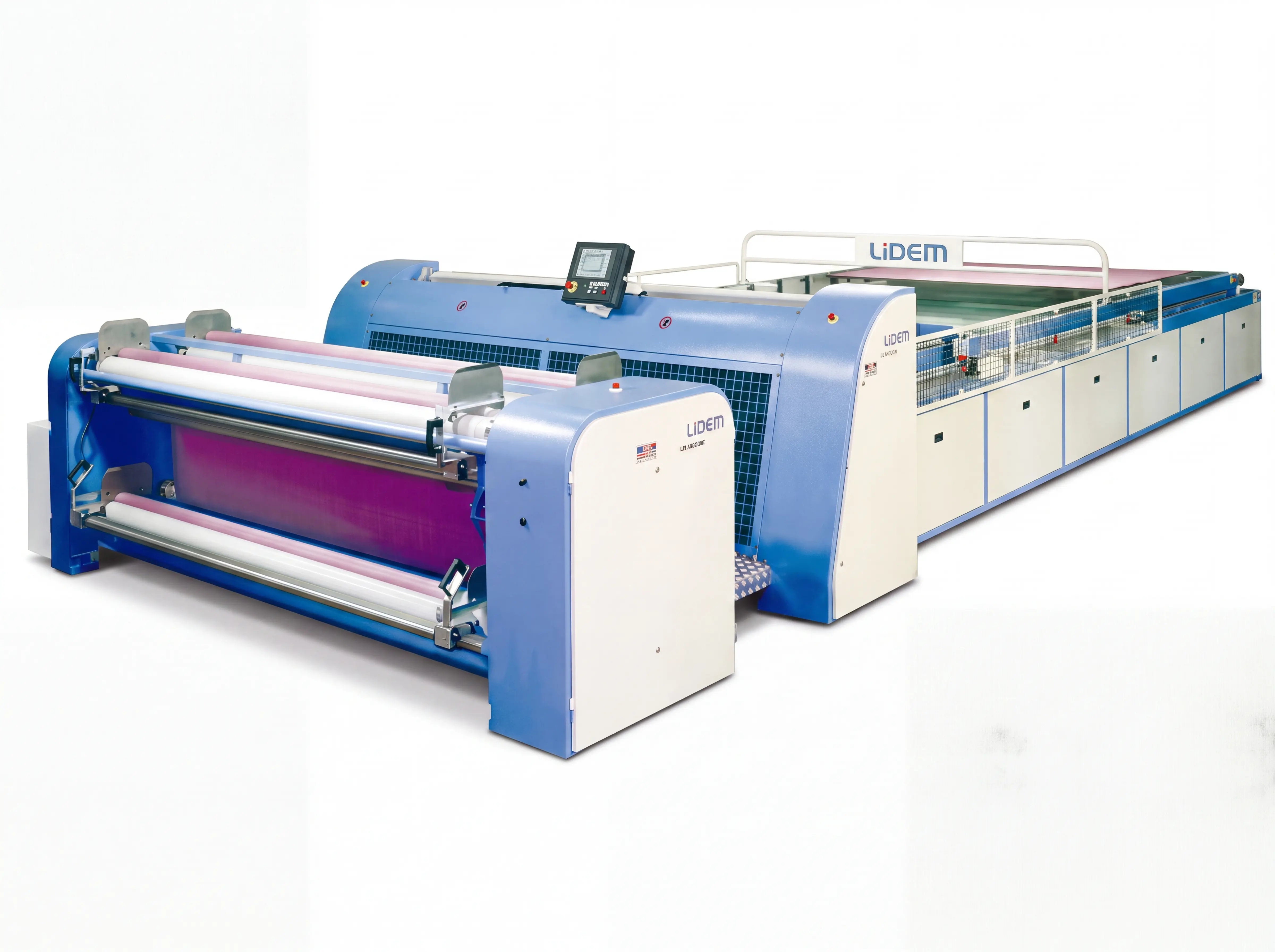

The LIDEM Extender is a fabric spreading and cutting machine: it unwinds a roll, spreads the fabric flat along a table, cuts it to length and stacks the panels, all in one cycle. Its defining feature is the extending action, where the roll stays stationary and a set of grippers draws the fabric along the lay at a controlled tension. That keeps even inelastic fabric flat and square. It works from rolls or coils up to Ø1,800 mm in diameter, spreads up to 3,200 mm wide and 15 m long, and the lift table stacks finished panels up to 260 mm thick.

Buyers know this machine by many names. The Extender answers searches for a fabric spreading and cutting machine, a fabric cutting and stacking machine, a cut-to-length fabric machine, a textile spreader, a fabric extending machine and a roll spreading machine. If you searched for any of those, this is the machine that does the work.

Built for textile plants that spread and cut to length

The Extender is for plants that take fabric on rolls and need it laid flat and cut to panel length in volume. Bedding and mattress-cover makers, hospitality-linen and upholstery producers, curtain and home-textile makers, and technical, medical and digital-print textile converters all use it to turn a roll into a clean stack of cut panels without hand measuring or hand cutting. The range scales from the B-series for small productions up to the four-roll GDT4, which feeds up to four rolls simultaneously or independently with automatic threading.

Touch-screen control and motorised unwinding make the machine straightforward to run, and electronic tension control protects the fabric so panels come off the stack to the same length and square edge every time.

Automatic extending vs manual spreading and hand cutting

Spreading and cutting fabric by hand is slow and uneven. Pulling fabric off a roll by hand stretches it, lengths drift, and a hand-cut edge is rarely square, so panels come out inconsistent and waste climbs. The Extender lays each length at a controlled tension with the roll held still, cuts to a set length automatically, and stacks the panels ready for the next process. One operator at a touch screen replaces several hands on the table.

• Consistent length: automatic cut-to-length gives every panel the same size.
• No stretch: grippers draw the fabric while the roll stays still, so inelastic fabric stays true.
• Ready to stack: the lift table stacks panels up to 260 mm thick straight off the machine.
• Scales with you: from the B-series for small runs to the four-roll GDT4 for volume.
• Less waste: flat, square laying and precise cutting trim the offcuts hand work leaves.

Industries that use the LIDEM Extender

Any plant that spreads fabric and cuts it to length is a fit. LIDEM lists the Extender across:

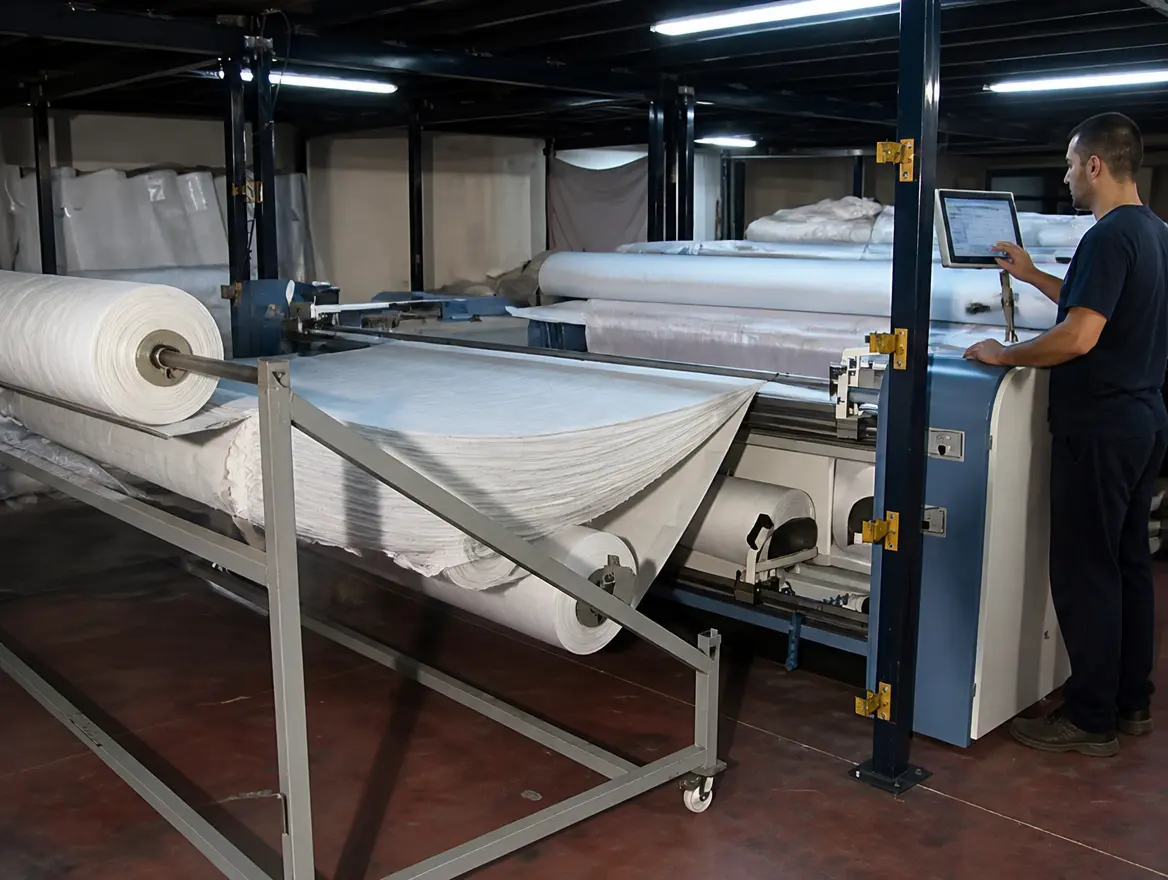

• Bedding and home textiles: mattress covers, quilts, sheeting and furnishing fabric.

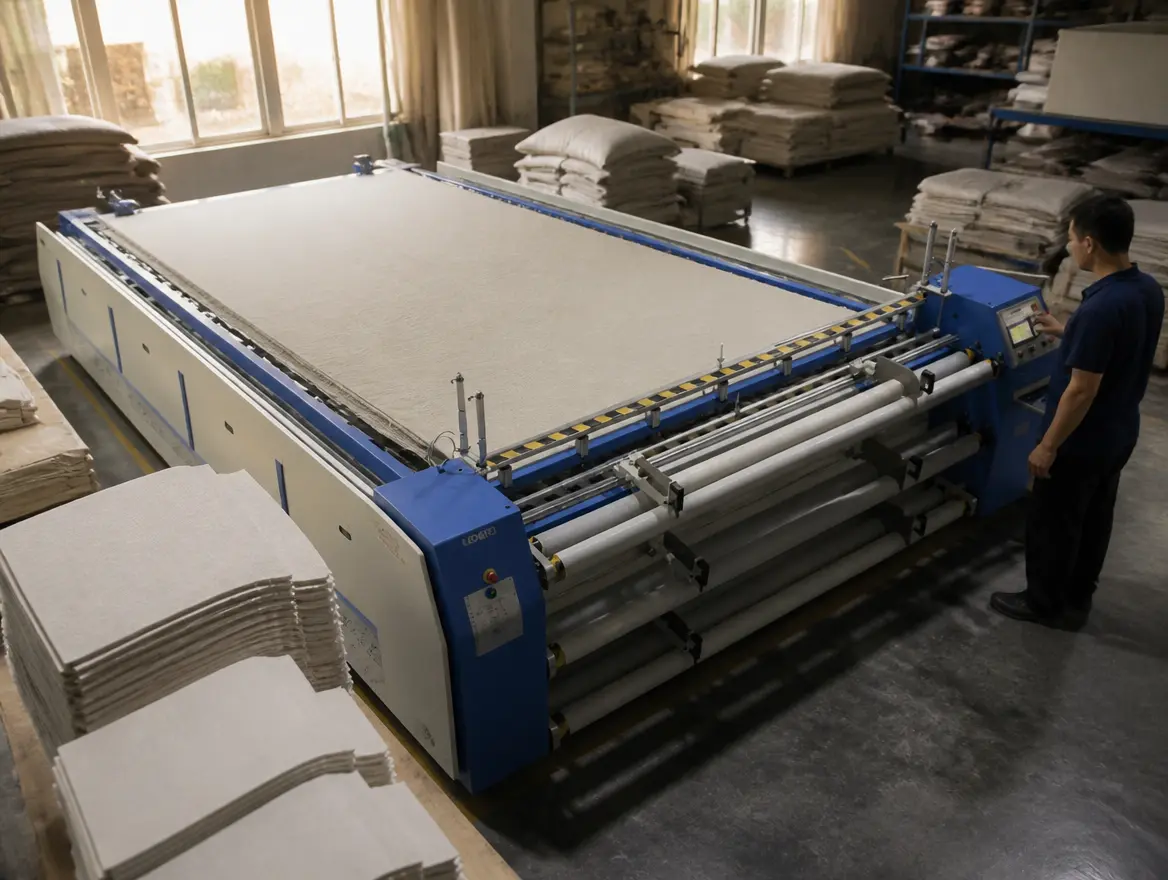

• Hospitality and kitchen linen: table, bed and kitchen textiles in volume.
• Upholstery and curtains: sofa, seating and curtain fabric cut to panel length.
• Technical and aeronautical fabrics: coated and technical material laid flat and square.

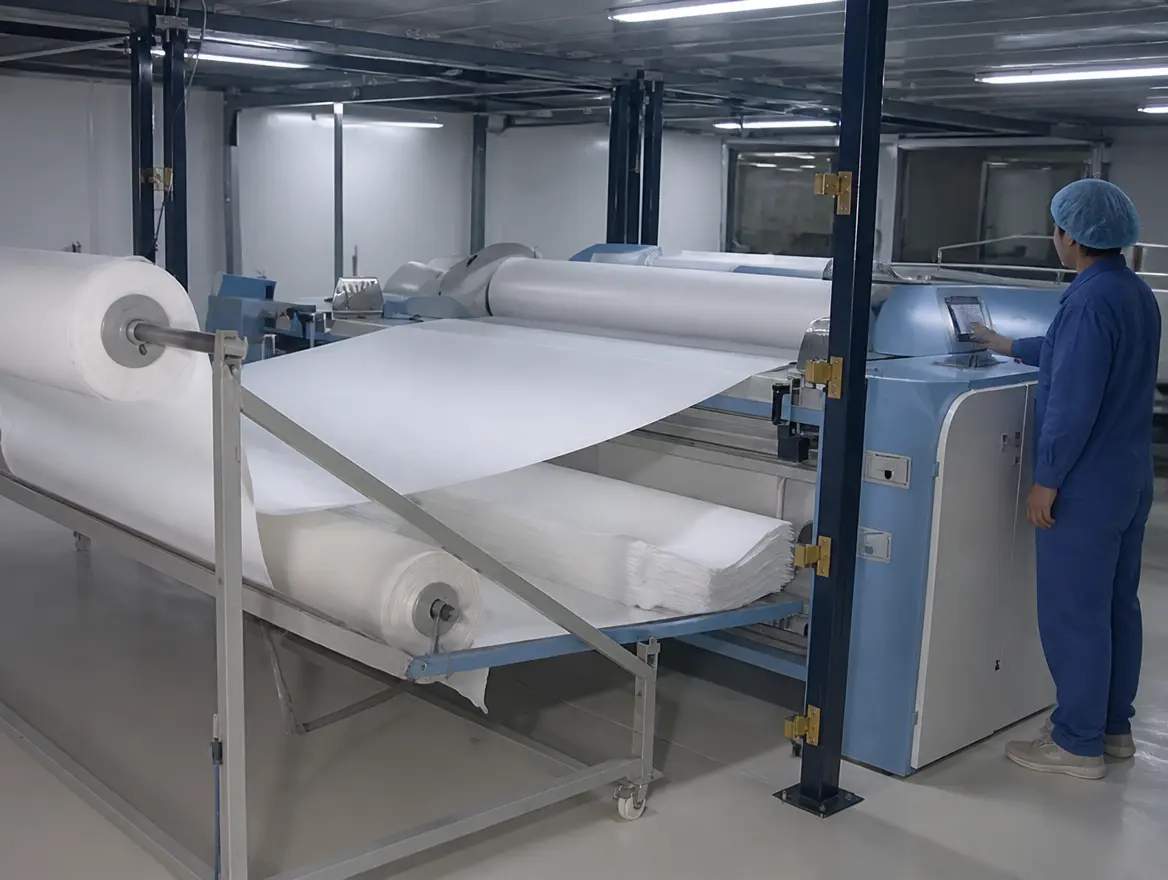

• Medical and disposable textiles: disposable hospital clothing and non-woven panels.

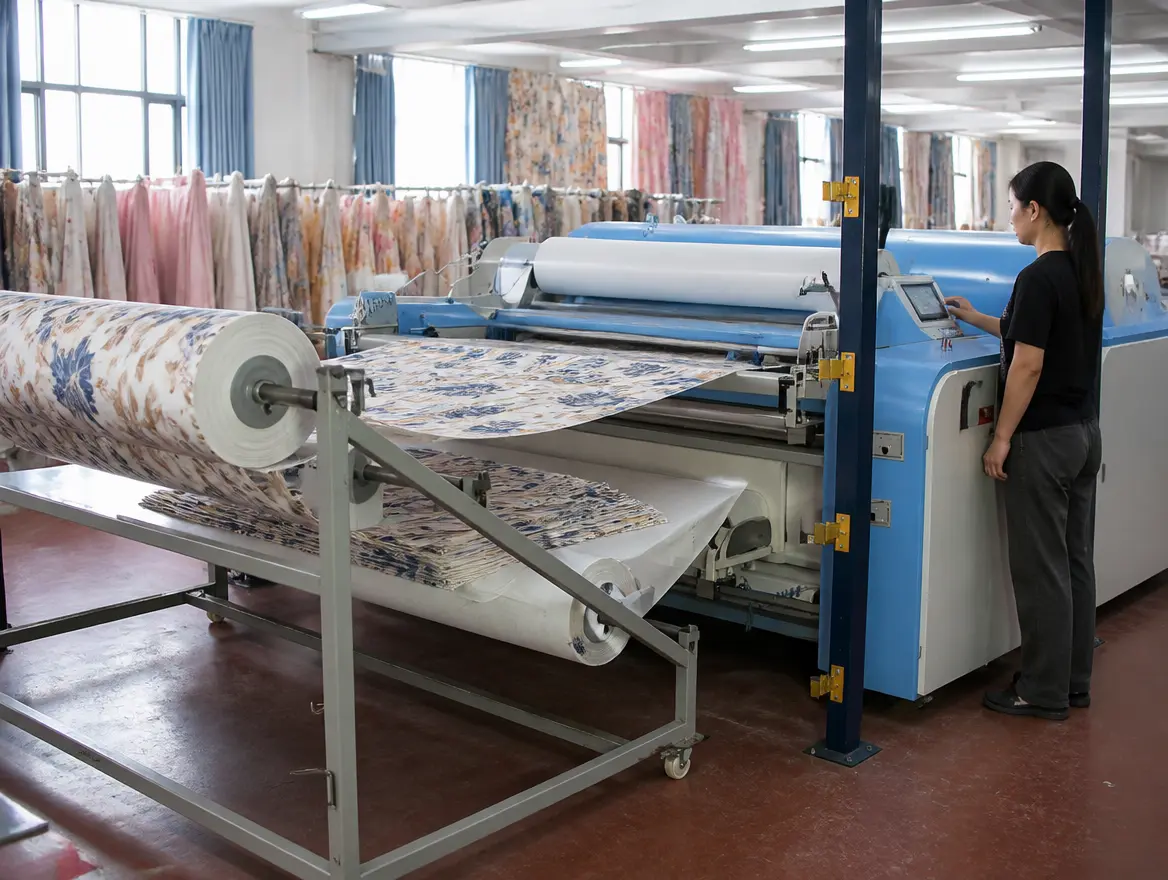

• Fashion and digital printing: printed and fashion fabric cut to repeat length.

Why source the LIDEM Extender through Magnum Resources

Magnum Resources holds the LIDEM distribution for India and deals with the Spanish factory directly. Buying through us means the sizing, the import, the installation and the operator training all sit with one team. And when you need spares or a service visit down the line, you call the same people who sold you the machine, not a distant agent.

If you are evaluating a fabric spreading and cutting machine for a bedding, home-textile, technical or print operation in India, talk to our engineers about your fabric, roll sizes and panel lengths. We will give you accurate specs, an honest lead time and a configured quotation.
