Ultracut High-Speed CNC Cutting Machine

What the Ultracut cuts

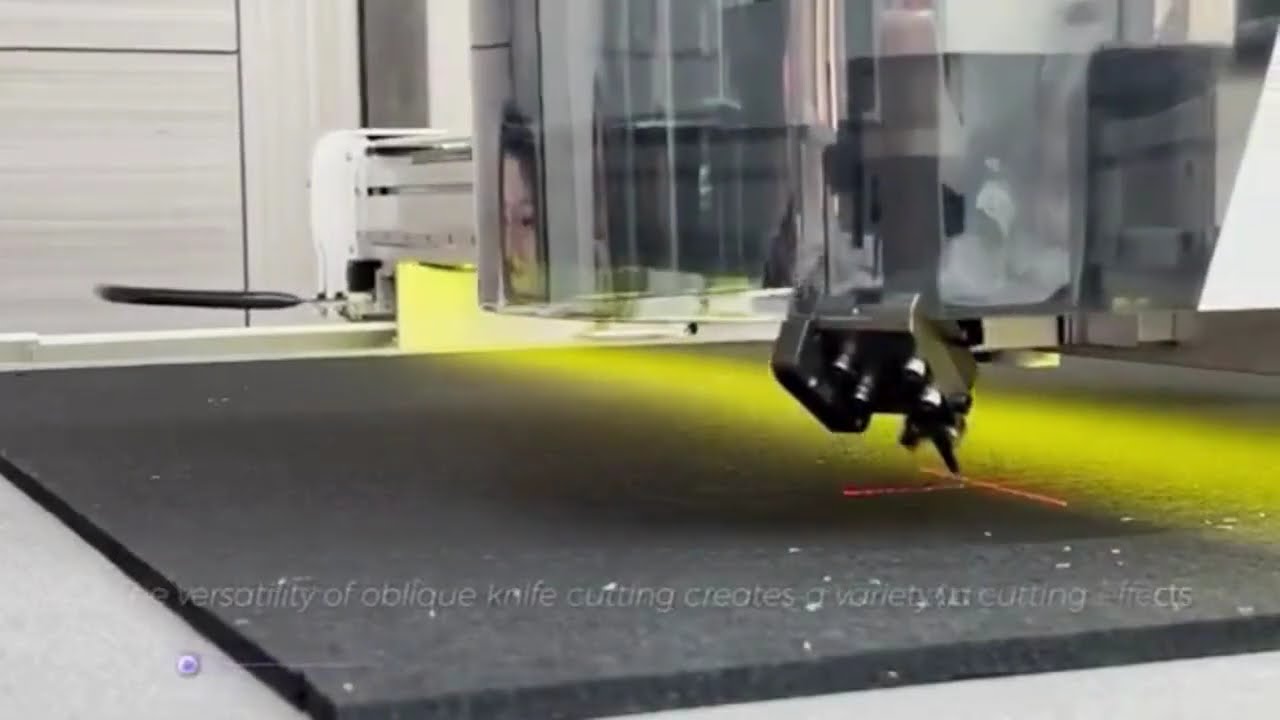

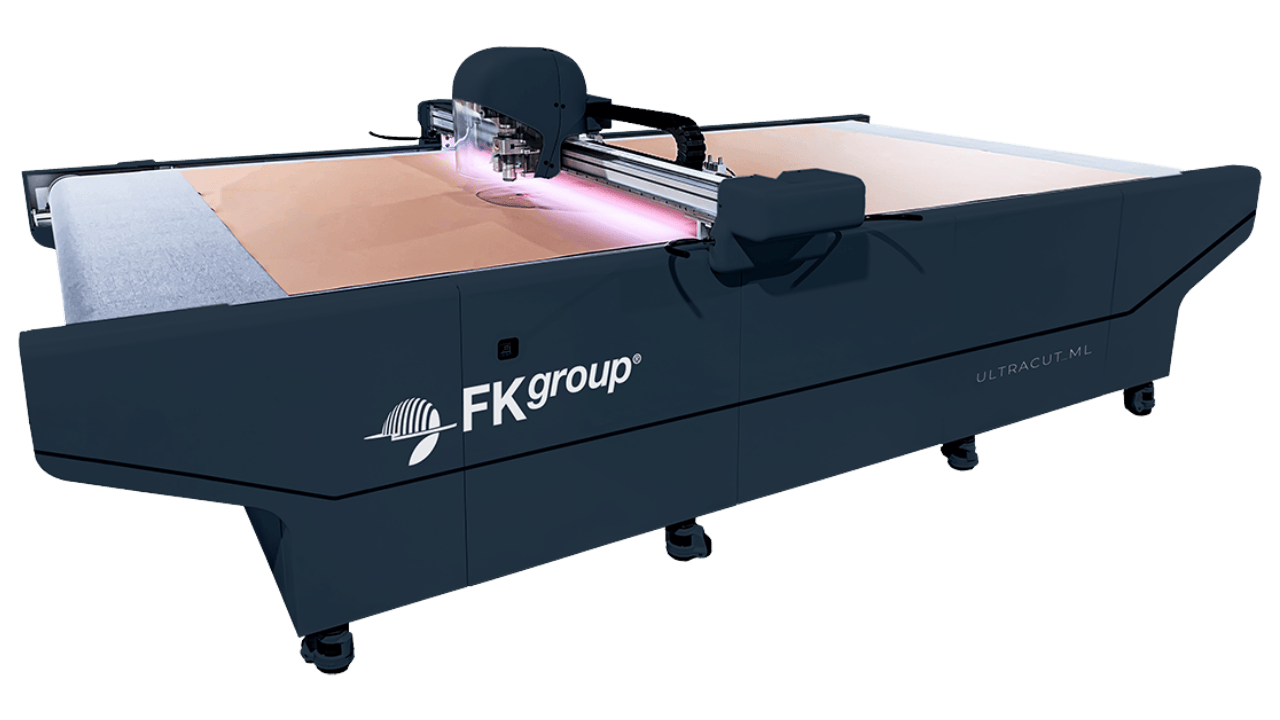

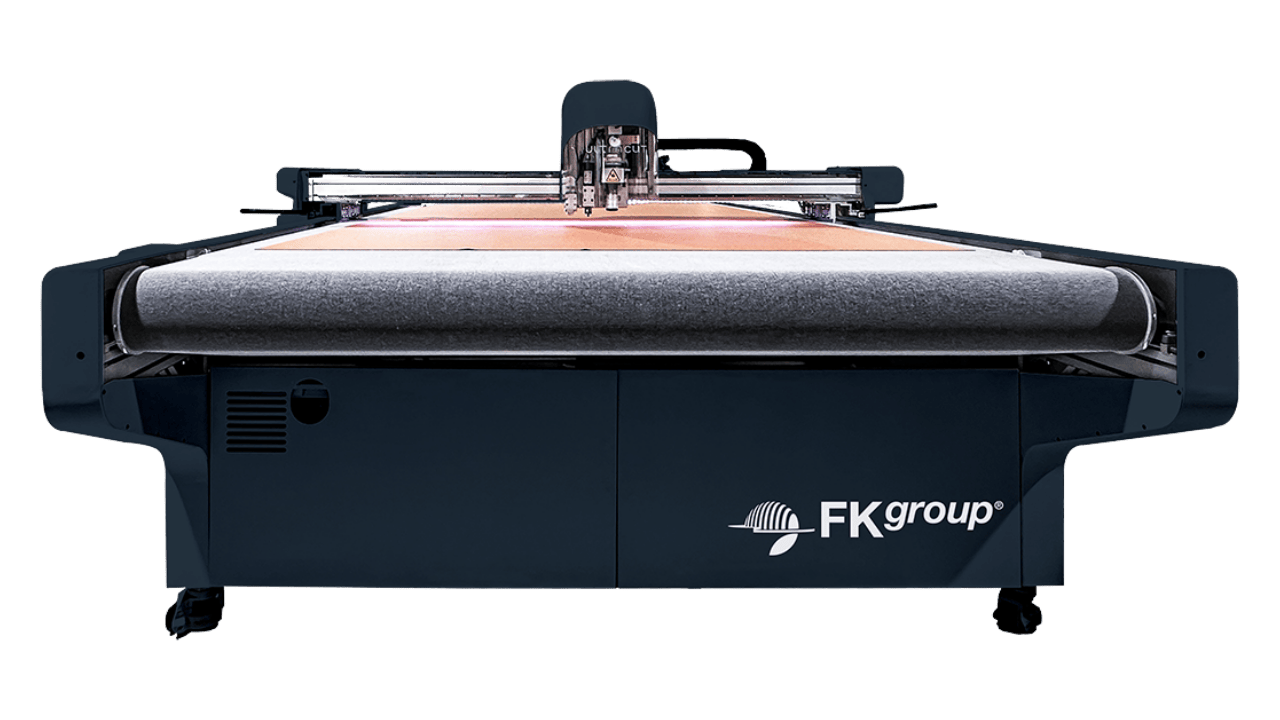

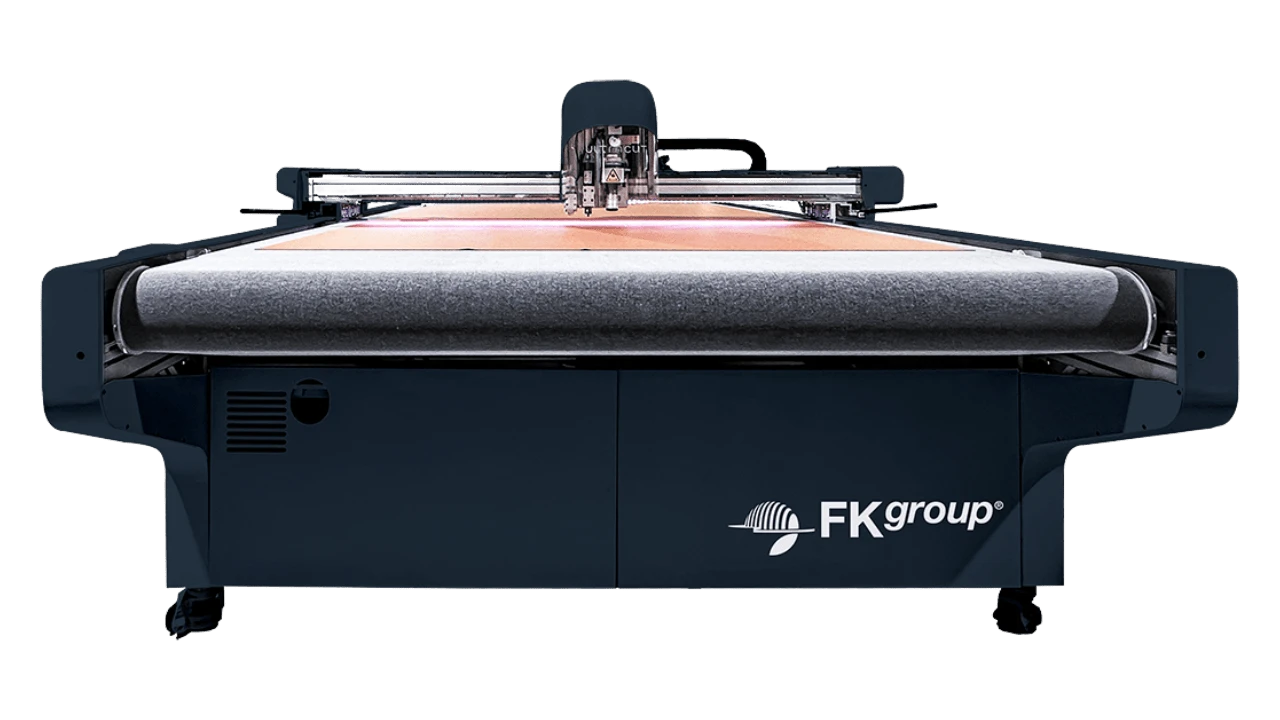

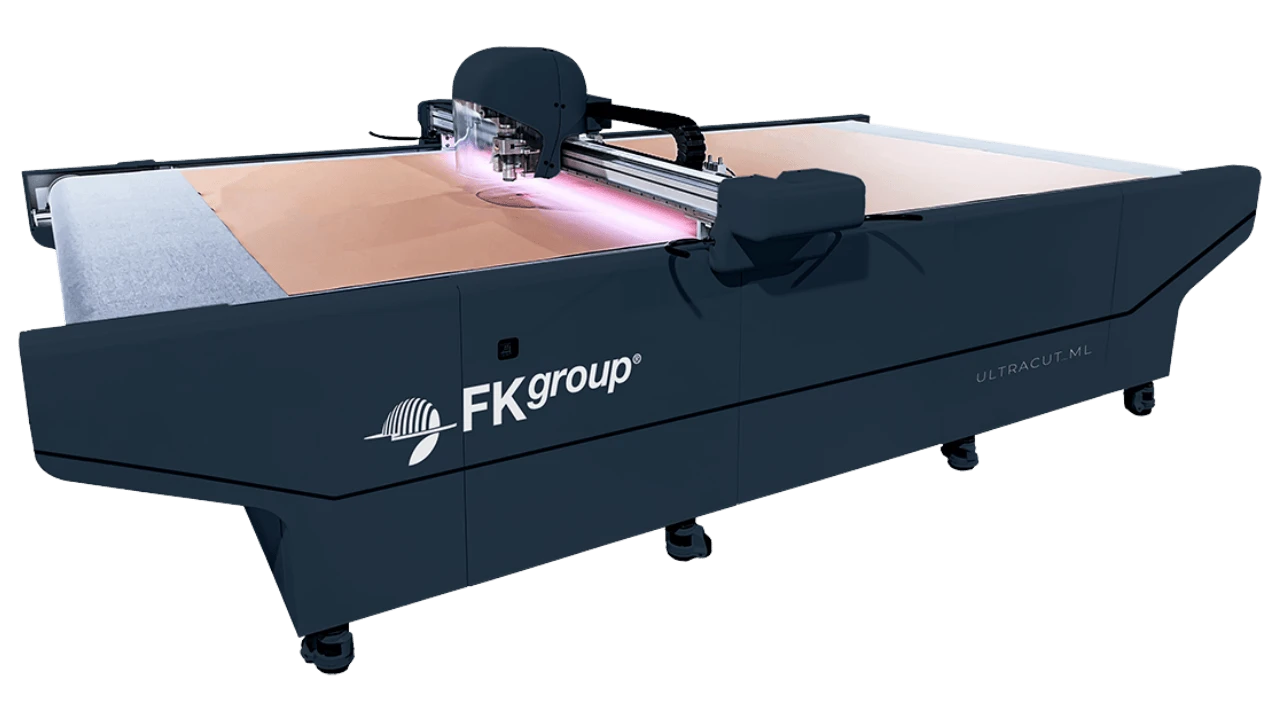

The Ultracut is a high-speed, high-precision CNC cutting machine with a single-ply flatbed and a swappable tool head. It cuts to an accuracy of ±0.05 mm at speeds up to 132 m/min, with an oscillating blade running up to 18,000 rpm and a maximum cutting thickness of 20 mm. Because the head accepts an oscillating knife, drag knife, rotary disc, punch tools, a pen, a kiss-cut tool and an inkjet printing head, one table cuts, scores, perforates and marks parts that would otherwise need several machines or a steel die.

Buyers know this type of machine by many names. The Ultracut answers searches for a CNC cutting machine, a digital cutting machine, an automatic leather cutting machine, an oscillating knife cutter, a multi-tool cutting table and a single-ply fabric cutter. If you searched for any of those, this is the machine that does the work.

Built for accuracy and tool versatility

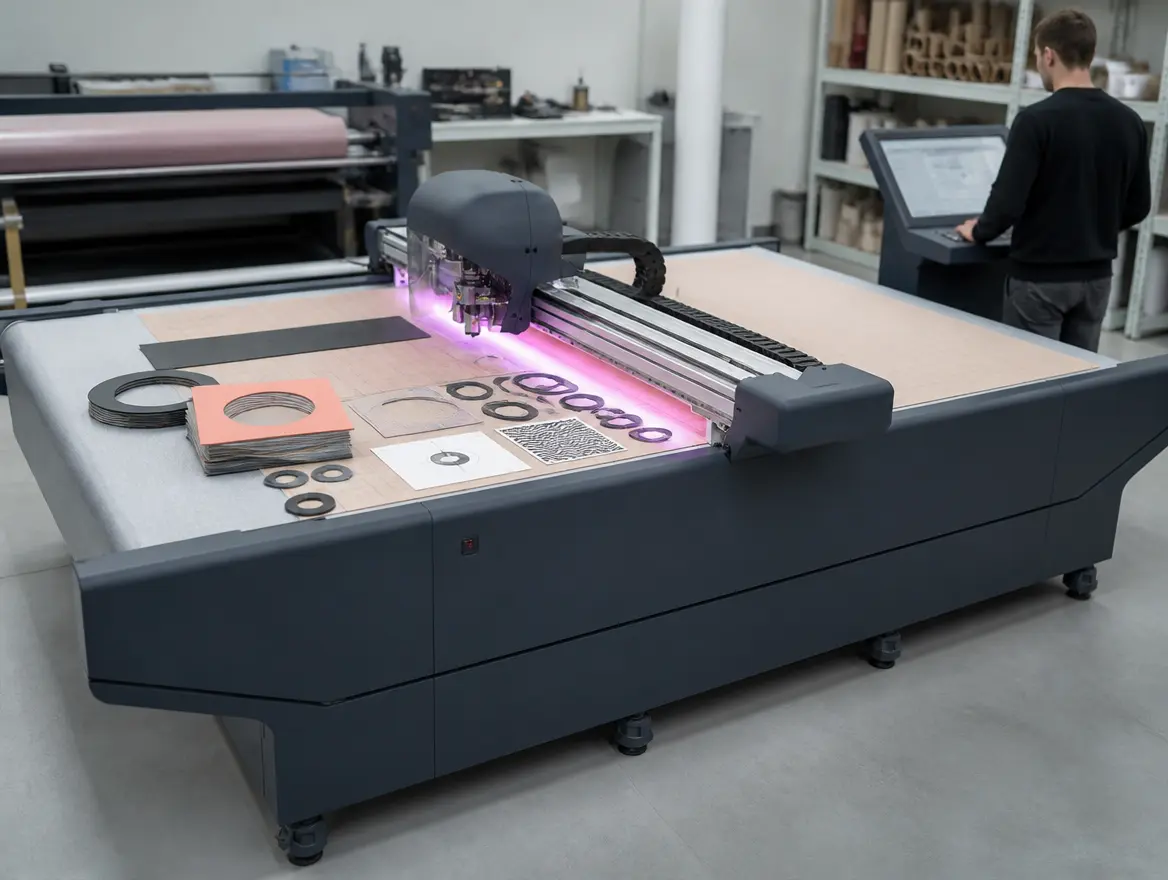

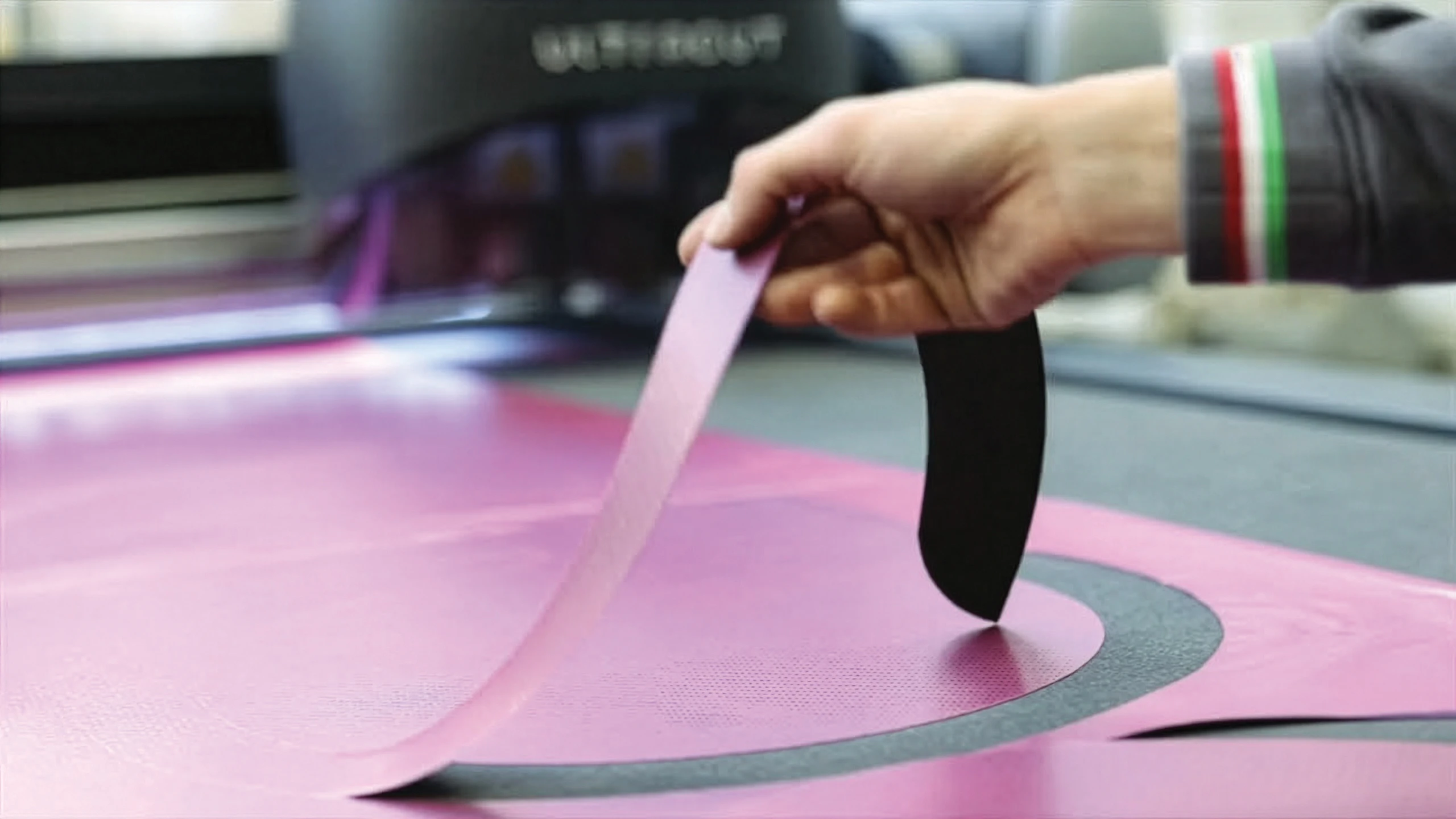

Where a conveyor cutter suits general single-ply fabric and a static multi-ply table suits stacked spreads, the Ultracut is built for plants where edge quality, tight tolerance and tool flexibility matter most. Leather and footwear makers, composite shops and technical converters use it because the same head can knife-cut a leather panel, punch a hole, kiss-cut a label and inkjet a reference mark in one pass, all to a clean, repeatable edge. Homogenous table suction holds the material down so firmly that many fabrics can be cut without an overlay plastic film, which removes a recurring consumable cost.

Smart features keep a busy room moving: barcode import drops orders straight into the queue, a dynamic LED light shows machine status at a glance, and ARC live positioning helps place parts accurately on printed or patterned material. Real-time support is available by phone and over the web.

Multi-tool digital cutting vs die and clicker-press cutting

Footwear and leather-goods makers in particular move to a digital cutter to escape steel dies. A clicker press needs a separate cutting die for every part and size, which is slow to make, costly to store and impossible to change on the fly. The Ultracut cuts straight from the CAD file, so a new part is a new file, not a new die. It cuts every piece to the same shape at ±0.05 mm, nests tightly to lift material yield, and switches tools in software rather than on the bench.

• No die tooling: cut any part from a CAD file, with no steel dies to make, change or store.
• Precision: ±0.05 mm accuracy gives clean, repeatable edges and tighter nesting.
• Speed: up to 132 m/min with 8 m/s² acceleration for high-throughput single-ply work.
• One head, many tools: knife, punch, rotary, kiss-cut, pen and inkjet on the same table.
• Lower consumables: homogenous suction lets many fabrics cut without plastic film.

Industries that use the Ultracut

One table serves almost any plant that cuts flat material to a precise shape. FK Group lists the Ultracut across:

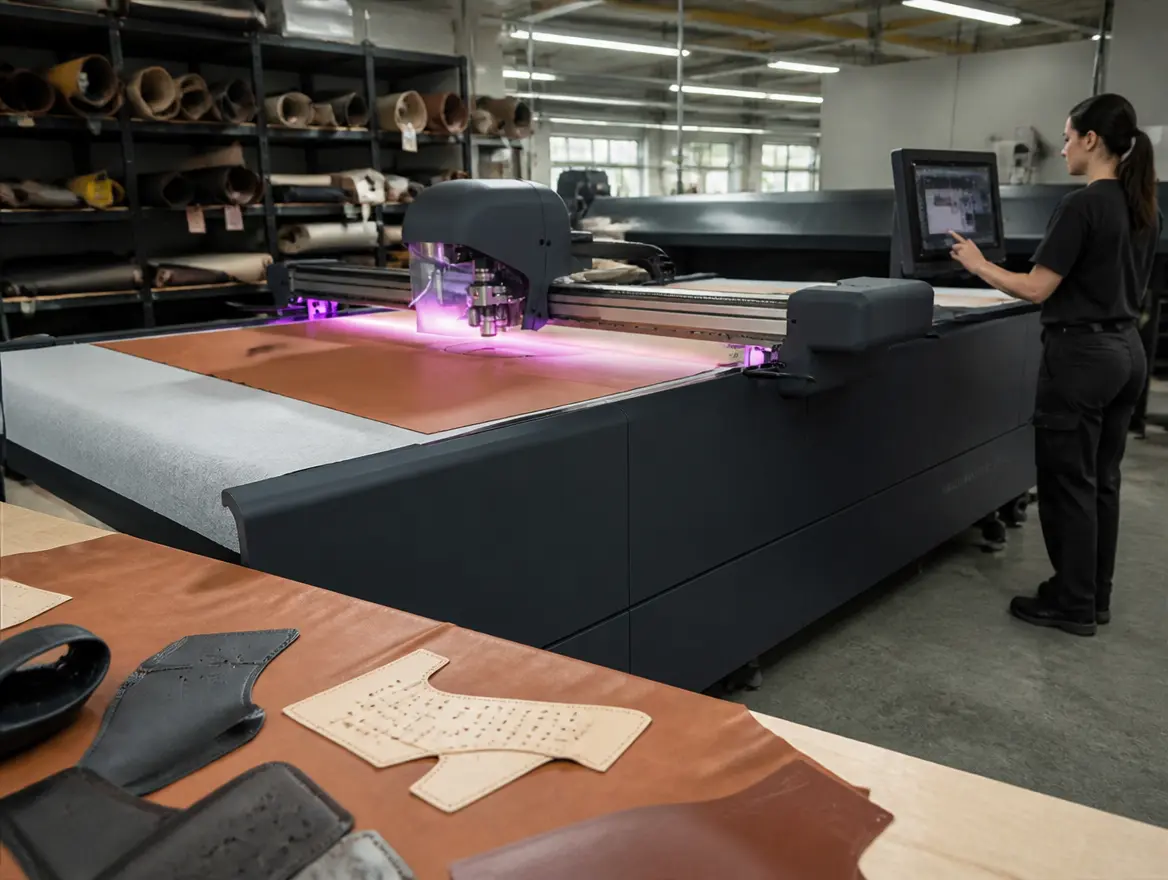

• Footwear and leather goods: leather, PU and mesh shoe components and bag parts.
• Fashion, clothing and accessories: laminated fabric and fashion-accessory parts.

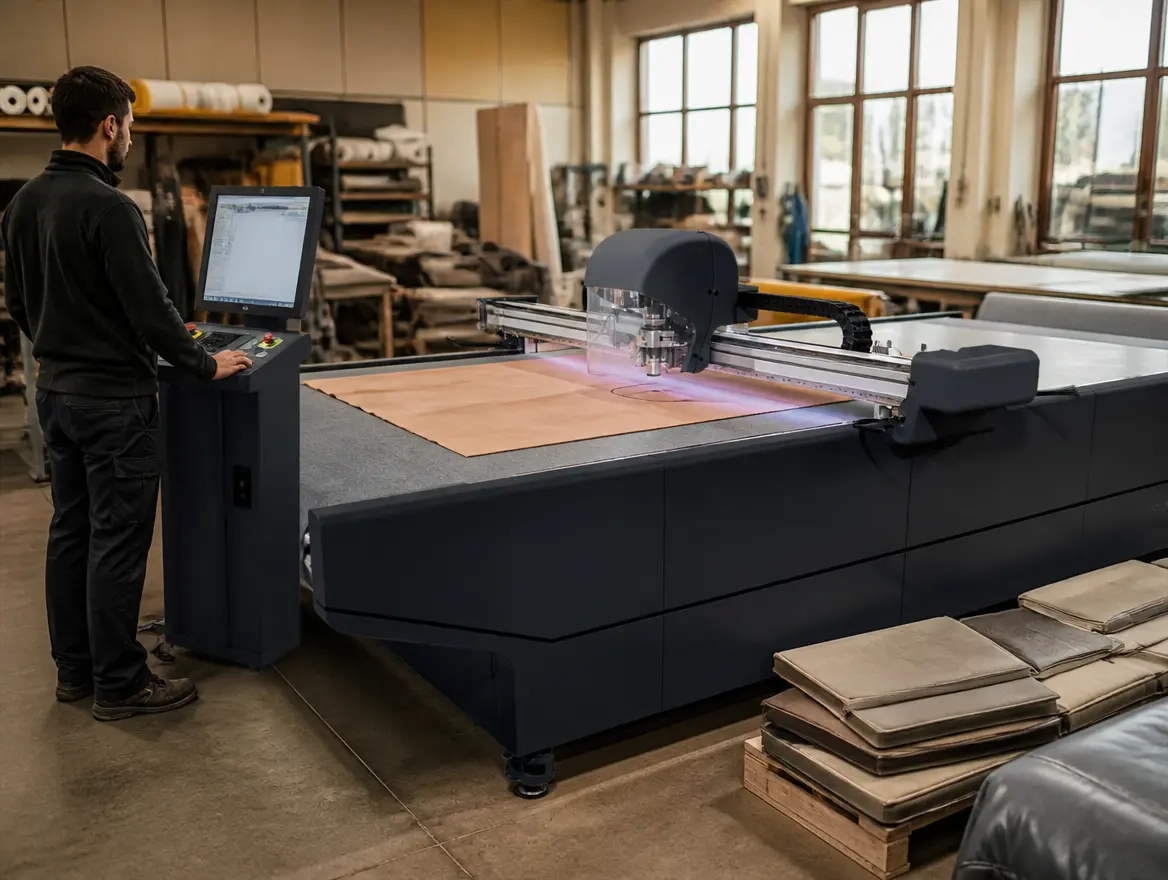

• Furniture and home textiles: PU, leather and non-woven covers and panels.

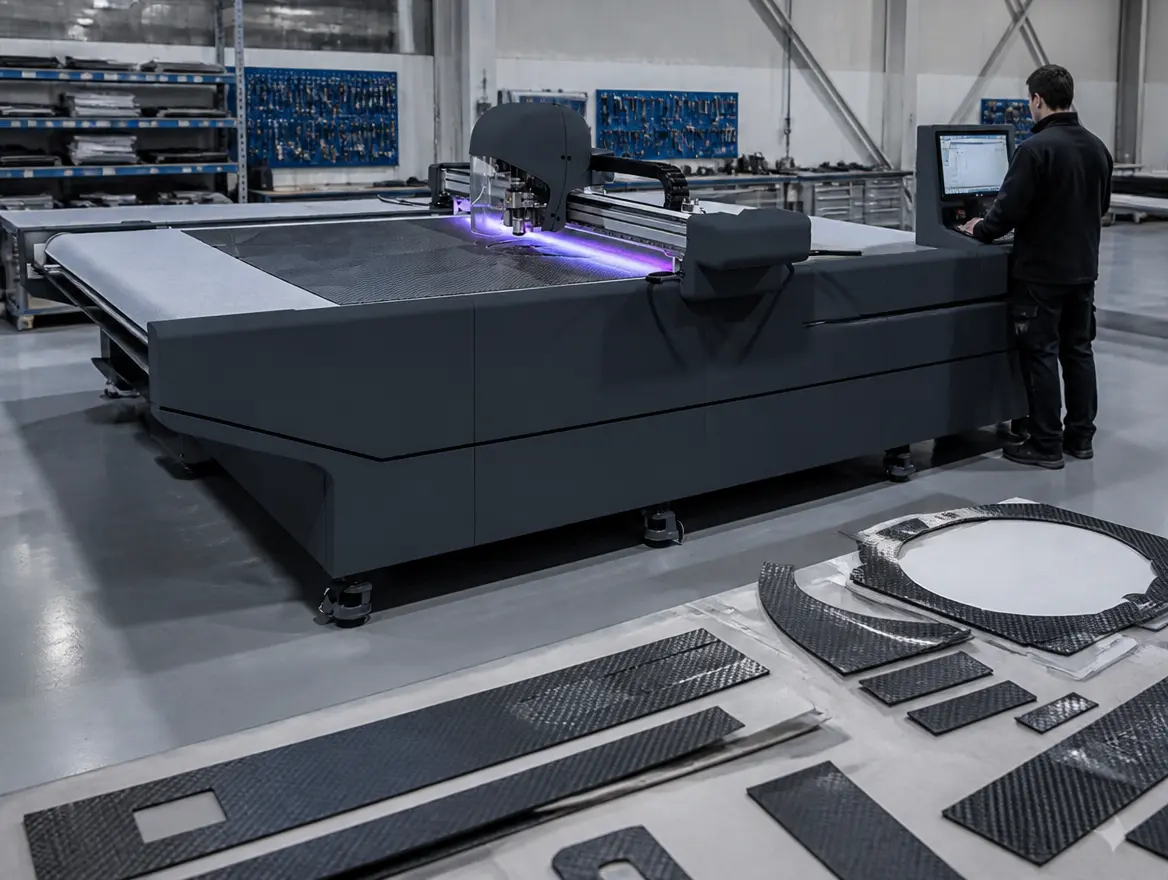

• Composites and special materials: PVC, fibreglass and carbon-fibre reinforcement.
• Automotive and transport: interior trim, seat covers and gaskets.
• Medical non-woven fabrics: textile components for medical and hygiene products.
• Aeronautical, aerospace and nautical: reinforcement and cover material for high-spec parts.

Why source the Ultracut through Magnum Resources

Magnum Resources is FK Group's authorised distributor in India, with a direct line into the Italian factory that has built automatic cutters since 1961. The Ultracut earns its keep on the tool head, so the first thing we do is match the working area and the tools, knife, punch, kiss-cut, inkjet, to the parts you actually cut. We then bring it in, clear customs, install it and train your operators on the Ultracut software. The service contact stays a local one.

If you are evaluating a CNC cutting machine or an automatic leather cutting machine for a footwear, composite or technical operation in India, talk to our engineers about your materials, tolerances and tool needs. We will give you accurate specs, an honest lead time and a configured quotation.
